SVEX-610-2MIR30X-ZN Explosion Proof Integrated Camera
Availability:
Out of stock
- ATEX, IECEx Approved;
- Applicable for Gas Zone 1, Zone 2, (Class II A, IIB, IIC, T1-T6 group) Dust Zone 21, 22.
- Certified for the latest standards IEC/EN60079 (2014)
- Stainless steel 304 or 316L enclosure
- Surface optional electro-polished or painting
- Weatherproof IP68 (1.2m/45min)
This is a special order item. Allow 4-6 weeks for delivery.

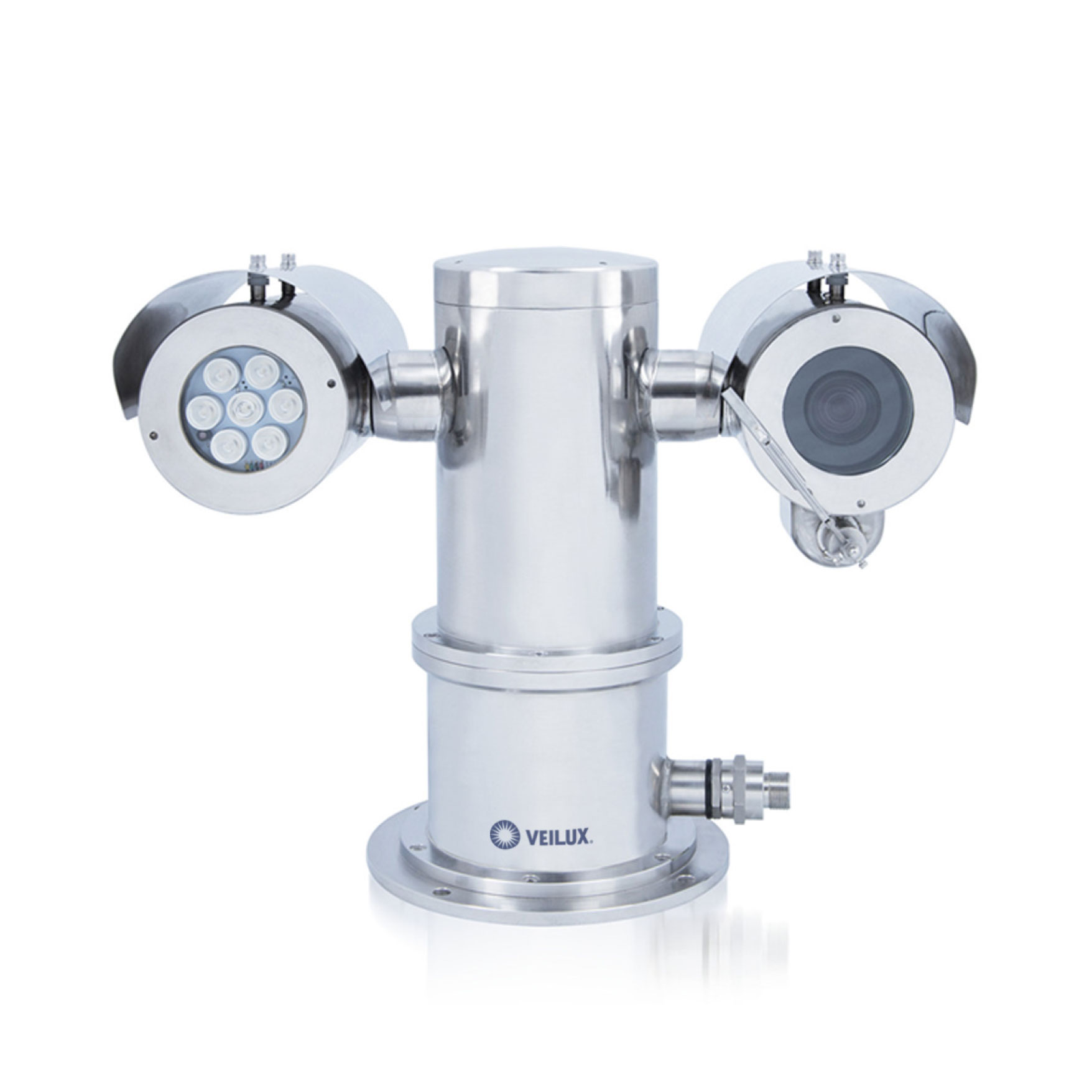

SVEX-610-2MIR30X-ZN Explosion Proof Integrated Camera
SVEX-610-2MIR30X-ZN is a Veilux designed classic explosion-proof integrated camera, which is integrated by explosion proof camera (housing), pan tilt decoder and wiper, it makes install and debug on site convenient. The explosion proof camera can apply for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station etc.
Features:
- ATEX, IECEx Approved;
- Applicable for Gas Zone 1, Zone 2, (Class II A, IIB, IIC, T1-T6 group) Dust Zone 21, 22.
- Certified for the latest standards IEC/EN60079 (2014)
- Stainless steel 304 or 316L enclosure
- Surface optional electro-polished or painting
- Weatherproof IP68 (1.2m/45min)
- Wide voltage input: AC100-240V or AC24V
- Strong tempered glass, fit for hydrofluoric acid area
- Intelligent window defroster design
- Auto temperature adjust kit for aggressive area
- High precision wiper , Supported user-defined
- Auto temperature adjust kit for aggressive area
- Symmetrical balancing design
- Intelligent long focal speed limit, fit for long distance monitoring
| EX-PROOF MARKING | |
|
Certificate Mark |
2G Ex db IIC T6 Gb,
2D Ex tb IIC T80ºC Db |
| Certificate | Presafe 17 ATEX 11328X, IECEx PRE 18.0030X |
| Standards | IEC/EN60079 |
| MECHANICAL | |
| Housing | Stainless steel 304 or 316L |
| Surface | Optional electro-polish or painting |
| Ingress protection | IP66, IP68 (2m/ 2h) |
| Cable thread hole | M25×1.5 (or M27*1.25) |
| ELECTRICAL | |
|
Voltage |
100~240V AC or 24V AC or 24VDC, PoE++(48VDC) (IEEE 802.3bt) |
| Power | 50W/75W (with thermostat start) |
| Surge Protect | Optional, TVS6000V surge protect |
|
Optional Fiber Output |
Single mode single fibre (standarded) Tx1310, Rx1550nm, FC connector Or multi-mode single fiber |
| Optional Video Signal | 1-way video output |
| Optional Network Signal | RJ45 |
| Optional Audio | 1-way input, 1-way output |
| Optional Alarm | 2-way alarm input, 1-way alarm output |
| Address Code | 0/1 |
| Night Vision Lights | up to 200m |
|
Trail Cable |
2m integrated cable Option 1: power+CAT
Option 2: power+RS485+coxial cable Option 3: power+CAT+audio+alarm+RS485+coaxial cable Option 4: power+CAT+audio+alarm+fiber cable |
| AMBIENT | |
| Ambient temperature | -40°C ~+60°C |
| Air pressure | 80Kpa to 110Kpa |
| Relative Humidity | ≤95% (no condensation) |
| COMMUNICATION | |
| Communication Type | RS485 |
| Protocol | Pelco-D, Pelco-P |
| Communicate Rate | 2400~19200bps adjustable |
| 485 Communication | Supported |
| PAN & TILT | |
| Communication Type | RS485 |
| Protocol | Pelco-D, Pelco-P |
| Communicate Rate | 2400~19200bps adjustable |
| 485 Communication | Supported |
| Keep Watch | Supported |
| Preset | 64/128/255/300 |
| Resume Function | Supported |
| Auto Cruise | Supported |
| Auto Scan | Supported |
| OPTIONAL ALARM | |
| Alarm Input | 2-channel/ 7-channel |
| Alarm Output | 1-channel, action with alarm |
|
Intelligent Alarm |
Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access |
| OPTIONAL AUDIO | |
|
Audio Input |
Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output
impedance: 1KΩ+10% |
| Audio Output | Line-level impedance 600Ω |
| NETWORK | |
| Network Interface | 1pcs of RJ45, support 10M/100M/1000M |
| Video Compression | H.264 main profile / MJPEG |
| Audio Compression | G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726 |
| Voice Intercom | Support |
| Stream | Support three streams |
|
Internet Protocol |
IPv4/IPv6, HTTP, HTTPS,802.1x,Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Time Display | Support |
| Standard | ONVIF, CGI, GB/T28181, PISA |
| IE Browser | Support IE7 or above, Google, Firefox, Apple |
| Security | Password protection, Multiple access control |
| CAMERA | |
| Type | 2MP 30X optical zoom camera |
| Sensor | 1/2.8″, 2 megapixel, progressive scan, CMOS |
| Lens | 4.3-129mm, 30X optical |
| zoom | Automatic focusing and motorized zoom lens |
| iris | Auto manual: F1.5~F3.4 |
| shutter | Auto/manual, shutter time: 1/6~1/8000s |
| WDR | 120dB |
|
Min. Illumination |
0.005lux (F1.6, 50IRE, color) 0.0005lux (F1.6, 50IRE, B&W) |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Video Compression | H.265, H.264 |
| Frame Rate | 1080P (1920×1080) Max 60fps |
| Video Stream | Three stream |
| OSD | Time OSD, customized OSD |
| Motion Detection | Supported |
| Privacy Mask | Supported |
| Edge Storage | Support Micro SD, up to 128GB |
| Network Storage | Dual-way iSCSI block storage |
|
Protocols |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, SI |
| Compatiable integration | ONVIF2.4, GB/T28181 |
| Digital zoom | 16x |
| GENERAL | |
| Size (LxWxH) | 530 x 295 x 420 (mm) |
| Net Weight | 45kg |
| Compatible Mounts | Wall, Pole, Corner |
