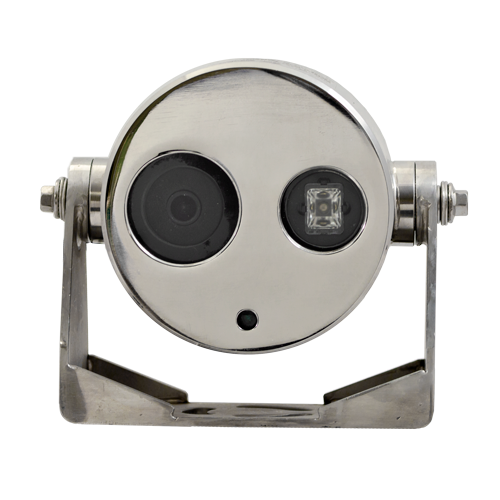

SVEX-Q25-Z Explosion Proof Smart CCTV Camera With Light
, , ,

SVEX-Q25-Z Explosion Proof Smart CCTV Camera With Light

Availability:

Out of stock
  • Stainless steel 304 or 316L
  • Optional electropolished or corrosion resistant paint finish
  • Enclosure Protection: IP68
  • Small size

This is special order item. Allow 4-6 weeks for delivery.

SVEX-Q25-Z Explosion Proof Smart CCTV Camera With Light

Features

  • Stainless steel 304 or 316L
  • Optional electropolished or corrosion resistant paint finish
  • Enclosure Protection: IP68
  • Exd II CT6 Gb/ Ex tD A21 IP68 T80°C
  • Power input: DC12V or POE power supply
  • Includes lights for night vision: 0-30m distance
  • Application: Oil tank, dangerous goods vehicle, marine vessel

This is special order item. Allow 4-6 weeks for delivery.

SKU: SVEX-Q25-Z Categories: , , , Tags: , , , , ,
Weight 3.96 lbs
Dimensions 6.6 × 5.9 × 5.8 in
Camera Type

IP Rating

Lens Size

4mm
IR Lighting Distance

Atmospheric Pressure 80KPa~110Kpa
Ambient Temperature –20°C~+60°C
Relative Humidity ≤95% (+25°C)
Ex-Proof Mark Exd II CT6 Gb/ Ex tD A21 IP68 T80°C
Explosion Proof Certified CNEx 16.2526
Ingress Protection IP68
Housing Material Stainless Steel 304 or 316L
Image Sensor 1/3″ Progressive Scan CMOS
Signal PAL/NTSC
Effective Pixel 1920 x 1080 (HD type)
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
SHUTTER 1/3 sec to 1/100,000 sec
Lens 4mm (6mm optional)
Lens Mount M12
Day & Night IR cut filter with auto switch
Horizontal Resolution 1920x 1080
Video Output 1 RJ45 10M / 100M ethernet interface
S/N Rate above 62 dB
Auto Gain Lower/ middle/ high/ off
Color Color/ B&W / IR
White Balance auto/ manual
Private Protect on/off, 8 zones
Move Detection on/off, 4 zones
Exposure total exposure/ wide balance
3D Noise lower/ middle/ high/ off
Function Smart IR contrast, Sharpness, saturation, mirror, zoom
Light Night Vision 0-30m
Voltage Input DC12V/ POE
Power Consumption 5W Max
Cable Output Integrated cable, 2m long
Cable Gland 1pcs G3/4
Overall Dimension 168 x 150 x 148 (L x W x H)
Net Weight 4.3 kg
Material Stainless steel 304 or 316L
Max Loading 20kg
Weight 1.8kg

SVEX-Q25-Z Spec Sheet

Download

SVEX-Q25-Z Spec Sheet
