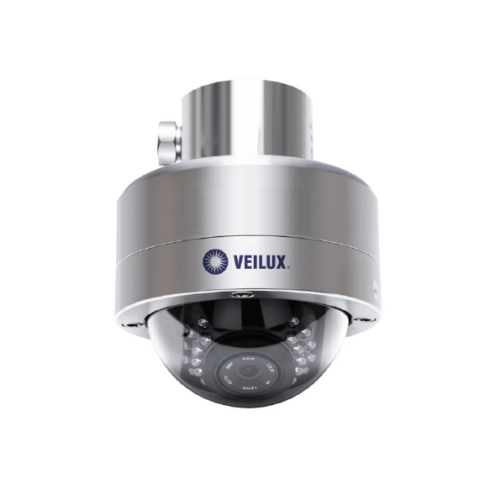

SVEX-Q40V-K ATEX Certified Stainless Steel Explosion Proof Camera (Discontinued)

Availability:

Out of stock


  • Excellent imaging in low illumination
  • Supports AHD output
  • 4MP AHD Analog
  • Available in 304 or 316L Stainless Steel

Note: This is a special order item. Allow 4-6 weeks for delivery.

The Veilux SVEX-Q40-K Explosion Proof Camera features a 4MP lens capable of recording footage in 1956 x 1266 resolution. Additionally, the surveillance camera is compatible with AHD analog video feed. The device operates over a DC12V /220V power supply. Further, the security camera has a 304 and 316L stainless steel housing and is IP68 weather resistant.

Features:

  • 1/2.8″ IMX322 Sony sensor, to capture the motion picture without aliasing
  • Supports TVI/CVI/AHD output, the image is clear with a resolution of 1080p
  • Minimum illumination: Color 0.01Lux @ (F1.2, AGC ON), BW 0.001Lux@ (F1.2, AGC ON)
  • IR infrared lens with up to 3 million pixels
  • Advanced Y/C signal separation technology, analog filtering technology and 3D noise reduction technology
  • Support ICR Day/Night Auto-switch, color and B/W, 24hr monitoring
  • Nano-technology treated glass to add strength and allow for the best light transmittance. No fogging and repels oil/dust particles
  • Strong explosion-proof glass with excellent light transmission as high as 96%, helps eliminate the infrared light halo
  • Low power consumption. Internal air convection for efficient heat dissipation which allows it to work continuously for an extended period of time
  • Available in 304 or 316L stainless steel material making this perfect for highly corrosive environments

Note: This is a special order item. Allow 4-6 weeks for delivery.

Camera Type

IP Rating

IR Lighting Distance

Materials

Specifications:

CAMERA


Certifications

ATEX

II 2G Ex d IIC T6 Gb

II 2D Ex tb IIIC IP68 T80°C Db

Imaging Sensor 1/2.8 inch IMX322 Sony sensor
Imaging Sensor PAL/NTSC
Total Pixels 1956 (Horizontal) x 1266 (vertical)


Minimum Illumination

Color 0.01 Lux@ (F1.2, AGC ON), BW 0.001Lux@(F1.2, AGC ON)
Lens 4X motorized zoom
Synchronous Mode Internal synchronization
Signal To Noise Ratio >58dB
Shutter 1/50(1/60)s-1/10,000s
Reduce Noise 3D Reduce noise
Video Output 1 way BNC
Automatic Gain Supported
White Balance Automatic / manual
Motion Detecting Supported
Backlight Compensation Supported
TVL 1050TVL
Day/Night ICR automatic switching
IR Radiation Distance 15M
MECHANICAL
Material 304/316L stainless steel
Surface Treatment Stainless steel or polishing
Ingress Protection Level IP68
Inlet Hole Specifications 1x Dimensions: 14 x 1.5 (mm)
GENERAL
Power supply voltage DC12V 2A
Communication AHD/CVI/TVI control for option
Temperature Range -40°C ~ 60°C
Relative Humidity ≤5% (+25°C)
Atmospheric Pressure 80kpa ~ 106 kpa
Installation Method bracket or base installation



Note: This is a special order item. Allow 4-6 weeks for delivery.

SVEX-Q40-K Spec Sheet

Download

SVEX-Q40-K Spec Sheet
