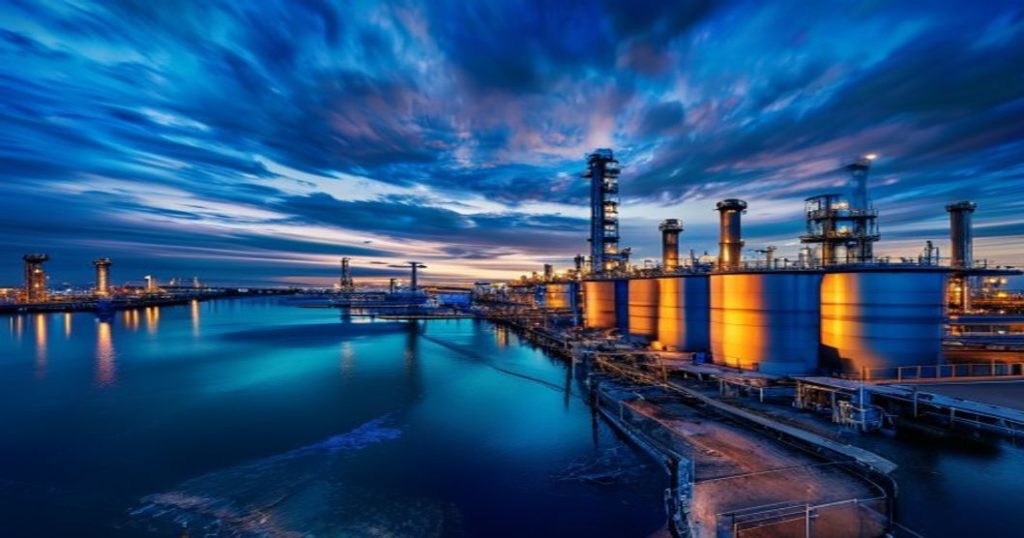

LNG (liquefied natural gas) terminals present the most demanding explosion-proof camera requirements of any onshore industrial facility. Methane in its liquefied form creates hazards not found in conventional gas plants: cryogenic spill zones, rapid phase transition (RPT) risk, and continuous Class I Division 1 Group D environments across large tank farm footprints. This guide covers camera selection, zone mapping, and installation requirements for LNG import terminals, export facilities, and peak-shaving plants.
LNG Facility Hazardous Area Classification Overview
LNG terminals follow NFPA 59A (Standard for the Production, Storage, and Handling of Liquefied Natural Gas), which references NEC Article 501 for electrical equipment classification. The primary hazard is methane (CH₄) — NEC Group D, IEC Group IIA — but hydrogen contamination in some LNG streams and BOG (boil-off gas) handling areas can require Group C or even Group B/IIC ratings in specific locations.
| Area | NEC Classification | Gas Group | Extent |
|---|---|---|---|
| LNG storage tank (above liquid level) | Class I Division 1 | Group D (methane) | Interior of tank — not accessible for cameras |
| LNG tank roof and top 3m area | Class I Division 1 | Group D | All equipment within 3m of tank roof |
| Tank annular space (double-wall tanks) | Class I Division 1 | Group D | Full annular space volume |
| Loading/unloading arm area | Class I Division 1 | Group D | Within 3m of manifolds and flanges |
| Pump pit / in-ground pumps | Class I Division 1 | Group D | Full pit volume + 3m surrounding |
| BOG compressor room | Class I Division 1 | Group D | Entire compressor building footprint |
| Vaporizer area (ambient/submerged combustion) | Class I Division 1 | Group D | Within 3m of vent connections |
| LNG spill impoundment basins | Class I Division 1 | Group D | Full impoundment area + 15m beyond |
| Pipeline connections outside Division 1 | Class I Division 2 | Group D | 3m to 15m from flanges and valves |
| Control building — pressurized | Non-hazardous (with positive pressure HVAC) | N/A | Interior only — maintain positive pressure |
| General tank farm — open areas | Class I Division 2 | Group D | General tank farm perimeter |
Camera Requirements by Zone
| Zone | Camera Type | Housing | Min. Certification | Key Notes |
|---|---|---|---|---|
| Tank roof / top area | Fixed or PTZ, IR | 316L SS, IP66+ | Class I Div 1 Group D T3 | Cryogenic temperature range housing optional but recommended (−160°C capable) |
| Loading arm manifold | Fixed 4MP+ IR | 316L SS XP | Class I Div 1 Group D T3 | Continuous monitoring for loading operations; 30–50m IR range needed |
| Pump pit perimeter | Fixed wide-angle | 316L SS XP IP67 | Class I Div 1 Group D T3 | Condensation and frost in cryogenic areas — IP67 minimum |
| BOG compressor building | Fixed or dome | Cast AL or SS XP | Class I Div 1 Group D T3 | Internal temperatures can be high — verify T-class matches ambient + heat load |
| Tank farm perimeter | PTZ 30x or higher | AL XP or Division 2 rated | Class I Div 2 Group D T3 | Cover long sight lines between tanks; 100–200m IR range recommended |
| Spill impoundment | Thermal + visible fixed array | 316L SS XP IP67 | Class I Div 1 Group D T3 | Thermal cameras detect LNG pool fires and vapor clouds before visible ignition |
| Marine jetty / loading dock | PTZ 30x+ with wiper | 316L SS XP, IP68 | Class I Div 1 Group D T3 (near manifold) or Div 2 (pier perimeter) | Salt spray and wave splash — IP68 + window wiper essential for marine exposure |
Cryogenic Temperature Considerations
LNG is stored and handled at −160°C (−256°F). While cameras are not installed at the liquid surface, the surrounding area experiences significant temperature gradients — especially near pump pits, spill impoundments, and loading arm connections. Standard explosion-proof camera housings are rated for −40°C to +60°C operation. In areas adjacent to cryogenic equipment or where LNG spills could chill surrounding surfaces below −40°C, extended low-temperature specifications are required.
| Temperature Scenario | Risk | Solution |
|---|---|---|
| Near pump pit (−40°C to −60°C possible) | Housing seals harden and crack; O-rings fail; LCD viewfinders freeze | Specify −55°C rated housing; sealed CMOS sensor (no moving parts) |
| LNG spill impoundment area | Rapid chilling from vapor cloud — could reach −100°C near ground | Mount cameras at elevation; specify extended cold-rated; use thermal camera for vapor cloud detection |
| Marine jetty (salt spray + cold) | Salt accelerates low-temperature embrittlement | 316L SS housing + IP68 + heated dome option; window wiper for spray |
| BOG compressor building (warm) | Heat from compressors increases ambient beyond standard range | Verify T-class adequate at maximum ambient; use vented XP housing with thermal management |
Thermal Camera Integration for LNG Facilities
LNG terminals benefit substantially from thermal (infrared radiometric) cameras, which detect temperature anomalies before a hazard becomes visible to standard CCTV. Key applications include vapor cloud detection from boil-off gas or spills, hot spot identification on piping and equipment, perimeter security for large tank farms, and fire detection at loading arms before a spill reaches ignition temperature.
Thermal cameras installed in classified areas must carry the same NEC explosion-proof certifications as visible-light cameras. The thermal sensor’s power consumption and internal heat generation must be accounted for in the T-class calculation — thermal cameras with built-in heaters can produce significant internal heat. Specify thermal cameras with explicit T-class ratings for the ambient conditions, not just the detector specifications.
ATEX/IECEx Equivalents for International LNG Facilities
| NEC Classification | ATEX/IECEx Zone | Gas Group | Equipment Marking |
|---|---|---|---|
| Class I Division 1, Group D | Zone 1 | IIA (methane) | II 2 G Ex d IIA T3 Gb |
| Class I Division 2, Group D | Zone 2 | IIA (methane) | II 3 G Ex nA IIA T3 Gc |
| Division 1 with H₂ contamination | Zone 1 | IIC (hydrogen present) | II 2 G Ex d IIC T3 Gb |
IIC vs IIA at LNG facilities: Most LNG streams are pure methane (Group IIA/D). However, some natural gas liquefaction feedstocks contain hydrogen, and hydrogen contamination in BOG or vent streams can create localized Group C/IIB or Group B/IIC hazards. At BOG compressor suction points and vent systems where hydrogen-enriched streams may exist, specify IIC-rated equipment as a conservative design choice — IIC equipment is always suitable for IIA/IIB hazards.
Marine Jetty and Ship-Loading Camera Requirements
LNG carrier loading and unloading jetties combine marine hazards with classified area requirements, creating the most demanding camera specifications in the LNG facility. Cameras on marine jetties must survive salt spray, wave splash, potential submersion during storms, and classified area classification near the manifold connections — while maintaining 24/7 surveillance for collision avoidance, mooring line monitoring, and loading arm safety.
- Within 3m of manifold connections: Class I Division 1 Group D — XP housing required; 316L stainless mandatory for marine environment
- 3–15m from manifold connections (pier perimeter): Class I Division 2 Group D — Division 2-rated camera or XP acceptable
- IP rating: IP68 recommended for jetty cameras — wave action can exceed IP66/67 in storms; IP68 provides submersion protection
- Window wiper: Essential — salt spray, sea spray, and condensation on camera dome or glass eliminates visibility within hours without active cleaning
- PTZ with long-range IR: Minimum 30x optical zoom with 100m IR range for monitoring LNG carrier approach and mooring; explosion-proof PTZ cameras meeting Division 1 are available
- Corrosion resistance: Marine environment accelerates galvanic corrosion; 316L SS is the only acceptable housing material for long-term jetty service; avoid aluminum even with coating
Power Supply and PoE Considerations for LNG Facilities
LNG terminals require cameras with internal heaters for cold-weather operation, which significantly increases power consumption over standard PoE budgets. The combination of camera sensor, PTZ motor, IR illumination, and heater can exceed 25W — beyond the 15.4W limit of 802.3af PoE and requiring 802.3at (PoE+, 30W) or 802.3bt (PoE++, 60–90W) switches.
| Camera Type | Typical Power | PoE Standard Required | Notes |
|---|---|---|---|
| Fixed XP bullet, no heater | 8–12W | 802.3af (PoE) | Suitable for ambient-temperature areas |
| Fixed XP bullet, with heater | 15–25W | 802.3at (PoE+) | Required for cryogenic-adjacent areas |
| XP PTZ, with heater | 25–45W | 802.3bt (PoE++) or direct AC | High-power PTZ cameras may require local AC power supply in XP junction box |
| Thermal + visible fusion | 20–40W | 802.3at or 802.3bt | Thermal sensor adds significant power draw |
Frequently Asked Questions
What NEC gas group is methane (LNG)?
Methane (CH₄), the primary component of LNG, is classified NEC Group D. In IEC/ATEX terminology, methane is Gas Group IIA. Group D/IIA is the lowest hazard classification for flammable gases — lower risk than propane (also Group D) and well below hydrogen (Group B/IIC). Standard explosionproof cameras rated for Class I Division 1 Group D T3 are appropriate for most LNG facility zones containing pure methane streams.
Do LNG terminal cameras need to be rated for cryogenic temperatures?
Standard explosion-proof cameras are rated to −40°C, which is sufficient for most outdoor LNG terminal locations. Cameras installed immediately adjacent to cryogenic equipment (pump pits, spill impoundments, loading arms) where temperatures could drop below −40°C need extended-range temperature specifications (−55°C or lower). In practice, cameras are mounted at sufficient distance or elevation to avoid direct cryogenic exposure — the classified zone requirement is for explosion protection, not necessarily cryogenic temperature resistance.
Can I use the same explosion-proof cameras at LNG terminals as at standard oil and gas facilities?
Yes — LNG terminals use the same NEC Class I Division 1 Group D classification as oil and gas refineries for the primary methane hazard. Cameras rated for refinery service (UL/cUL Listed Class I Division 1 Group D T3) are fully suitable for LNG terminal Group D zones. The additional considerations for LNG are the marine corrosion environment (requiring 316L SS housing), potential low-temperature exposure, and the need for thermal cameras for vapor cloud detection — none of which change the fundamental explosion-proof certification requirements.
Is ATEX or UL certification required for cameras at LNG export terminals?
The required certification depends on the country of installation. US LNG terminals require UL (or cUL for Canada) listing under NEC Article 501. European LNG terminals (including UK, Netherlands, Spain, France) require ATEX or IECEx certification. Many LNG facilities serving international trade specify dual-certified equipment — UL Listed and ATEX/IECEx certified — to allow equipment standardization across global operations. Veilux cameras carry UL/cUL and ATEX/IECEx certifications.
Specify Cameras for Your LNG Terminal
Veilux explosion-proof cameras are UL/cUL Listed for Class I Division 1 and ATEX/IECEx certified for Zone 1, with 316L stainless steel housing options for marine and high-corrosion LNG environments. Our team can review your NFPA 59A area classification maps and specify the appropriate camera, housing, and PoE infrastructure for each zone.
