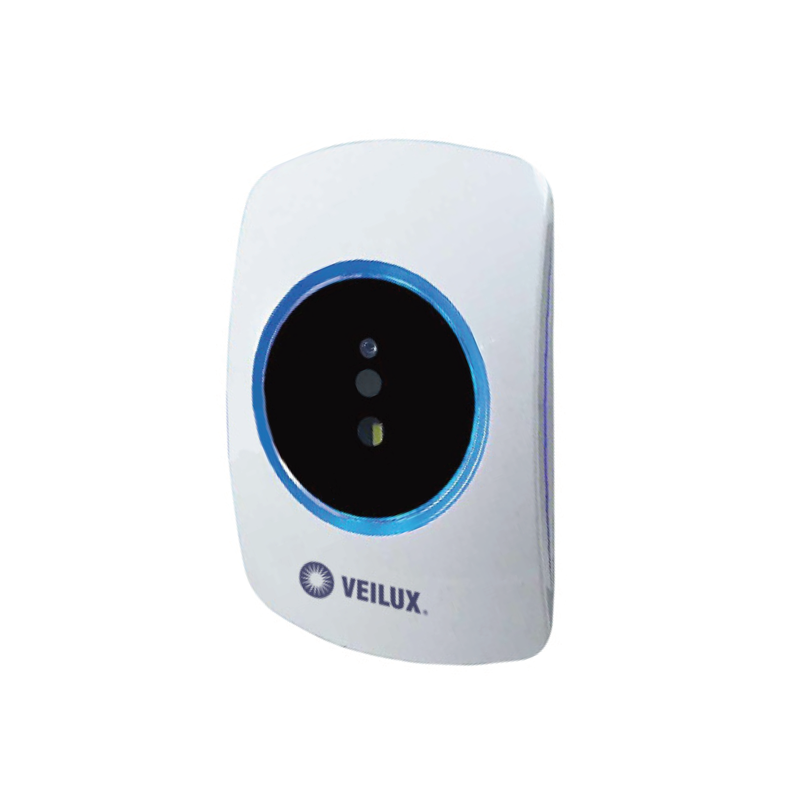

VI-201 Access Control for Ticketing System


  • It can connect off-line and on-line
  • Records access event using the barcode or QR
  • Built-in buzzer for sound notification

This is a special order item. Allow 4-6 weeks for delivery.

VI-201 Access Control for Ticketing System

Features:

  • It can connect off-line and on-line
  • Records access event using the barcode or QR
  • Built-in buzzer for sound notification,
  • Tamper
  • Reads multiple
  • Watch-dog function prevents
Dimensions 3.3 × 4.9 in

Specifications:

RFID Frequency 125KHz ASK//125KHz SSK/13.56 MHz
Cards EM 4001, EM4102 compatible, TEMIC 5557, Mifare S50, S70, Ultra light
Output Format (Interface) RS-232, RS-485, Wiegand 26/34 bits
Mounting Surface mount
Power Input DC 12V










Scan Codes

1D: UPC-A, UPC-E, EAN-13, ISBN10, EAN-8, Code

39, Code 11, Code 93, Code 128 Interleaved25, Industrial25, Matrix25, S25, Code 32, Trioptic39, GS10_128, Codabar, MSI, Telepen, RSS, GS1_Da- tabar, GS1_Databar_Lim, GS1_Databar_Exp.

2D: QR, MicroQR, PDF417, Micro PDF, Datamatrix,

Maxicode, Aztec, Codablock_F.
