Wastewater treatment plants present some of the most demanding hazardous area environments in any municipal or industrial operation. Wastewater treatment facilities — municipal plants, industrial effluent treatment, and sewage pump stations — generate methane (Class I, Group D) and hydrogen sulfide during anaerobic digestion and in collection systems. Areas around digesters, wet wells, and lift stations require explosion-proof cameras to meet NFPA and NEC electrical code requirements for classified hazardous locations. Explosion-proof cameras for wastewater treatment must perform reliably in classified atmospheres generated by anaerobic digestion, chemical storage, and biogas handling—while withstanding the corrosive humidity, H2S exposure, and washdown requirements common at these facilities.
Hazardous Areas in Wastewater Treatment Plants

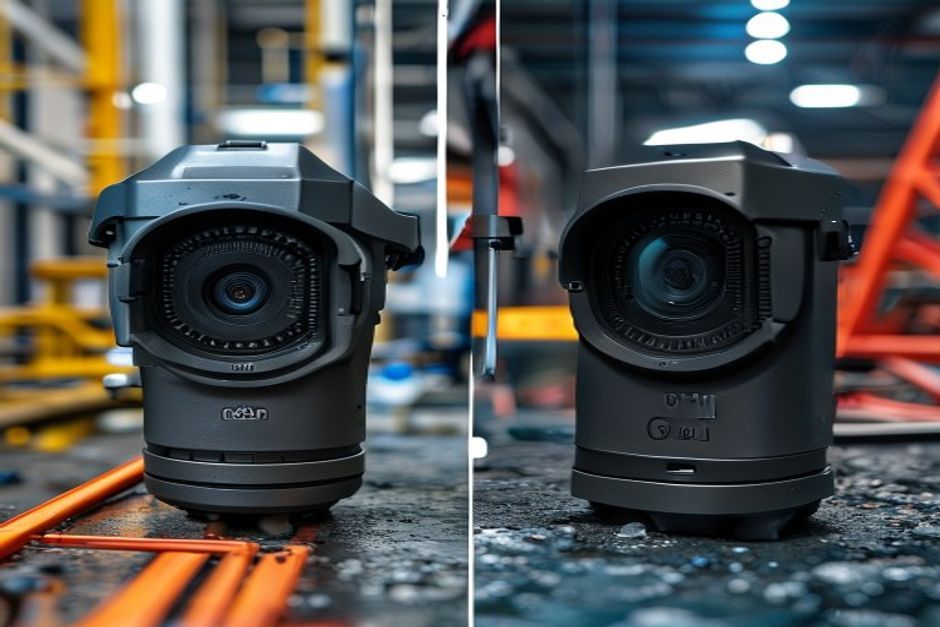

Explosion-proof camera for Hazardous Locations
Multiple locations within a wastewater treatment facility require explosion-proof cameras for wastewater treatment and lighting under NEC and ATEX classification standards:
- Anaerobic digester buildings: Biogas (primarily methane) can accumulate during normal operation. Digester rooms with enclosed headspaces are typically classified Class I Division 1 (NEC) or Zone 1 (ATEX/IECEx). Cameras installed inside or directly adjacent to digester enclosures (within 5 feet of vents and openings) must carry UL Class I Division 1 or ATEX/IECEx Zone 1 certification.
- Biogas compression and storage areas: Gas compression equipment, storage vessels, and pipeline interconnects present Zone 1 / Division 1 conditions wherever gas release is possible during normal operations.
- Sludge processing areas: Dewatering and sludge handling equipment can generate methane and hydrogen sulfide (H2S). H2S in concentrations above its LEL (4.3%) creates an explosive hazard in addition to its well-known toxicity risk.
- Chemical storage rooms: Chlorine, sodium hypochlorite, ammonia (for nutrient removal), ferric chloride, and sulfuric acid are commonly stored and dosed. Some of these (ammonia, alcohols used in denitrification) create Class I / Zone 1 or Zone 2 conditions in storage and dosing areas.
- Pump stations and wet wells: Enclosed pump stations, wet wells, and valve vaults can accumulate methane from decomposing sewage. Most municipal utilities classify wet wells as permit-required confined spaces with Class I Division 1 or Zone 1 atmospheres.
Gas Groups in Wastewater
Wastewater facilities primarily deal with two hazardous gases:
- Methane (CH4): Class I, Group D — produced by anaerobic digestion; lighter than air and accumulates at ceiling level
- Hydrogen Sulfide (H2S): Class I, Group C — produced by septic conditions in collection systems; heavier than air and accumulates at floor level
Cameras installed in areas where both gases may be present should be rated for Group C and D at minimum.
Camera Requirements for Wastewater Treatment
Explosion-proof cameras for wastewater treatment facilities must meet several requirements beyond the basic hazardous area certification:
- Corrosion resistance: H2S and chlorine vapors attack aluminum rapidly. Stainless-steel 316L or epoxy-coated aluminum enclosures with stainless-steel hardware are recommended for digester and chemical areas.
- High ingress protection: Washdown is routine in water and wastewater facilities. Cameras require IP66 or IP67 rated enclosures to survive direct hose-down cleaning.
- Temperature rating: Most wastewater areas fall within standard T5 or T6 temperature class requirements for Group IIA/IIB gases. Methane is Group IIA; hydrogen sulfide is Group IIB.
- IR or white-light illumination: Many digester buildings and pump stations have poor ambient lighting. Integrated IR illumination up to 100 m is standard in quality explosion-proof camera packages.
- PTZ capability: Large digester buildings and tank farm perimeters benefit from motorized PTZ cameras that can cover wide areas without multiplying fixed camera counts.
Wastewater Treatment Applications
| Location | Classification | Camera |
|---|---|---|
| Digester Interior (access hatch view) | Class I, Div 1, Group D | Fixed XP Camera |
| Digester Building Interior | Class I, Div 2, Group D | Fixed XP Camera |
| Wet Well Interior | Class I, Div 1, Groups C/D | XP Dome Camera |
| Pump Station Building | Class I, Div 1-2 | Fixed XP Camera |
| Biogas Compression Room | Class I, Div 1, Group D | Fixed XP Camera |
| Facility Perimeter | Non-classified | Standard IP or XP Camera |
Veilux Solutions for Wastewater Treatment Plants
Veilux manufactures explosion-proof cameras and explosion-proof lighting that meet the dual requirements of hazardous area certification and wastewater environment durability. Our cameras carry ATEX/IECEx and UL Class I Division 1 certification in stainless-steel and coated-aluminum enclosures rated IP66/67, covering every classified area type found in municipal and industrial wastewater treatment facilities.
Our explosion-proof PTZ cameras provide motorized pan-tilt-zoom capability in Ex d enclosures suitable for Zone 1 / Division 1, enabling a single camera to monitor an entire digester building interior or biogas compression area. For perimeter and tank farm coverage, fixed explosion-proof dome and bullet cameras provide 24/7 surveillance with integrated IR.
For wet well and digester monitoring where network cabling is difficult, Veilux cameras support PoE+ (Power over Ethernet) for single-cable installation and are compatible with fiber-optic media converters for long runs between buildings.
All Veilux products include complete certification documentation packages for your engineering review and local authority approval. Request a consultation for zone layout review and camera placement recommendations for your wastewater treatment facility.
Get a Quote for Your Treatment Plant
Tell us your classified locations and camera count. We’ll spec UL-listed cameras with NFPA 820 compliance documentation.
Compliance References
- NFPA 820: Standard for Fire Protection in Wastewater Treatment and Collection Facilities — defines area classifications for WWTPs
- NEC Article 820: Electrical requirements for classified areas in wastewater
- OSHA 29 CFR 1910.94: Confined space requirements relevant to wet well camera installations
