Explosion Proof LED Lighting: Complete Guide

Explosion proof LED lighting has become the dominant illumination technology in hazardous locations worldwide—replacing older HID, fluorescent, and incandescent fixtures in oil refineries, chemical plants, offshore platforms, grain handling facilities, and any classified area where flammable gases, vapors, or combustible dusts create ignition risk. This guide covers everything engineers, HSE managers, and facility operators need to know when specifying, installing, and maintaining explosion proof LED lighting systems.

Why Explosion Proof LED Lighting Has Replaced HID in Hazardous Areas

Traditional high-intensity discharge (HID) lamps—metal halide, high-pressure sodium, and mercury vapor—were the default for hazardous area lighting for decades. Explosion proof LED lighting now outperforms HID across every meaningful metric:

• Energy efficiency: LED produces 120-180 lumens per watt. HID typically delivers 60-120 lm/W. A 100 W LED fixture replaces a 250-400 W HID fitting with equivalent or better illumination.
• Service life: Quality explosion proof LED fixtures are rated for 50,000+ hours (roughly 11 years at 12 hours/day). HID lamps require replacement every 10,000-20,000 hours and involve hot-work procedures every time a lamp is changed in a classified area.
• Instant-on capability: LEDs reach full brightness instantly. HID lamps require a 5-15 minute warm-up cycle, creating safety gaps when lighting is interrupted.
• Surface temperature: LED fixtures run cooler. A well-designed explosion proof LED high bay can achieve T5 or T6 temperature class with ambient ratings to 65°C, covering the vast majority of petrochemical and chemical processing applications.
• Vibration resistance: Solid-state LED construction has no filament or arc tube to break under vibration loads common in compressor stations, pump rooms, and mobile equipment.

Certification Standards for Explosion Proof LED Lighting

Explosion proof LED lighting must carry appropriate certification for the classification system used at the installation site:

• ATEX (EU): Equipment Group II, Category 2G or 3G (gas), Category 2D or 3D (dust). Common protection: Ex d (flameproof enclosure), Ex e (increased safety), or Ex de (combination). Directive 2014/34/EU is mandatory for EU market equipment.
• IECEx: Same technical standards as ATEX (IEC 60079 series), recognized in 40+ countries. IECEx CoC holders can often achieve national recognition in Australia, Middle East, and Southeast Asia without retesting.
• NEC/UL (North America): Class I Division 1 or Division 2, Groups C and D (petroleum vapors) are most common. Class II Division 1 for dust environments. UL 844 is the primary standard for luminaires in hazardous locations. FM Approvals and ETL Listing are also accepted.
• IECEX + ATEX dual certification: Strongly recommended for equipment that will be deployed across multiple geographic markets. Veilux explosion proof LED lighting carries dual ATEX/IECEx and UL/cUL certification from a single fixture SKU.

Types of Explosion Proof LED Lighting Fixtures

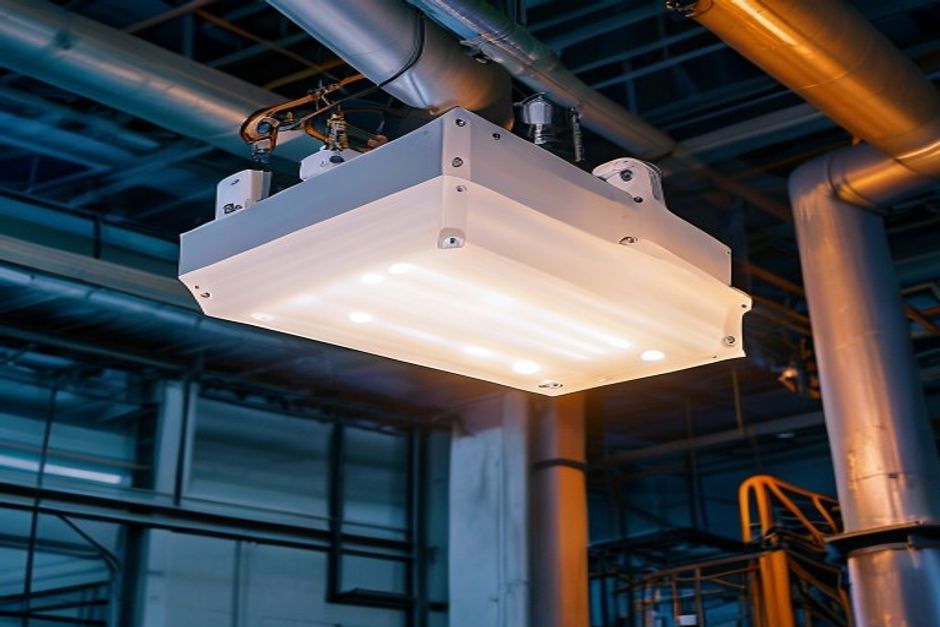

Explosion Proof LED High Bay Lights

High bay explosion proof LED fixtures are designed for indoor or covered outdoor spaces with ceiling heights of 6-15 m: warehouses, processing buildings, loading docks, and compressor stations. Output ranges from 5,000-50,000+ lumens with beam angles of 60-120 degrees. Look for IP66 or IP67 ingress protection rating alongside the Ex certification for washdown environments.

Explosion Proof LED Floodlights

Floodlights provide broad-beam area illumination for outdoor hazardous locations: tank farms, loading terminals, wellheads, and offshore deck areas. Most models accept yoke or wall bracket mounting and include stainless-steel hardware for corrosive marine environments. Die-cast aluminum or 316 stainless enclosures are common for high-humidity and offshore applications.

Explosion Proof LED Linear Fixtures

Linear explosion proof LED fixtures replace fluorescent tube fittings in control rooms, laboratories, battery rooms, and paint spray booths. Typical output is 2,000-8,000 lumens with color rendering index (CRI) above 80 for task lighting and color discrimination applications.

Explosion Proof LED Exit and Emergency Lights

Emergency and exit signs in hazardous areas require certification not only for explosion protection but also for emergency function. ATEX-certified emergency luminaires must maintain rated illumination for the required duration (1, 2, or 3 hours) even when the local surface temperature classification limits the allowable internal temperature rise.

Selecting Explosion Proof LED Lighting: Key Specification Criteria

When selecting explosion proof LED lighting for a project, confirm these parameters against the area classification report:

1. Gas group: Group IIC (hydrogen, acetylene) requires the highest protection. Groups IIA and IIB cover the majority of petroleum and chemical vapor hazards. Confirm your site’s gas group before specifying.
2. Temperature class: The fixture’s T-class surface temperature limit must be below the minimum ignition temperature of the hazardous substance. T6 (85°C surface limit) covers the widest range of substances.
3. Ambient temperature range: Standard Ex fixtures are rated for -20°C to +40°C. Extended-range versions cover -50°C to +65°C for extreme climates and tropical offshore locations.
4. Ingress protection: IP65 minimum for washdown; IP66 or IP67 for direct hose-down or immersion risk.
5. Mounting: Pendant, surface, yoke, pole, or recessed mounting options vary by fixture family. Confirm conduit entry size and thread type (NPT for North America, PG or M for European installations).

Veilux Explosion Proof LED Lighting Products

Veilux offers a complete range of explosion proof LED lighting fixtures certified to ATEX/IECEx and UL/cUL standards for Class I Division 1 and Zone 1 hazardous areas. Our high bay LED fixtures are available in 50 W to 300 W configurations for industrial spaces with ceilings up to 15 m. Veilux explosion proof LED floodlights provide 180-degree adjustable beam coverage for outdoor tank farms, process areas, and loading docks.

All Veilux LED products are designed for direct replacement of HID fixtures without conduit rework, minimizing installation labor in classified areas. Request a lighting layout and photometric report for your hazardous area project.

Related Resources

• Hazardous Area Classification: Complete Guide
• ATEX Certification: Complete Guide
• ATEX vs IECEx vs NEC: Certification Comparison
• Explosion-Proof Cameras for Hazardous Areas

The IEC 60079-0 standard (general requirements for Ex equipment) and IEC 60079-1 (flameproof enclosures Ex d) are the governing technical standards. View the current versions at IEC.ch.

ATEX and UL844 Certification Standards for Explosion-Proof LED Lighting

Explosion-proof LED lighting must meet rigorous certification requirements before it can be legally installed in classified areas. The two dominant certification frameworks are ATEX/IECEx (used in Europe and internationally) and UL 844 (used in North America), and both impose specific requirements on enclosure integrity, temperature performance, and construction quality.

ATEX Certification Requirements

Under the ATEX Equipment Directive (2014/34/EU), explosion-proof LED lighting for Zone 1 gas hazard areas must achieve Category 2G certification with a minimum protection concept of Ex d (flameproof enclosure) or Ex de (combined flameproof and increased safety). The key certification parameters are:

• Temperature class (T-rating): The fixture’s maximum external surface temperature must not exceed the auto-ignition temperature of the hazardous substance present. T6 (85 degrees C surface limit) provides the broadest coverage, suitable for almost all petroleum and chemical applications. T5 (100 degrees C) and T4 (135 degrees C) are also common in explosion-proof LED lighting for higher-temperature-rated substances.
• Ambient temperature range: Standard ATEX fixtures are certified for -20 degrees C to +40 degrees C ambient. Tropical and Arctic variants extend this to -50 degrees C to +65 degrees C, required for offshore platforms and refinery applications in extreme climates.
• IP rating: Ingress protection against dust and water. IP65 (dust-tight, low-pressure water jet) is the minimum for most industrial applications. IP66 (high-pressure jet) and IP67 (temporary immersion) are required for washdown environments and processing areas subject to direct water exposure.
• Gas group: IIC-rated explosion-proof LED lighting is suitable for the widest range of substances including hydrogen and acetylene. IIB covers ethylene and propane. Specify IIC for maximum versatility unless site substances are confirmed IIA or IIB.

UL 844 Certification Requirements

In North America, UL 844 (Standard for Luminaires for Use in Hazardous [Classified] Locations) is the primary certification standard for explosion-proof LED lighting fixtures. UL 844 testing evaluates:

• Enclosure integrity under internal ignition (for explosion-proof Class I Division 1 fixtures)
• Temperature rise under maximum rated power and ambient conditions
• Short circuit and overcurrent protection for integral LED drivers
• Mechanical impact resistance of the enclosure and lens assembly
• UV stability and thermal cycling performance of lens materials (particularly important for polycarbonate and glass lenses in outdoor applications)

Fixtures certified under UL 844 for Class I Division 1 may also carry a cUL mark (Canadian compliance) and optional FM Approval or ETL Listing. These all provide equivalent compliance under NEC Article 501 for Division 1 installations. For Zone-classified North American projects under NEC Article 505, UL-listed explosion-proof LED fixtures certified to ANSI/ISA 60079 standards are also permitted.

Types of Explosion-Proof LED Fixtures

Explosion-proof LED lighting encompasses a wide range of fixture types designed for specific mounting configurations, output levels, and area types in classified locations.

Explosion-Proof LED High-Bay and Low-Bay Fixtures

High-bay explosion-proof LED fixtures are designed for large-volume indoor hazardous locations with mounting heights of 6 to 15 meters: compressor buildings, petroleum loading facilities, warehouse-scale processing areas, and grain handling structures. Output ranges from 10,000 to 60,000 lumens. Modern high-bay explosion-proof LED fixtures incorporate multi-chip LED arrays with individual lens optics to achieve even illumination across a wide floor area from a single mounting point, reducing the number of fixtures required compared to earlier HID designs.

Explosion-Proof LED Floodlights

Floodlights provide directional broad-beam illumination for outdoor hazardous locations and open process areas: tank farms, loading terminals, wellhead areas, offshore deck illumination, and refinery process units. Mounting options include yoke bracket (pole or wall), pedestal post, and offshore stanchion. Die-cast aluminum alloy enclosures with marine-grade surface treatment are standard for coastal and offshore environments. Output ranges from 5,000 to 40,000 lumens with adjustable beam angles of 45 to 120 degrees. Many explosion-proof LED floodlights accept multi-voltage input (85 to 265 V AC) for simplified global deployment.

Explosion-Proof LED Linear Strip Fixtures

Linear explosion-proof LED fixtures replace fluorescent tube fittings in control rooms, battery charging rooms, paint spray booths, and chemical laboratory spaces. Typical configurations provide 2,400 mm to 1,200 mm tube-equivalent form factors, with single or twin tube arrangements producing 2,000 to 8,000 lumens. Linear fixtures are commonly specified with Ex e (increased safety) protection or Ex de (combined) for installation in Zone 1 and Zone 2 areas where the space constraints favor a lower-profile fitting than a high-bay pendant.

Explosion-Proof LED Pendant and Bulkhead Fixtures

Pendant-mount explosion-proof LED fixtures provide omnidirectional illumination in smaller hazardous spaces: pump rooms, switchgear buildings, confined process modules, and muster stations. Globe-style borosilicate glass or impact-resistant polycarbonate diffusers are common. Bulkhead (wall-mount) versions are used in offshore cabins, stairwells, and corridors. Output ranges from 1,500 to 8,000 lumens in standard configurations.

Explosion-Proof Emergency and Egress Lighting

Emergency luminaires and exit signs for classified areas must carry ATEX or UL 844 certification in addition to emergency function compliance. Battery autonomy requirements are typically 1, 2, or 3 hours per the applicable emergency lighting standard. LED technology is particularly advantageous for emergency explosion-proof LED lighting because LEDs are not sensitive to temperature-driven failures during emergency discharge and provide near-instant restart after a power interruption, unlike HID sources that require a restart cycle.

Explosion-Proof LED Lighting Selection: Key Parameters

Selecting the correct explosion-proof LED lighting fixture for a hazardous location project requires matching a set of technical parameters against both the area classification report and the illumination design requirements. Overlooking any of these parameters risks non-compliance or inadequate lighting performance.

Lumen Output and Photometric Requirements

Before specifying any explosion-proof LED lighting fixture, a photometric calculation should be performed using the area dimensions, mounting height, required maintained illuminance level (in lux or foot-candles per the applicable design standard), and the fixture’s photometric data (IES file). For process areas, IESNA RP-7 (North America) and EN 12464-2 (Europe) specify maintained illuminance levels by task type: walkways and access routes typically require 50 to 100 lux; working platforms require 150 to 300 lux; instrumentation and control work areas require 300 to 500 lux.

Color Temperature and CRI

Most explosion-proof LED lighting for industrial applications is specified at 5000K (daylight) or 4000K (cool white) color temperature. 5000K provides maximum perceived brightness per lumen and is preferred for outdoor and large-volume indoor applications. 4000K provides a warmer appearance preferred for enclosed process buildings and areas where workers spend extended periods. Color Rendering Index (CRI) of 80 or above is the minimum for general industrial applications; CRI 90+ is recommended where color discrimination is safety-relevant (e.g., differentiating pipe color coding, reading instrument gauges).

Dimming and Control Options

Explosion-proof LED lighting is increasingly available with dimming capability and occupancy control. DALI (Digital Addressable Lighting Interface) and 0-10V dimming interfaces allow integration with building management systems for energy management in process areas with variable occupancy. Emergency override circuits ensure full output is maintained during fire alarm or power interruption events regardless of the dimming set point. Any control interface must itself be Ex-certified or located outside the classified area with Ex-certified field devices within the hazardous zone.

Driver Specifications

The LED driver (power supply) in explosion-proof LED lighting is a critical component that must be rated for the full ambient temperature range of the fixture certification. Drivers should carry a power factor of 0.95 or higher to minimize reactive current draw, total harmonic distortion (THD) below 20%, and a minimum L70 lifespan of 50,000 hours at the rated operating temperature. For facilities with significant voltage fluctuation (common in remote oil and gas locations with generator power), wide-input-range drivers (85-305 V AC, 50/60 Hz) are essential.

Ingress Protection

Match the IP rating to the environmental exposure of the installation location. IP65 is adequate for dry indoor hazardous areas. IP66 is required for process areas subject to washdown procedures. IP67 is specified for fixtures subject to temporary immersion risk (drainage pits, sumps, low-lying outdoor areas). For underwater applications in classified areas (rare but applicable in offshore risers), IP68 ratings are available. Always confirm that the IP rating on the fixture applies to the complete assembled unit including cable entry glands, not just the enclosure body.

Installation Guidelines for Explosion-Proof LED Lighting

Even correctly specified explosion-proof LED lighting can fail compliance requirements if improperly installed. Installation in classified areas must follow IEC 60079-14 (Ex installations standard) or NEC Article 501 (Division 1) / Article 505 (Zone 1), depending on the applicable classification system.

Conduit Sealing Requirements

In North American installations, NEC Article 501.15 requires conduit seals within 457 mm (18 inches) of all explosion-proof enclosures, including luminaires, to prevent gas migration through conduit systems from classified to non-classified areas. Seals must be filled with an approved sealing compound (e.g., Chico A or equivalent) applied to the full internal cross-section of the conduit. Seals must also be installed at conduit entries into explosion-proof boxes where the conduit run passes from a Division 1 to a Division 2 area.

In IEC-based Zone 1 installations, IEC 60079-14 requires that cable and conduit entries into Ex d enclosures use certified cable glands or conduit fittings rated for the enclosure’s Ex certification. Cable glands must match the cable outer diameter range, armor type (SWA, braided), and temperature rating of the installation.

Mounting Methods

Explosion-proof LED fixtures must be mounted using hardware and methods consistent with the fixture certification. Pendant fixtures typically require Ex-certified steel conduit hangers or threaded pipe connections; surface-mounted fixtures use bolt-down flanges with stainless-steel fasteners. In vibration-prone environments (compressor halls, offshore vessels), spring-loaded pendant mounts or anti-vibration pads should be specified to prevent fatigue failure of the conduit connection and mechanical shock damage to the LED modules.

Cable Gland Selection

Cable glands for explosion-proof LED lighting in Zone 1 (Ex d enclosures) must be certified for the same protection concept as the enclosure itself. For Ex d enclosures, use Ex d-rated cable glands with a flame path. The gland must be rated for the cable type, armor type, and sheath material used. Glands with IP68 sealing capability should be used wherever the cable runs through areas subject to water ingress, even if the fixture itself is only rated IP65.

Maintenance and Replacement of Explosion-Proof LED Fixtures

Explosion-proof LED lighting systems require a structured maintenance program to ensure continued certification compliance and adequate illumination performance throughout the fixture’s service life.

L70 Lumen Maintenance and Service Life

LED fixture service life is typically expressed as L70, the point at which lumen output has declined to 70% of initial output. For quality explosion-proof LED lighting, L70 is rated at 50,000 hours or greater at 25 degrees C ambient. At elevated ambient temperatures typical in process industry applications (40 to 65 degrees C), effective L70 will be shorter; manufacturers’ photometric data at elevated temperature should be used for maintenance planning. A common practice is to schedule group re-lamping (full fixture replacement) at the L70 point to maintain design illuminance levels across the installation.

Scheduled Inspection Requirements

IEC 60079-17 requires periodic inspection of all Ex-certified equipment, including explosion-proof LED lighting. Inspection intervals should be set based on equipment criticality and environmental exposure, typically annually for Zone 1 and every 1 to 3 years for Zone 2.

Inspection checks for luminaires include: enclosure integrity (no cracks, corrosion, or mechanical damage to the body or lens), correct fastener torque on enclosure covers, cable gland integrity and tightness, conduit seal condition (no evidence of seal compound deterioration or gas migration), label legibility (certification marking must remain readable), and lumen output (visual check or measured illuminance against the design level).

Replacement Criteria

Explosion-proof LED fixtures should be replaced when: illuminance levels have fallen below the minimum required by the installation design standard, the enclosure shows mechanical damage that compromises the flameproof gap or ingress protection rating, the driver shows signs of failure (flickering, reduced output, overheating), or the certification standard to which the fixture was originally certified has been withdrawn and replacement parts are no longer available to maintain the original certification basis.

Any replacement fixture must carry certification equal to or better than the original for the installed zone, gas group, and temperature class. Substituting a different model without re-checking the certification basis against the area classification is a common and serious compliance error.

Spare Parts Management

For critical process area explosion-proof LED lighting (emergency circuits, safety system indicators, perimeter security lighting), maintain a minimum stock of complete fixture assemblies and certified cable glands sized for the installed cable types. Unlike HID sources where only the lamp required replacement, LED fixture repair in classified areas typically requires complete unit replacement rather than component-level servicing, since opening the Ex enclosure in the field requires the work to be performed under a hot-work permit and the enclosure re-certified before re-energization in most jurisdictions.

For regulatory standards on explosion proof led lighting, refer to the OSHA hazardous location standards and NFPA 70 National Electrical Code.

As a leading provider of explosion proof led lighting solutions, Veilux delivers certified equipment built for hazardous environments. Our explosion proof led lighting lineup is ATEX, IECEx, and UL listed for Class I Division 1 and Zone 1 applications. Every explosion proof led lighting unit undergoes rigorous testing to ensure reliable operation in explosive atmospheres.

Veilux engineers are available to help you specify the right explosion proof led lighting system for your site requirements. Explore our full selection of explosion proof led lighting equipment and request a custom quote today.
