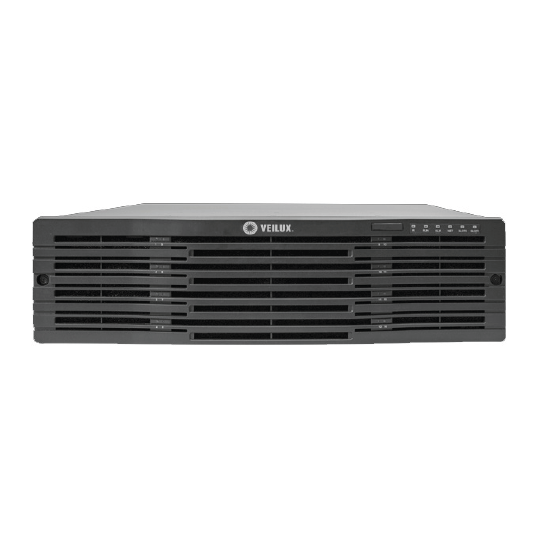

VPRO-NVR-64RR-16H-U 64Ch NVR with Redundant Power and Ultra H.265 Compression


• Ultra 265/H.265/H.264 video formats
• 64 channel input
• Third-party IP cameras supported with ONVIF conformance
• Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
• Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840×2160) resolution



PRO SERIES VPRO-NVR-64RR-16H-U 64 Channel Network Video Recorder with Redundant Power and Ultra H.265 Compression

Features:

  • Ultra 265/H.265/H.264 video formats
  • 64 channel input
  • Third-party IP cameras supported with ONVIF conformance
  • Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
  • Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840×2160) resolution
  • HDMI1, HDMI2 and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Redundant power supply optional
  • 2 decoding cards optional, up to 12-ch HDMI
  • HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60
  • 16 SATA HDDs, up to 10TB for each HDD
  • 2 mini SAS Interfaces
  • 12V power output
  • ANR technology to enhance the storage reliability
  • Cloud upgrade
  • Supports N+1 Hot spare
Weight 22.05 lbs
Dimensions 18.8 × 19 × 5.1 in
VIDEO/AUDIO INPUT
IP Video Input 16-ch
Two-way Audio Input 1-ch, RCA
NETWORK
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
VIDEO/AUDIO OUTPUT
HDMI/VGA Output HDMI:

4K (3840×2160) @30, [email protected],

[email protected], 1600×[email protected], 1280×[email protected],

1280×[email protected], 1024×[email protected]

VGA:

[email protected], [email protected], 1280×[email protected],

1280×[email protected], 1024×[email protected]

Recording Resolution 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16
DECODING
Decoding format Ultra265/H.265/H.264
Live view/ Playback 8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF
Capability 2 x [email protected], 3 x [email protected], 4 x [email protected], 5 x [email protected], 8 x [email protected], 16 x [email protected]
HARD DISK
SATA 4 SATA interfaces
Capacity up to 6TB for each disk
EXTERNAL INTERFACE
Network Interface 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0
GENERAL
Power Supply 12V DC Power Consumption: ≤ 15W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90%

RH(non-condensing)

Dimensions(W×D×H) 440mm × 344mm ×50mm (17.3″ × 13.5″ ×2.0″)
Weight (without HDD) ≤ 3.15 Kg (6.94 lb)
