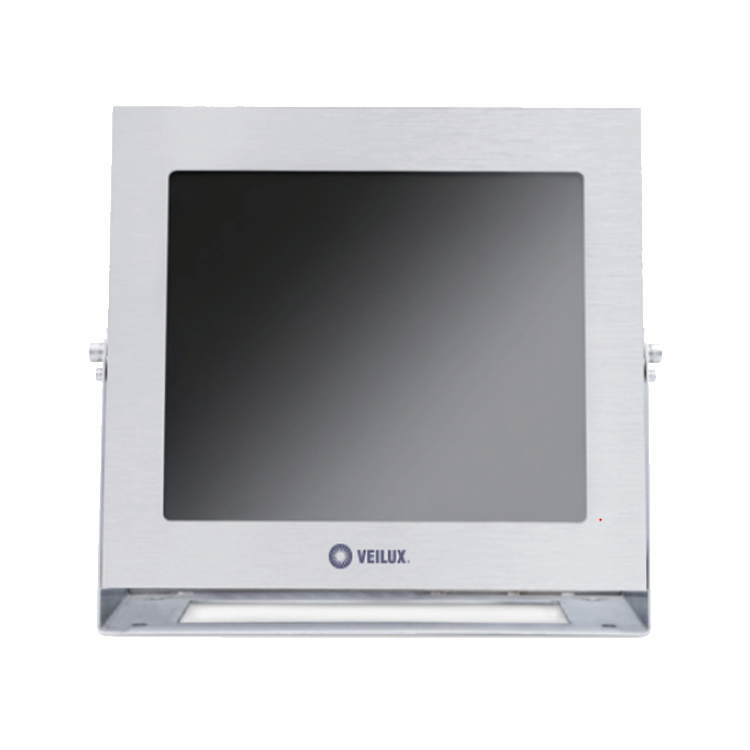

Veilux SVEX-171-Z 17″ Explosion/Corrosion Proof Monitor


  • Designed for use in Ex-proof or High Corrosion Areas
  • Available in 304 or 316L Stainless Steel
  • Composite Video Signal Input
  • Adjustable Watching Angle
  • IP68

*Note. This is a special order item. Allow 4-6 weeks for delivery.

SVEX-171-Z Ex-proof monitor is specifically designed for high corrosion and instable environments and to work with other explosive proof components. Its flexibility of use makes it perfect for a control room or directly positioned in an ex-proof area.

SVEX-171-Z features a 17-inch LCD plate with a resolution of 1024 x 768, and a pixel distance 0.297mm. VGA port and standard video port, supports NTSC and PAL mode. Display widow s made with special steel glass which make this monitor durable and dust proof. The unit can also handle AC100~240V voltage. SVEX-171-Z can handle working conditions under -45ºC to + 80ºC. This Monitor can either be set on a desk, flat surface or wall mount brackets.

This monitor is available in 316L or 304 Stainless Steel.

Features:

  • Designed for use in ex-proof or high corrosion areas
  • Quality LCD display
  • Composite video signal input
  • Compact design
  • Easy transport
  • Adjustable watching angle
  • IP68
  • Indoor & outdoor installation
  • Avoid rain wash

*Note. This is a special order item. Allow 4-6 weeks for delivery.

Weight 99.21 lbs
Dimensions 21.6 × 7.87 × 14.29 in
Accessory Type

Materials

CERTIFICATE
Certificate Mark Ex d IIB T6 Gb / Ex tD A21 IP68 T80ºC
Certificate No CNEx19.0326
Standards Q/320412ZAF014-2018
MECHANICAL
Housing Carbon steel, Stainless steel 304 or 316L
IP IP68
Cable thread hole 4pcs G3/4 or NPT3/4 or M25 x 1.5
ELECTRICAL
Voltage AC100~240V
Power 50W
Surge Protect Optional, TVS6000V surge protect
AMBIENT
Ambient Temperature -25 to +60° / -45 to +80ºC
Air Pressure 80Kpa to 106Kpa
Relative Humidity ≤95% (no condensation)
Size 549 x 200 x 363 (mm)
Weight 45kg
White Luminance 400cd/m2
Contrast 600:1
Optical Response Time 40 (Type, On/Off)
Color 16.7M
RoHS Compliance Yes
Connector Port HDMI, VGA, or BNC
Cable Integrated cable 2m long
