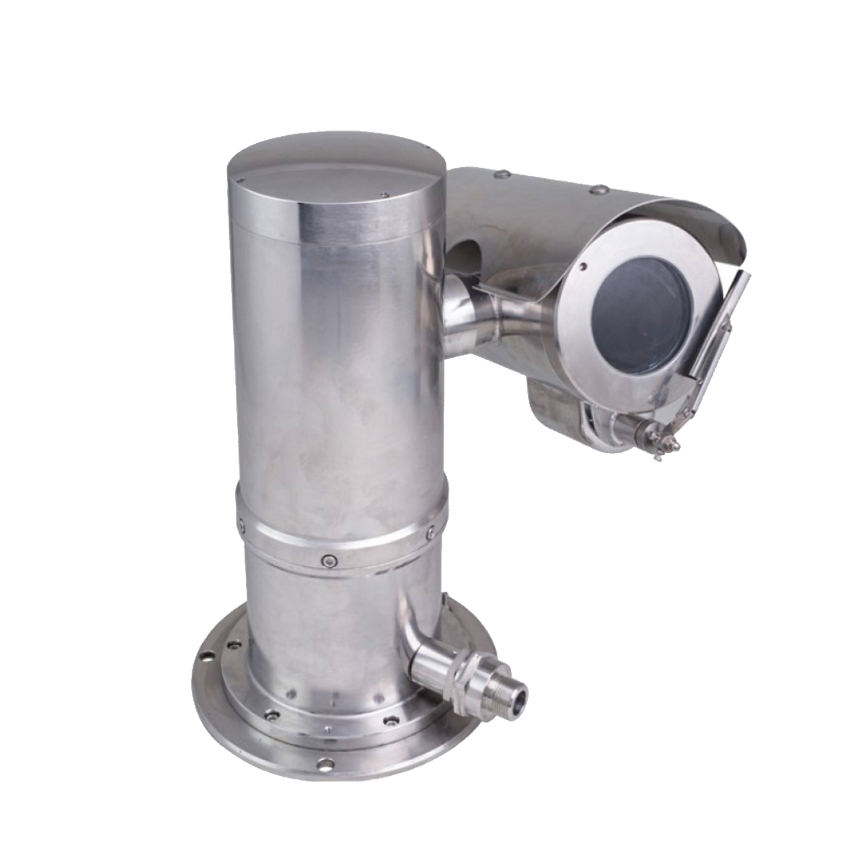

Veilux SVEX-610-2M20X-ZN Explosion Proof Integrated Camera

Availability:

In stock


  • Applicable for Gas Zone 1, Zone 2,
  • Available in Stainless steel 304 or 316L enclosure
  • Weather Proof IP68(1.2m/45min)
  • Strong tempered glass, fit for hydrofluoric acid area
  • Intelligent window defroster design

Note: This is a special order item. Allow 4-6 weeks for delivery.

The Veilux SVEX-610-2M20X-ZN Explosion Proof Integrated Camera features a progressive scan CMOS image sensor and a 20x zoom lens. Additionally, the surveillance camera incorporates 3D digital noise reduction for crisp and clear footage without any static. Continuous 360 degree pan helps ensure that you never miss a suspicious event. Further, the security camera has a 304 or 316L stainless steel housing for use in highly corrosive environments. An IP68 rating makes the device perfect for outdoor surveillance or installation in wet environments.

Features:

  • ATEX, IECEx Approved;
  • Applicable for Gas Zone 1, Zone 2, (Class II A, IIB, IIC, T1-T6 group) Dust Zone 21, 22.
  • Certified for the latest standards IEC/EN60079 (2014)
  • Stainless steel 304 or 316L enclosure
  • Surface optional electro-polished or painting
  • Weather Proof IP68(1.2m/45min)
  • Wide voltage input: AC100-240V or AC24V
  • Strong tempered glass, fit for hydrofluoric acid area
  • Intelligent window defroster design
  • Auto temperature adjust kit for aggressive area
  • High precision wiper , support user-defined
  • Auto temperature adjust kit for aggressive area
  • Symmetrical balancing design
  • Intelligent long focal speed limit, fit for long distance monitoring

Note: This is a special order item. Allow 4-6 weeks for delivery.

Weight 66.1 lbs
Dimensions 11.61 × 14.17 × 16.53 in
Camera Type

IP Rating

Lens Size

4.7 – 94mm

Materials

CERTIFICATE


Certificate Mark



2G Ex db IIC T6 Gb,

2D Ex tb IIC T80ºC Db

Certificate No Presafe 17 ATEX 11328X, IECEx PRE 18.0030X
Standards IEC/EN60079, ONVIF, CGI, GB/T28181, PISA
MECHANICAL
Housing Stainless steel 304/316L
IP IP68
Cable thread hole 1pcs M25×1.5
Sun-shield yes
ELECTRICAL
Voltage 100~240V AC or 24V AC / AC80~265V
Power 50W/70W
Surge Protect Optional
Optical Fiber Output Optional
AMBIENT
Ambient Temperature -40°C~+60°C
Air Pressure 80kPa~120kPa
Relative Humidity ≤95%RH(+25°C)
PAN & TILT
Horizontal Continuous 360°
Horizontal Speed 0.1~45°/s
Vertical -90°~90°
Cruise Scan Support
Keep Watch Support
Preset 64/128/255/300
Resume Function Support
Auto Cruise Support
Auto Scan Support
ALARM
Alarm Input 2-channel/ 7-channel
Alarm Output 1-channel, action with alarm


Intelligent Alarm

Audio detective, move detective, video shield, network inte
CAMERA
Image Sensor 1/2.8″ Progressive Scan CMOS
Lens 20X ,4.7-94mm
Aperture Range F1.6-F3.5
Angle of View 61.4-29 degree (wide -tele)


Min Illumination

Color: 0.04Lux @ (F1.6, AGC ON) B/W: 0.004Lux @ (F1.6, AGC ON)
Day & Night ICR
S/N Ratio >50dB (AGC off)
Gain Auto/Manual
CAMERA (CONTINUED)
Digital Zoom 12X


White Balance

Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/ Fluorescent Lamp
WDR ON/OFF, 15 levels adjustable
DNR 3D DNR
BLC ON/OFF


Image setting

Zoom camera module function can be adjustable by client software or web browser
GENERAL
Cable Integrated cable
Dimensions 295 x 390 x 420 (mm)
Weight 30Kg
Mounted wall, pole

SVEX-610-2M20X-ZN Spec Sheet

Download
