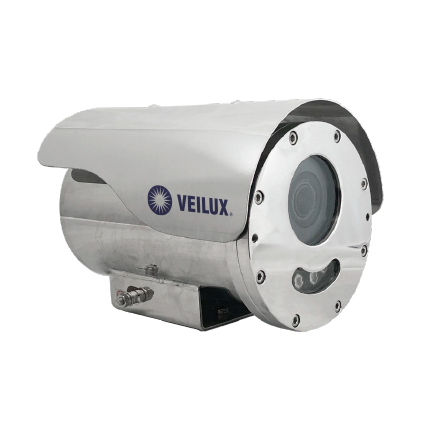

SVEX-B25Z-Z Explosion and Corrosion Proof 2MP or 4MP Bullet Camera with Infrared Light

Availability:

Out of stock


  • Class I Div I
  • Stainless steel 304 or 316L corrosion proof for marine area
  • Enclosure Protection: IP68
  • Fit for gas zone 1, zone 2, dust zone 21, 22
  • Motorized lens 2.8-12mm
  • Available in 2MP or 4MP Resolution

Note: This is a special order item. Allow 4-6 weeks for delivery.

SVEX-B25Z-Z Explosion and Corrosion Proof 2MP or 4MP Bullet Camera with Infrared Light

Features:

  • Class I Div I
  • Stainless steel 304 or 316L corrosion proof for marine area
  • Optional electropolished or corrosion resistant paint finish
  • Enclosure Protection: IP68
  • Exd II CT6 Gb/ Ex tD A21 IP68 T80°C
  • Fit for gas zone 1, zone 2, dust zone 21, 22
  • Power input: DC12V or POE power supply
  • With lights for night vision: 0-30m distance
  • Camera: 2MP vari-focal bullet camera
  • Motorized lens 2.8-12mm
  • Optional Audio/alarm I/O
  • Application: gas zone 1, 2; dust zone 21, 22.
  • Available in 2MP or 4MP Resolution

Note: This is a special order item. Allow 4-6 weeks for delivery.

Camera Type

Resolution

2MP, 4MP

Lens Size

2.8 ~ 12mm

IR Lighting Distance

Materials

Specifications

CAMERA
Atmospheric pressure 80KPa~110Kpa
Ambient Temperature –20°c~+60°C
Relative Humidity ≤95% (+25°C)
Ex-proof mark Exd II CT6 Gb/ Ex tD A21 IP68 T80°C
Hazardous Location

Classification

Class I Div I
Explosion proof Certified CNEx 16.2526
Ingress Protection IP68
Housing Material Stainless Steel 304 or 316L
Image Sensor 1/2.7″ Progressive Scan CMOS
Max. Image Resolution 2.0 megapixel


Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (704*576), Max 30fps
Min. Illumination: 0.01Lux @(F1.6,AGC ON), 0 Lux with IR
Shutter Auto/ Manual, 1/100,000 sec
Lens 2.8 – 12 mm, motorized lens
DORI DISTANCE


DORI DISTANCE

Lens(mm) Detect Observe Recognize Identify
2.8 42 16.8 8.4 4.2
12 180 72 36 18
Angle of View (H) 112.7-28.1°
Angle of View (V) 60.1-15.4°
Angle of View (O) 146.5-33.2°
Day& Night: IR cut filter with auto switch
S/N >52dB
Image Enhancement 2D/3D DNR
HLC, BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 8 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
WDR DWDR
Video output 1 RJ45 100M Base-TX Ethernet
Edge Storage MicroSD, Up to 256GB
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 type Baseline Profile, Main profile
Compatible ONVIF (Profile S, Profile G, Profile T), API


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible integration ONVIF (Profile S, Profile G, Profile T), API
Light night vision 0-30m
Voltage Input DC 12V±25%, PoE (IEEE 802.3af)
Power consumption 7.5w Max
Cable output Integrated cable, 2m long
Cable gland 1pcs G3/4 or M25*1.5
Overall dimension 319*144*168mm (LxWxH)
Net weight 7.5 kg

SVEX-B25Z-Z Spec Sheet

Download

SVEX-B25Z-Z Spec Sheet
