SVEX-HIR7-Thermal-2M30X Explosion Proof Thermal Imaging Camera for Industrial Safety (316)

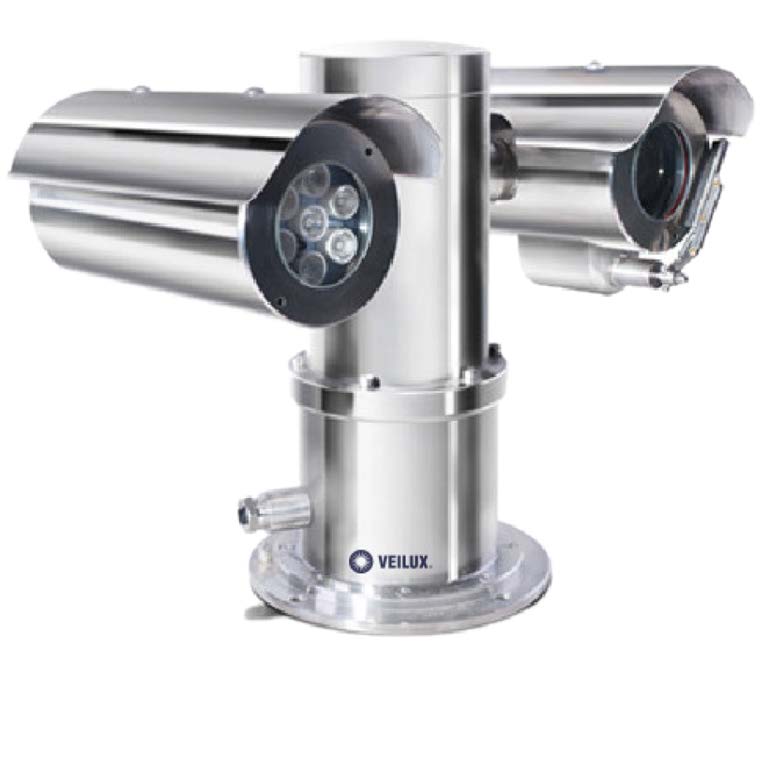

SVEX-HIR7-THERMAL-2M30X Explosion Proof Thermal Imaging Camera for Industrial Safety

The SVEX-HIR7-Thermal-2M30X-XXXXX-ZN is a high-performance explosion proof thermal imaging camera for industrial safety, designed to deliver reliable surveillance in hazardous, corrosive, and high-risk environments. Built with corrosion-resistant 316L stainless steel, this rugged system is certified to ExdIIC T6 Gb/Ex tD A21 IP68 T80°C and is ideal for use in marine vessels, chemical plants, offshore platforms, and other industrial sites with explosive atmospheres.

Engineered for Extreme Conditions

With an IP68-rated enclosure, electropolished or coated finish, and heavy-duty construction, the SVEX-HIR7 provides all-weather protection in harsh environments. It operates in temperatures from –25°C to +60°C (optional –50°C low temp version) and maintains reliable performance in high humidity (≤95% RH). The built-in sunshield and optional wiper system further protect the lens from sunlight, dust, and debris.

Dual Imaging: Visual and Thermal Monitoring

The SVEX-HIR7 offers a powerful combination of HD visible imaging and optional thermal vision to ensure continuous monitoring in both day and night conditions.

Visible Camera Features:

• 1/2.8″ Progressive Scan CMOS Sensor

• Full HD 1920 x 1080 resolution at 30fps

• 30× Optical Zoom (4.5–135 mm) + 12× Digital Zoom

• Day/Night ICR filter with low-light sensitivity: 0.05 Lux (Color), 0.01 Lux (B/W)

• 3D DNR, Digital WDR, BLC, Auto/Manual White Balance

• H.264/MJPEG Video Compression with Dual Video Output

Thermal Imaging (Optional):

• Germanium lens with AR/DLC coating

• Multiple lens options (7.5mm to 50mm)

• Detection ranges up to 1500m (person) and 3900m (vehicle)

• Operates in total darkness, smoke, fog, or harsh weather

Precision Pan-Tilt Control

Designed for accurate targeting and area coverage, the SVEX-HIR7 features a 360° horizontal auto-tracking and ±90° tilt range, powered by a durable stepping and worm gear motor. PTZ capabilities include:

• Manual rotation speeds: 0.1° to 45°/s

• 128 preset positions with patrol and cruise functions

• Intelligent zoom speed adjustment

• Mechanical self-lock to maintain position

• Optional integrated wiper system for clear vision

Ideal for High-Risk Industrial Applications

The SVEX-HIR7-Thermal-2M30X-XXXXX-ZN is a top choice for industrial sites requiring reliable and rugged surveillance in explosive or corrosive environments. Typical applications include:

• Offshore Oil Rigs & Refineries

• Petrochemical Processing Plants

• Marine & Shipping Ports

• Wastewater Treatment Facilities

• Hazardous Goods Warehousing

This explosion proof thermal imaging camera for industrial safety delivers dual-spectrum monitoring, intelligent tracking, and long-distance visibility to help protect both personnel and infrastructure in the world’s toughest environments.

This is a special order item. Allow 4-6 weeks for delivery.
