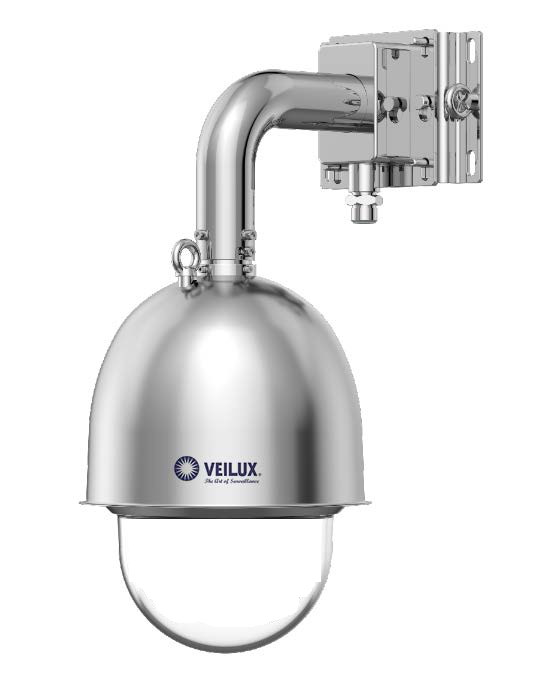

SVEX‑HQ60‑Z Explosion Proof PTZ Speed Dome Housing for Hazardous Environments
The SVEX-HQ60-Z Explosion Proof PTZ Speed Dome is a rugged, corrosion-resistant surveillance housing designed to deliver 360° visibility in hazardous industrial zones. Certified with ATEX and IECEx standards and constructed from stainless steel, this dome housing supports high-speed PTZ cameras, ensuring safe and reliable performance where explosive gases or combustible dust are present. With weather-sealed protection, flexible power options, and high-speed maneuverability, it is purpose-built for petrochemical, offshore, and dust-prone environments.
Certified Safety in Explosive Zones
With an Ex db IIC T6 Gb / Ex tb IIIC T80°C Db explosion-proof rating, the SVEX-HQ60-Z is fully certified for deployment in Gas Zones 1 and 2 and Dust Zones 21 and 22, making it ideal for volatile environments. The housing is crafted from 304 or 316L stainless steel, with optional electropolished or corrosion-resistant paint finishes to withstand corrosive atmospheres. Its ingress protection ratings of IP66, IP68 (2m/2h), and IP69 ensure complete defense against dust, water jets, and temporary submersion.
Precision PTZ Surveillance with High-Speed Control
Engineered for compatibility with high-speed dome cameras, the SVEX-HQ60-Z offers smooth manual and preset control:
-
Pan Range: 0° to 360° continuous rotation
-
Tilt Range: –20° to +90°
-
Manual Control Speeds: Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–150°/s
-
Preset Speeds: Pan: up to 600°/s, Tilt: up to 500°/s
This dome housing supports up to 300 preset positions, 8 tour paths (32 presets each), 5 patterns, and 5 scanning modes. It also features power-off memory, speed adjustment, and customizable idle motion actions including preset, tour, pattern, or scan modes. The integrated controller recognizes DH-SD, Pelco-P, and Pelco-D protocols, ensuring smooth integration into various PTZ control systems.
Engineered for Harsh Industrial Conditions
Designed to operate in extreme weather and industrial conditions, the SVEX‑HQ60‑Z functions in ambient temperatures from –40°C to +60°C and air pressure from 80kPa to 110kPa. The housing supports AC 24V ±25%, 100–240V AC, or PoE+ (802.3at) power inputs and consumes less than 75W during operation. Built-in electrical protections and integrated cabling enhance reliability for long-term deployment in challenging installations.
Flexible Installation and Durability
With a weight of 20 kg (44 lbs) and dimensions of 282.5 × 282.5 × 408.1 mm (11″ × 11″ × 16″), the SVEX-HQ60-Z can be securely installed on walls or ceilings. Its heavy-duty stainless steel build offers long-lasting protection in environments exposed to chemicals, saltwater, dust, and intense mechanical wear.
Ideal Applications
The camera is purpose-built for environments such as:
• Oil & gas fields and refineries
• Chemical and petrochemical plants
• Offshore platforms and marine facilities
• Explosives or fireworks factories
• Grain silos, mills, and combustible dust areas
Wherever full-range PTZ visibility and certified explosion-proof protection are needed, the SVEX-HQ60-Z Explosion Proof PTZ Speed Dome provides trusted durability and performance.
