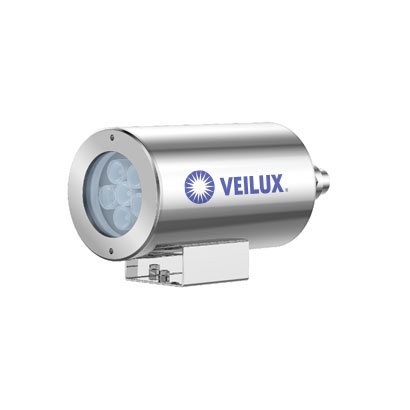

Veilux SVEX-IR Explosion-proof Infrared Lamp

Availability:

In stock


  • IP68
  • IR Wavelength: 850nm / 940nm
  • View Distance: 30~100m
  • View Angle: 15 ~ 60 (optional)

Note: This is a special order item. It may take  6-8 weeks for delivery.

The Veilux SVEX-IR Explosion-proof Infrared Lamp is a perfect addition to our explosion-proof cameras. Additionally, the IR lamp is capable of illuminating distances from 30-100 meters. The device has an optional viewing angle of 15-16 degrees. Further, the unit has an operating temperature of -13*F ~ 140*F (-25*C ~ +60*C). An IP68 rating ensures the lamp is safe for outdoor use and installation in wet environments.

Features:

  • Ex-Proof Marking: Exd II CT6 (H )/DIP A21 TA, T6
  • IP68
  • Operating Temperature -13 F ~ 140 F (-25 C ~ +60 C)
  • Input Voltage: 85VAC~265VAC 50Hz
  • Current: <250mA
  • IR Wavelength: 850nm / 940nm
  • View Distance: 30~100m
  • View Angle: 15 ~ 60 (optional)
Weight 11.02 lbs
Dimensions 4.9 × 4.9 × 8.7 in
Accessory Type

IP Rating

Materials

IR Lighting Distance

Specifications
Ex-Proof Marking Exd II CT6 (H2)/ DIP A21 TA, T6
Enclosure Protection IP 68
Outer Dimension φ125mmX220mm
View Distance 50m
Net Weight 5 Kg
Material SS304/SS316L
Operating Temperature -13 F ~ 140 F (-25 C ~ +60 C)
Input Voltage 85VAC~265VAC, 50 HZ
Current <
View Distance 30 ~ 100m
View Angle 15 ~ 60 (optional)
Net Weight 11.02 lb (5 Kg)
Atmospheric Pressure 80KPa~106KPa
Relative Humidity <95% (+25 C)
Certifications CNEx: -ExdII CT6 / -DIP A20 TA, T6
CNEX Certificate Number CNEx: 12.3148
Ingress Protection IP68
Voltage Input AC85-220V, AC24V, DC24V, DC12V, optional
Power Supply (within) AC85-265V
Tempered Window Glass φ 100x thick:8mm (in), φ 80x thick: 12 mm (in)
Overall Dimension 10.4 x 4.9 x 5.9 in
Wiper No
Nanometer Filmed Window Glass Yes
IR Lamp Array
IR Projection Angle 30 – 60
IR Wavelength 820 nm / 940 nm
IR Lamp Visible 164 ft (50m)
Output AV
