SKU: SVEX-PIP-2M-50MM

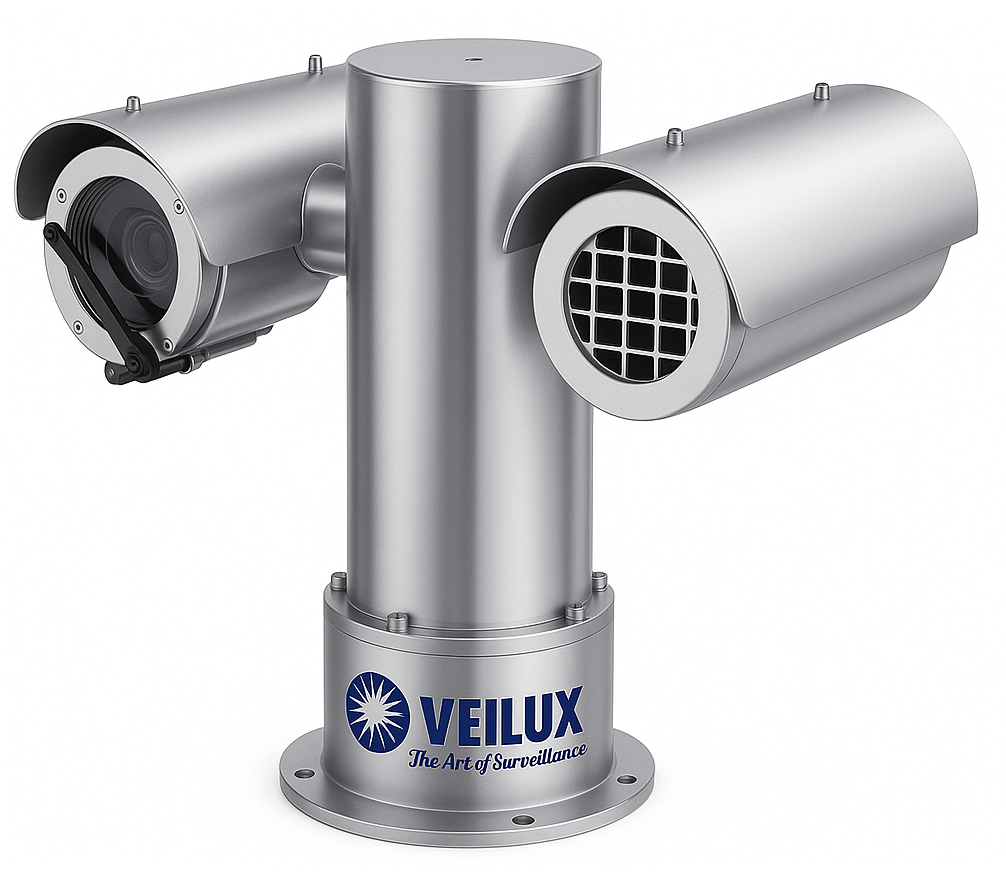

SVEX-PIP-2M-50MM Explosion-Proof Thermal PTZ Camera
Key Features:
- • Stainless steel 304 or 316L for corrosion resistance
• II 2G Ex d IIC T6 Gb / II 2D Ex tb IIIC IP68 T80℃ Db
• Supports dual-sensor (thermal + visible) cameras
• Smart windshield wiper
• Auto aperture and focus for remote monitoring
• Auto baud rate/protocol recognition; software address setting
• Precision motor for smooth, stable, jitter-free movement
• Nano-coated glass resists oil, dust; no halation
• Low power design with internal heat dissipation
• Explosion-proof, waterproof, anti-corrosion for indoor/outdoor use
2MP
Image Resolution
Motorized
Lens
4.3-129 mm
Motorized Lens
30x
Optical Zoom
IR Range
304
Stainless Steel
The Veilux SVEX-PIP-2M-50MM Explosion-Proof Thermal PTZ Camera features a 2MP lens. Additionally, the surveillance camera has a 304 stainless steel construction for durable protection and high corrosion resistance. The unit incorporates a Smart windshield wiper to keep your lens clear and footage unobstructed. Further, the security camera has an operating temperature range from -40°C ~ 60°C.
| Certificate | |
|---|---|
| ATEX | II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC IP68 T80℃ Db |
| Ex-Level | IP66 |
| Sensor | |
| Wavelength | 8~14μm |
| Detector | 640×512, 25Hz uncooled FPA Vox Detector (exchangeable camera module) |
| Thermal Imager | |
| Thermal Lens | 50mm fixed |
| Rotation Range | Horizontal: 0~360°, Vertical: ±90° |
| Image Processing | AGC, DDE |
| PTZ Function | |
| Rotation Speed | Horizontal: 0.1°/s ~ 40°/s, Vertical: 0.1°/s ~ 40°/s |
| Monitoring Locations | 300 locations can be set |
| Monitoring Location Setting Accuracy | ±0.1° |
| Communication | |
| Protocol | Pelco-D, Pelco-P, etc. |
| Baud Rate | 2400 / 4800 / 9600 bps |
| Communication Method | RS485 |
| Lens | |
| Focal Distance | 4.3–129mm, 30x |
| Horizontal View Angle | 65.5°–2.11° (Wide–Tele) |
| Aperture | F1.6 – F5.0 |
| Zoom Speed | Approx. 3s (Optical Wide–Tele) |
| Min Working Distance | 10–1500mm (Wide–Tele) |
| Other Specifications | |
| NETD | ≤[email protected], 300K |
| Atmospheric Pressure | 80kPa~106kPa |
| Temperature Range | -40°C ~ +60°C |
| Relative Humidity | ≤95% (+25°C) |
| Supply Voltage | AC220V |
| Material | 304 stainless steel (Optional: 316, 316L) |
| Inlet Hole Specifications | G-3/4″ × 1 |
| Electrical Connection | 10-core composite cable |
| Window | Φ65mm |
| Inner Size | Φ100 × 230mm |
| Installation Method | Bracket or base installation |
| Thermostat System | Optional |
