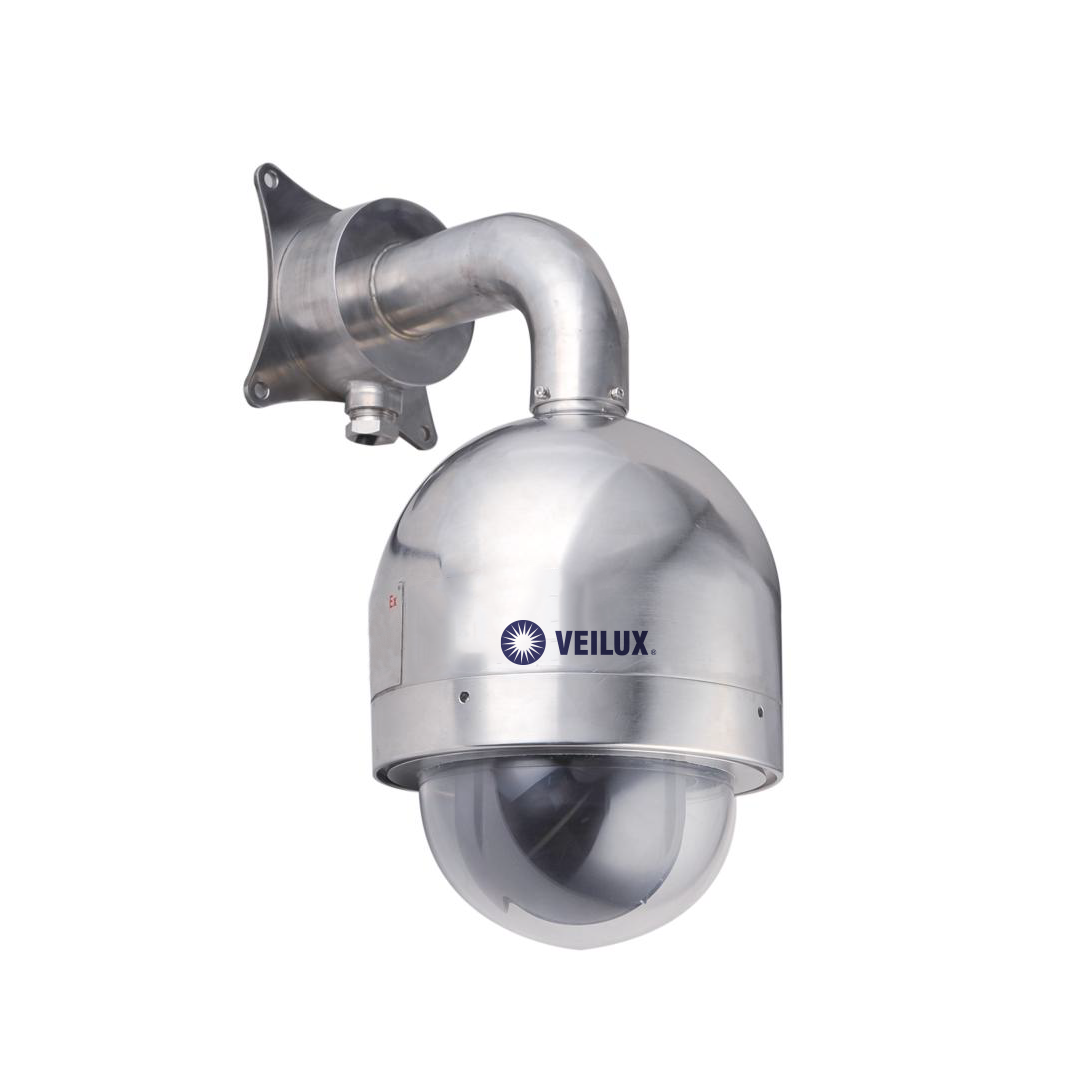

Veilux SVEX-Q70-AHD Explosion Proof Camera

Availability:

In stock


  • Sensor: 1/28″ progressive Scan CMOS
  • Housing: Stainless steel 304 or 316L.Pan: 360°
  • Alarm: 2/1

This is a special order item. Allow 4-6 weeks for delivery.

The Veilux SVEX-Q70-AHD Explosion Proof Camera features a progressive scan CMOS with a 32x zoom 2MP lens capable of recording footage in 1920 x 1080 resolution. Additionally, the surveillance camera incorporates a 304 or 316L stainless steel housing for durable protection and high corrosion resistance. An IP68 rating allows for safe outdoor use and installation in wet environments. Further, the security camera utilizes 360-degree pan to ensure you never miss a suspicious event.

Features:

  • Sensor: 1/28″ progressive Scan CMOS
  • 2MP Resolution (1920 x 1080)
  • 16x Digital Zoom
  • Certificate Mark: Exd II C T6 Gb/Ext DA21 IP68 T80°C
  • Housing: Stainless steel 304 or
  • Temperature: -25°C to +60°C
  • Pan: 360°
  • Alarm: 2/1
Weight 33.1 lbs
Dimensions 9.84 × 9.84 × 13.85 in
CAMERA
Certificate Mark Exd II C T6 Gb/Ext DA21 IP68 T80°C
Certificate No CNEx15 2504X
Standards Q/320412 ZAF026-2015
MECHANICAL
Housing Stainless steel 304 or 316L
Sunshade Optional
IP IP68
Cable thread hole 1pcs G3/4 or NPT3/4
ELECTRICAL
VOLTAGE AC24V (OR AC85V~AC265V )
Power 25W /35W (with thermostat)
Surge Protect Optional TVS6000V surge protect
AMBIENT
Ambient Temperature -25 to +60°C
Air Pressure 80Kpa to 106Kpa
Relative Humidity <95% (no condensation)
PAN & TILT
PAN 360°
Speed Pan manual speed: 0.1° to 250°/s
Tilt Range -5°~90° (Auto Flip )
Tilt Speed Tilt manual speed: 0.1° to 150°/s Tilt preset speed: 150°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 10 patrols up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Support
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/D ay Mode/Night Mode/None
PTZ Position Display ON/OFF
OPTIONAL ALARM
Alarm Input 2
Alarm Output 1
INPUT /OUTPUT
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
UTC Function UTC protocol
CAMERA
Image Sensor 1/2.8″ progressive Scan CMOS
Max Image Resolution 1920 x 1080
Frame Rate 50Hz:[email protected] (1920*1080) 60Hz:[email protected] (1920*1080)
Min Illumination Color 0 005Lux/F1 6 B/W: 0 001Lux/F1 6
White Balance Auto/Manual/Hauto/Atw/Indoor/Outdoor
AGC Auto/Manual
DNR 30 DNR
WDR >120 dB
Shutter Time PAL: 1/1 sec~ 1/10,000 sec , NTSC: 1/1 sec ~ 1/10,000 sec
Day & Night IR cut filter
Digital zoom 16x
Privacy mask 8 programmable privacy masks
BLC Yes
HLC Yes
EIS Yes
Regional Focus Yes
LENS
Focal Length 4.8 mm to 153 mm 32× optical
Zoom Speed Approx. 5.6 s (optical, wide to tele)
Aperture Range F1.2 to F 4.4
Angle of View Horizontal field of view: 55.6° to 2.04° (wide to tele) Vertical field of view: 32 4° to 1 14° (wide to tele)
Minimum Working Distance 10mm-1500mm (Wide-Tele)
GENERAL
Cable Integrated cable
Size Ø 250 x 352 (mm)
Weight 15kg
Mounted wall pole
