SVEX-Q70-ZN
, , ,

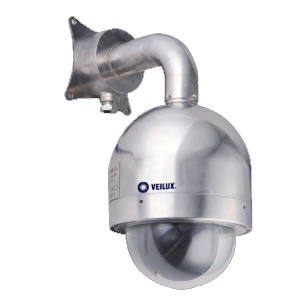

Veilux SVEX-Q70-ZN 2MP Explosion-proof Camera w/33x

Availability:

In stock
  • Wide voltage:AC24V, AC100-240V
  • Available in 304 or 316 stainless steel
  • Intelligent telephoto speed limits
  • 360° endless Auto tracking
  • Fits a 5″ or 6″ in. dome camera

Note: This is a special order camera. Allow 4-6 weeks for delivery.

The Veilux SVEX-Q70ZN Explosion Proof PTZ Camera features a progressive scan CMOS with a 30x optical zoom lens capable of recording footage in 1920 x 1080 resolution. Additionally, the surveillance camera utilizes H.265, H.264 and MJPEG compression to efficiently transmit and store data by reducing bandwidth. 360-degree endless auto tracking ensures that you never miss a suspicious event. Further, the security camera is constructed with a 304 or 316L stainless steel housing for high durability and corrosion resistance.

Features:

  • Highest protection: IP68
  • Double ex-proof marking: EX d & Ex tD
  • Wide voltage:AC24V, AC100-240V
  • Stainless steel304/ 316L housing
  • Intelligent telephoto speed limits
  • 360° endless Auto tracking
  • 300 points patrol preset
  • Wall/ceiling mounted version
  • Handles a 5″ or 6″ in. dome camera



Note: This is a special order camera. Allow 4-6 weeks for delivery.

SKU: SVEX-Q70-ZN Categories: , , , Tags: , , , , ,
Weight 26.46 lbs
Dimensions 8.4 × 8.4 × 22.4 in
Camera Type

,

IP Rating

Lens Size

4.5 – 148.5mm
Materials

Explosion proof Marking
Marking Ex d II CT6 Gb/ Ex tD A21 IP68 T80° C
CNEX Certification No. CNEx15.3070X
Mechanical
Enclosure material Available in 304 or 316L stainless steel
Ingress protection IP68
Threaded hole 1pcs G3/4 or NPT3/4
Wiper No
Rotation speed 0~200°/Second
Sunshade Optional
Net weight 15Kg
Dimension Φ2 13 x 213 x 570 (mm)
Environment
Mount wall, pole
Operating temperature -25 to +60℃
Air pressure 80KPa~106KPa
Relative humidity ≦95% (no condensation)
Electrical
Working voltage AC24V ± 25% or DC24V±25% or POE(IEEE802.3at)
Power Max 16W
Optional choice Heater, cooling, thermostat for below-10°C temperature
Electric current 2800mA
Communication protocol TCP/IP/PELCO-D/PELCO-P, other
Output mode RJ45
Preset 300 Points, accuracy <0.1° (optional 256 points)
Cable connection Network cable +3-core power
CAMERA
Image Device 1/2.8’’ 2MP Progressive Scan CMOS
Resolution 1920(H)x1080(V)
Minimum Illumination: Color 0.001 Lux / F1.5 B/W: 0.0001 Lux / F1.5
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/ Sodium lamp
AGC Auto/Manual
S/N Ratio: ≥ 52dB
Shutter Time Auto/ Manual, 1sec~ 1/10,0000 sec
Day & Night Auto ICR
Digital Zoom 16X
Privacy Masking 8 privacy masks programmable
Auto Focus Auto / Semi-automatic / Manual
3D DNR support
BLC support
WDR 120dB
HLC support
Defog support
Focal Length 4.5-148.5mm, 33X optical
Zoom Speed Approx.2.7s(Optical Wide-Tele)
Angle of View 56.7 to 2.28 degree (Wide-Tele)
Minimum Working Distance 0-1500mm(Wide-Tele)
Aperture Range F1.5-F4.0
Proportional zoom Rotation speed can be adjusted automatically
Movement range (pan) 360° endless
Pan speed Configurable, from 0.1°/s to 250°/s, preset speed:300°/s
Movement range(tilt) From -5° to 90°
Tilt speed Configurable, from 0.1°/s to 150°/s, preset speed:200°/s
preset 300
Patrol scan 8 patrols, up to 32 presets per patrol
Pattern scan 4 pattern scans, record time over 10 minutes for each scan
Pack action Preset/pattern scan/ patrol scan/ auto scan/ tilt scan/ Random scan/ frame scan/ panorama scan
Scheduled Task Auto scan/ frame scan/random scan/ patrol/pattern/ preset/ panorama scan/tilt scan/ dome reboot/dome adjust/aux output
Detection Intrusion Detection, Line crossing detection
ROI encoding Main stream, sub-stream and third stream respectively support two fixed areas.
Max resolution 1920*1080
Main stream 50Hz:25fps(1920*1080,1280*960,1280*720) 50fps (1280*960,1280*720)60Hz:30fps(1920*1080,1280*9 60,1280*720) 60fps(1280*960,1280*720)
GENERAL
Sub-stream 50Hz:25fps(704*576,640*480,352*288)

60Hz:30fps(704*480,640*480,352*240)
Third stream 50Hz:25fps(1920*1080,1280*960,1280*720.704*

576,640*480,352*288)

60Hz:30fps(1920*1080,1280*960,1280*720,704*

480,640*480,352*240)




Video compression





Ultra 265, H.265, H.264, MJPEG
Audio compression G.711
Protocols IPv4 IPv6, HTTP, HTTPS, 802.1x,Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP UDP, IGMP, ICMP, DHCP,PPPoE
Simultaneous live view Up to 20 channels
User/ Host Up to 32 users

3 levels: administrator, operator and user


Security Measures



Password protection, Multiple access control
Optional Alarm input 2-ch alarm inputs
Optional Alarm output 1-ch alarm output
Optional Audio Input 1-ch audio input
Optional Audio Output 1-ch audio input
Network interface 1pcs of RJ45, support 10M/100M/1000M
Web Browser IE7+ Chrome 18+, Firefox 5.0+, Safari5.02+

SVEX-Q70-ZN Spec Sheet

Download
