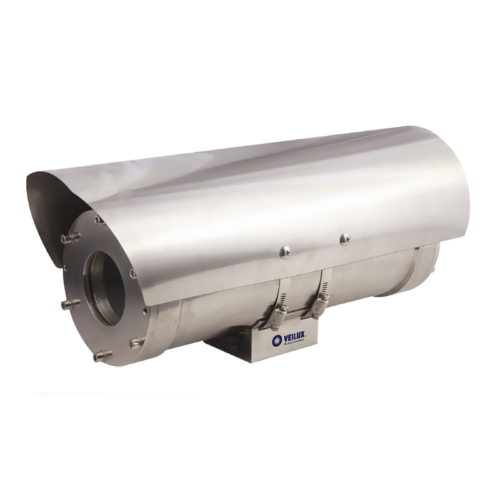

SVEX-T100-2M30X Explosion-Proof Fixed Camera with 30X Zoom

SVEX-T100-2M30X Explosion-Proof Fixed Camera with 30X Zoom for Hazardous Gas and Dust Environments

The SVEX-T100-2M30X Explosion-Proof Fixed Camera with 30X Zoom is a high-performance surveillance solution designed for use in hazardous environments where explosive gases, flammable vapors, or combustible dust may be present. Certified to ATEX and IECEx standards, this rugged fixed-position camera features 30x optical zoom, high-resolution imaging, and an industrial-grade stainless steel enclosure, making it ideal for petrochemical plants, oil refineries, gas extraction sites, and other explosion-prone zones.

Certified Protection in Hazardous Zones

Built to operate safely in classified hazardous areas, the SVEX-T100-2M30X is available in configurations that meet strict explosion-proof requirements:

• Without optical fiber version:
  CE2460 Ex II 2G Ex db IIC T6 Gb / Ex II 2D Ex tb IIC T80°C Db

• With optical fiber version:
  Ex II 2G Ex db op or IIC T6 Gb / Ex II 2D Ex tb op pr IIC T80°C Db

Designed to meet the latest global standards the SVEX-T100-2M30X holds certifications from ATEX and IECEx and it is approved for use in:

• Gas Zones 1 & 2

• Dust Zones 21 & 22

This makes it ideal for industries including oil & gas, chemical processing, fuel storage, fireworks manufacturing, and grain silos.

Built for the Harshest Industrial Conditions

The SVEX-T100-2M30X’s enclosure is constructed from 304 or 316L stainless steel and features IP68-rated ingress protection, meaning it is completely dustproof and capable of withstanding submersion up to 2 meters for 45 minutes. Users can choose an electro-polished or painted finish, depending on the environmental exposure.

Other key mechanical features include:

• Strong tempered glass window, suitable for hydrofluoric acid areas

• Optional sun-shield for heat reflection in exposed locations

• Dual M25×1.5 or M27×1.25 cable thread holes

• Wall, pole, and corner mounting compatibility

The camera is rated for operation in temperatures from -40°C to +60°C (standard), or -40°C to +58°C for short enclosure configurations, withstanding air pressures between 80 and 110 kPa and humidity up to 95% (non-condensing).

Crystal-Clear Imaging with 30X Zoom and IR Support

At its core, the SVEX-T100-2M30X features a 2MP CMOS progressive scan sensor (1/2.8”), capable of delivering full 1080p (1920×1080) video at up to 60 frames per second. Paired with a 4.3–129mm motorized zoom lens, it provides 30x optical zoom and 16x digital zoom, making it ideal for wide-area overviews or precise inspection at a distance.

Other image enhancement features include:

• WDR (Wide Dynamic Range) up to 120dB

• Auto/manual iris control (F1.5–F3.4)

• Shutter speeds from 1/6s to 1/8000s

• IR-cut filter (ICR) for true day/night operation

• Minimum illumination:

  • 0.005 Lux (color, F1.6)

  • 0.0005 Lux (B&W, F1.6)

The camera includes integrated IR support, providing visibility in low-light or total darkness, ideal for remote night monitoring in dangerous zones.

Flexible Video Streaming and Intelligent Storage

This explosion-proof fixed camera supports triple video streams using H.265 or H.264 compression, allowing operators to configure multiple resolutions and bitrates to balance performance and storage requirements.

Recording and storage options include:

• Edge storage via MicroSD card (up to 128GB)

• Dual-path iSCSI network storage

• Motion detection and privacy masking zones

• Customized time and OSD overlays

These features make it ideal for integration into larger surveillance networks or as a standalone recording unit in remote or unmanned installations.

Robust Network Integration and Control

The SVEX-T100-2M30X supports a comprehensive set of protocols, including:

• TCP/IP, UDP, RTP, RTSP, HTTP/HTTPS, FTP, NTP, SNMP, IGMP, DDNS, DHCP, PPPoE, and L2TP

• ONVIF 2.4 and GB/T28181 for third-party compatibility

• Dual-alarm input and single-alarm output

• Audio I/O (1 in / 1 out)

• Video signal output and optional fiber connectivity

It can be controlled via RS485 using Pelco-D or Pelco-P protocols, with a configurable baud rate between 2400–19200bps.

Power Options and Surge Protection

The camera supports multiple voltage inputs for installation flexibility:

• AC100–240V 50/60Hz

• AC24V / DC24V

• PoE++ (48VDC, IEEE 802.3bt)

Its power consumption is rated at ≤36W, and optional TVS6000V surge protection ensures stable operation in areas prone to electrical interference or lightning strikes.

Ideal Applications

The SVEX-T100-2M30X is ideal for fixed-position surveillance in:

• Oil & gas platforms and refineries

• Petrochemical and chemical facilities

• Fireworks and explosive manufacturing

• Grain silos, feed mills, and dust-prone environments

• Fuel terminals, pipelines, and compressor stations

• Hazardous shipping, marine, and offshore installations

Its fixed design offers stability for continuous coverage of critical zones without the complexities of moving parts.

Built for Reliability, Designed for Safety

The SVEX-T100-2M30X Explosion-Proof Fixed Camera with 30X Zoom delivers unmatched durability, certified safety, and powerful imaging capabilities. With its rugged stainless steel build, long-range visibility, and secure network integration, it is the ideal choice for securing mission-critical hazardous locations.
