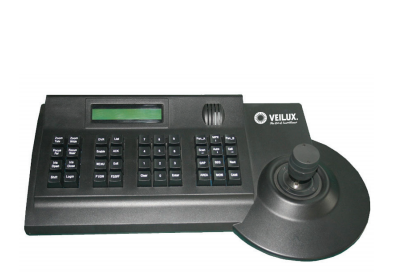

SVK-64 Joystick Keyboard

Veilux SVK-64 3-axis joystick keyboard

Controller For The Remote Control of CCTV Devices: Power, Pan / Tilt / Zoom Lens, AUX
Controls Up To Maximum 255 CCTV Receivers
Preset Control: 64 Positions Memory Set For Each Camera Multi-speed control Joystick
Built-In Requital Ability For Electricity Failure: Power, Auto, Pan, Preset Position
Built-In Back Light For LCD Window
3-Axis Joystick Control To Pan / Tilt / Zoom Movement
Can Be Connected With Up to 8 Sub-Keyboards
Camera, monitors, DVR selection
PTZ, DVR, Matrix Control

SKU: SVK-64 Category: Camera Controllers

Weight	7.7 lbs

Display	2 Lines by character LCD
Joystick	3 Axis
Lens control	Zoom, Focus, Iris, Pan, Tilt, Aux, Preset
Protocols	Pelco-D, Pelco-P, Factory
Devices supported	255 Cameras
Baud Rate	1200, 2400, 4800, 9600 bps
Communication Method	RS-485 (422)
Connector	RS-485 Modular Cable Connection with Junction Box Power Supplied Via Junction Box
Function Key	8
Preset position	128 points
Package	Junction Box, 5M Cable (Modular Jacks Both Ends)
Operating Distance	Max 1.2Km (When Using Shielded Twisted Pair Cable)
Power	12W
Operating Temperature	32°F ~ 104°F ( 0°C ~ 40°C )
Weight	7.71 (3.5Kg)
Dimension	337.5(W) x 50(H) x 153(D)mm
