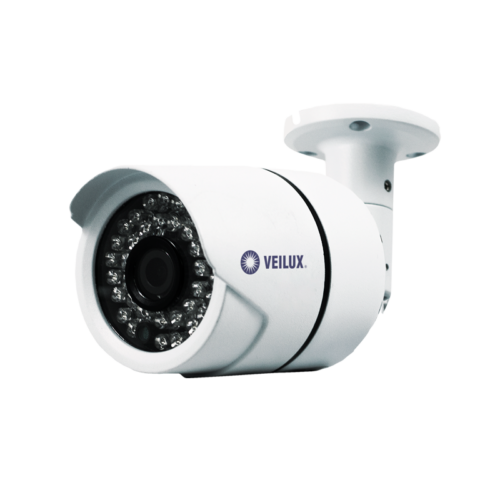

Veilux VB-4HDIR30-TVI Varifocal High Resolution Bullet Camera


  • TVI Video Output
  • 1/2.8” 4MP SONY CCD CMOS
  • Motion Detection
  • 3.6 mm Fixed Lens
  • Built-in IR LED 30pcs (Range: Indoor 35m/ Outdoor 25m)
  • IP-66

The Veilux VB-4HDIR30-TVI Bullet Camera features a Sony CMOS with a 4MP lens capable of recording footage in 2688 x 1520 resolution. Additionally, the surveillance camera incorporates IR LEDs to capture clear footage at nighttime and during low lighting conditions out to 35 meters. Motion detection ensures that you never miss a suspicious event and can help save on storage space. Further, the security camera operates over DC12V power supply for a strong and reliable connection. Digital wide dynamic range delivers crisp and clear footage in environments with harshly contrasting lighting conditions.

Features:

  • HD Resolution: 1200TVL
  • XDR, D-WDR (Digital Noise Reduction)
  • Motion Detection
  • Privacy Mask Function
  • 3.6 mm Fixed Lens
  • Video Output-TVI
  • Night View Distance Indoor 35m/ Outdoor 25m
  • IP66
Dimensions 5.5 × 5.5 × 4.3 in
Camera Type

Cameras Signal Type

TVI

Resolution

4MP

Lens Type

Fixed

Lens Size

3.6mm

IP Rating

Specifications
Image Sensor 1/2.8” 4 Mega Pixel Sony CMOS Sensor
Scanning System Progressive
Resolution 4.1 Megapixels NTSC/ PAL
Effective Pixels 2688(H)×1520(V), 4.1MP
Shutter Speed Auto/ Manual (1/50(1/60) ~ 1/100,000)
Min. Illumination 0.5 Lux (Color) (0 Lux IR LED ON)
S/N Ratio >50dB (AGC off)
AGC 1- 5 Levels
Day & Night Auto/ Color/ B&W/ Ext
White Balance ATW/ Manual/ AWC Push
Backlight 1 – 16 Levels
Mirror Off/ H/ V/ H&V/ Rotate
HLC On/ Off
Zone 2 Areas
Motion Off/ On
LSC On/ Off
Language Info
Day & Night System ICR
Video Output TVI
IR Led 30 units
Night View Distance Indoor 35m/ Outdoor 25m
Lens 3.6 mm Fixed Lens
Power Consumption DC12V Less than 150mA
Temperature Operating 14°F to 131°F (-10°c to 55°C)
Temperature Storage -4°F to 140°F (-20°C to 60°C)
Operating Humidity 10% – 85% RH
IP Rating IP66
Dimensions (WxDxH) Ø5.5” x 4.3”(H) [Ø14cm x 11cm(H)]

VB-4HDIR30-TVI Spec Sheet

Download
