- High quality imaging with 8MP resolution
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter
area, leave area detection - Smart intrusion prevention significantly reduces false alarms
caused by leaves, birds, lights etc., accurately focusing on human,
motor vehicle and non-motor vehicle - Intelligent People Flow Counting and Crowd Density Monitoring
- 120dB true WDR technology enables clear image in strong light
scene - Smart IR, up to 30m (98ft) white light range
- 24/7 colorful imaging
- Supports 256 G Micro SD card
- IP67 protection

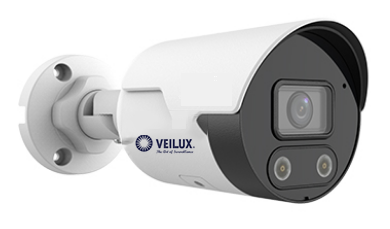

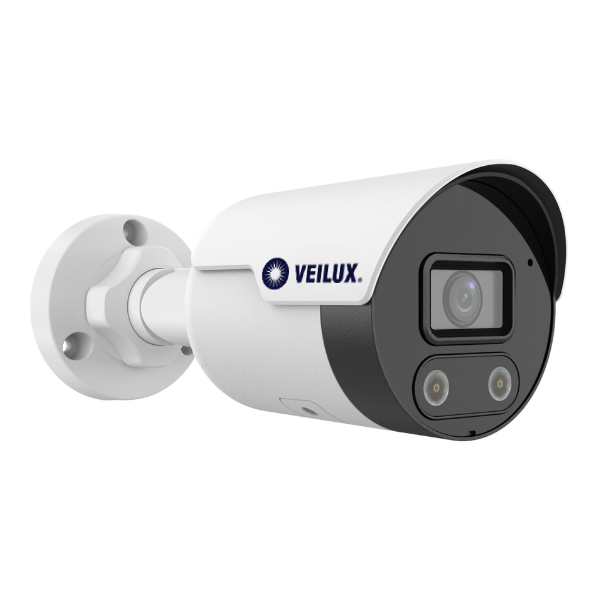

VBIP-8AI-FC-PRO-U 8MP Full Color Fixed Bullet Network Camera with Face Detection
SKU: VBIP-8AI-FC-PRO-U
- High quality imaging with 8MP resolution
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter
area, leave area detection - Smart intrusion prevention significantly reduces false alarms
caused by leaves, birds, lights etc., accurately focusing on human,
motor vehicle and non-motor vehicle - Smart IR, up to 30m (98ft) white light range
- 24/7 colorful imaging
| Camera Type | Bullet Camera |
|---|---|
| Lens Size | 2.8mm |
| Lens Type | Fixed |
| Resolution | 8MP |
| IR Lighting Distance | up to 30m |
| Cameras Signal Type | IP (Network) |
| CAMERA | |||||
|---|---|---|---|---|---|
| Sensor | 1/2.8″, 8.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8 mm @F1.0 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 86.9 | 34.8 | 17.4 | 8.7 | |
| Angle of View (H) | 106.7° | ||||
| Angle of View (V) | 57.1° | ||||
| Angle of View (D) | 115.7° | ||||
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Color: : 0.0005 lux (F1.0, AGC ON) 0 lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| S/N | >56 dB | ||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| VIDEO | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-Code | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Video Stream | Triple streams | ||||
| IMAGE | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90° Counter-clockwise | ||||
| Dewarping | Supported | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| INTELLIGENT | |||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||
| EVENTS | |||||
| Basic Detection | Motion detection, Ultra motion detection, tampering alarm, audio detection | ||||
| General Function | Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, User authentication | ||||
| AUDIO | |||||
| Audio Compression | G.711 | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | N/A | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| STORAGE | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR, NAS (NFS) | ||||
| NETWORK | |||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | Guard Viewer, 2M Station | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above web browser Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
||||
| INTERFACE | |||||
| Network | 1x RJ45 10M/100M Base-TX Ethernet | ||||
| Built-In Mic | Supported | ||||
| CERTIFICATIONS | |||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017 +A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01 | ||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
| GENERAL | |||||
| Power | DC 12V±25%, PoE (IEEE802.3 af) | ||||
| Power consumption | Max 8W | ||||
| Dimensions (L x W x H) | 191× 75 × 74mm (7.5” × 3.0” × 2.9”) | ||||
| Weight | 0.41kg (0.90lb) | ||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||
| Storage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||
| Surge Protection | 4KV | ||||
| Ingress Protection | IP67 | ||||
| Reset Button | Supported | ||||
