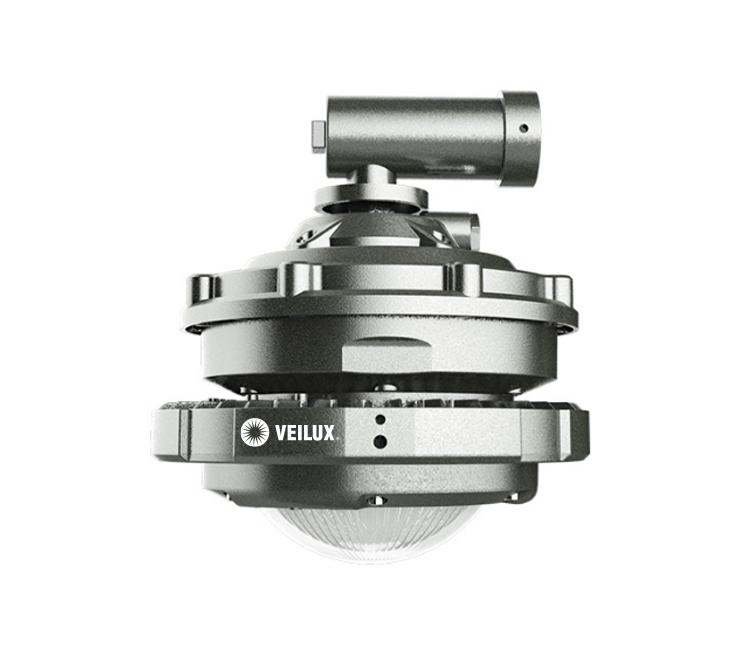

VL-EXO-8232-XXX Explosion Proof Hanging Street Light

  • Explosion-proof casing
  • Available in 100W, 120W or 150W
  • Efficient heat dissipation
  • Even light dispersion
  • Rated IP66
  • Easy to install

VL-EXO-8232-XXX Explosion Proof LED Hanging Street Lamp

Features:

  • Configuration: LED light source, the average service life is ~100,000 The wide voltage power supply can operate continuously current, it also has safety features to protect against a power surge
  • Heat dissipation: The casing is engineered to efficiently dissipate heat and avoid dust
  • Anti-glare: A strong glass cover (available in clear or frosted finish) is impact resistant, anti-glare and diffuses the light evenly to minimize shadows, up to 95% – 98% light transmittance capacity
  • Installation mode: Easy to install, the fixture can be mounted in various configurations to include: fence or guardrail street lamp
  • Inlet port: Series and parallel connection can be configured by using the double inlet design. The power supply and wiring are separated which makes the installation and wiring easier and safe
SPECIFICATIONS
VIDEO INPUT
Rated Voltage 220V
Power 80W-150W
Protection Level IP66
Light Angle 120°
LED Qty 155 pcs
Base Specifications CREE3030
Anti-corrosion Grade WF2
Explosion Proof Grade Ex d IIC T6
Light Efficiency 120Lm/W
Frequency 50/60Hz
Power Factor >0.95
Storage Temperature -30°C ~ 50°C
Light Source LED
Color Temperature 6000K-6500K
Color Rendering Index ≥70
LED’S Operating Life 100000 hrs
Start-up Time ≤0.2s
Weight 7.6kg
Size (Dia. x H) Ø 300 x 275 (mm)


Wattages Available

MODEL VOLTAGE
VL-EXO-8232-100 100W
VL-EXO-8232-120 120W
VL-EXO-8232-150 150W
Weight 16.8 lbs
Dimensions 11.8 × 11.8 × 16.8 in

VL-EXO-8232-XXX Spec Sheet

Download
