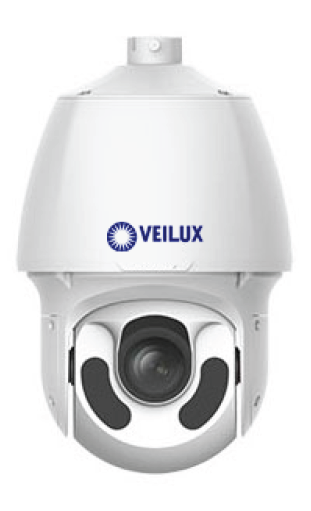

VPIP-2MIR25X-150-POE-U 2MP 25x Ultra Illumination Network PTZ Dome Camera

  • High quality image with 2MP, 1/2.8″ CMOS sensor
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • DC12V or PoE+(IEEE 802.3at) power supply
  • Audio 1 in/1 out, Alarm 2 in/1 out
  • Micro SD, up to 256GB
  • Smart IR, up to 150m (492 ft) IR distance
  • IP67, IK10

VPIP-2MIR25X-150-POE-U 2MP 25x Ultra Illumination Network PTZ Dome Camera

  • High quality image with 2MP, 1/2.8″ CMOS sensor
  • 1920 x 1080@30fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • 25X optical zoom, 16X digital zoom allows for closer viewing of subjects
  • Ultra Illumination technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • DC12V or PoE+(IEEE 802.3at) power supply
  • Audio 1 in/1 out, Alarm 2 in/1 out
  • Micro SD, up to 256GB
  • Smart IR, up to 150m (492 ft) IR distance
  • IP67, IK10
SKU: VPIP-2MIR25X-150-POE-U Categories: , Tags: , , , , , , , ,
Camera Type

IR Lighting Distance

Resolution

2MP
Lens Type

Motorized / Varifocal
Lens Size

5~ 125mm
CAMERA
Sensor 1/2.8″, 2.0 megapixel, progressive scan, CMOS
Min. Illumination Color: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR
Shutter Auto, 1 ~ 1/100000s
S/N Ratio >52dB
Day/Night IR-cut filter with auto switch (ICR)
Wide Dynamic Range 120dB
LENS
Lens Type 5~ 125mm, AF automatic focusing and motorized zoom lens
Optical Zoom 25x
Iris Auto; F1.5 ~ F3.0
Angle of View (H) 54.37° ~ 2.68°
Angle of View (V) 32.23° ~ 1.51°
Angle of View (O) 66.88° ~ 3.16°
DORI




DORI

Distance

 Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
5 85.3

(280′ ft)

 34.1

(112′ ft)

 17.1

(56′ ft)

 8.5

(28′ ft)


125

 1706.9

(5600.1′ ft)

 682.8

(2240′ ft)

 341.4

(1120′ ft)

 170.7

(560′ ft)
ILLUMINATION
IR Range Up to 150m (492 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
VIDEO
Video Compression Ultra 265, H.265, H.264, MJPEG


Frame Rate

 Main Stream: 2MP(1920 x 1080),Max 30fps; Sub Stream: 720P (1280 x 720), Max 30fps; Third Stream: D1 (720 x 576), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
ROI Up to 8 areas
Video stream Triple Streams
OSD Up to 8 OSD’s
Privacy Mask 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clock- wise/90°Anti-clockwise
HLC Supported
BLC Supported
Defog Digital Defog
EVENTS
Basic Detection Motion detection, Audio detection, Tampering Alarm
Auto Tracking Supported


General Function

 Watermark, IP Address Filtering, Alarm input, Alarm out- put, Access Policy, ARP Protection, RTSP Authentication, User Authentication
AUDIO
Audio Compression G.711U,G.711A
Audio Bitrate 64 Kbps
Two-way Audio Supported
Suppression Supported
Sampling Rate 8 kHz
STORAGE
Edge Storage Micro SD, up to 256 GB
Network Storage ANR, NAS (NFS)
NETWORK


Protocols

 IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integra- tion ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users.

2 user levels: administrator and common user


Security

 Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client 2M Guard




Web Browser

 Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
PAN & TILT
Pan Range 360° (endless)


Pan Speed

 2°/s ~ 75°/s
Preset speed: 180°/s
Tilt Range –15° ~ 90° (auto reverse)


Tilt Speed

 2°/s ~ 75°/s
Preset speed: 80°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time 15s~1800s
Preset Image Freeze Supported
Home Position Supported
INTERFACE
Audio I/O 1/1

VPIP-2MIR25X-150-POE-U Spec Sheet

Download
