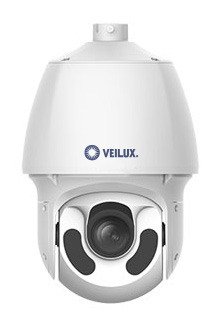

VPIP-2MIR33X-150-POE-U 2MP Network PTZ Dome Camera


• Starlight illumination
• 33x optical zoom
• Accurate and fast focusing
• Smart IR, up to 150m (492ft) IR distance
• 2 Megapixel image
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• Customized OSD
• ONVIF Conformance
• Innovative snow-removing functionality
• Intelligent temperature control technology
• 6KV surge protection designed for network interface
• IP66

CAMERA

Sensor

1/2.8″, 2.0 megapixel, progressive scan, CMOS

Lens

4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens

Digital Zoom

16

Optical Zoom

33







DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

4.5

72.9 (239.3ft)

29.2 (95.7ft)

14.6 (47.9ft)

7.3 (23.9ft)

148.5

2187.9 (7178.3ft)

875.2 (2871.3ft)

437.6 (1435.7ft)

218.8 (717.8ft)

Angle of View (H)

56.2° ~ 2.6°

Angle of View (V)

33.5° ~ 1.4°

Angle of View (O)

65.4° ~ 3.0°

Shutter

Auto/Manual; shutter time: 1 ~ 1/100000s

Minimum Illumination

Color: 0.001 lux (F1.5,AGC ON)

0 lux with IR

Iris

Auto/Manual; F1.5 ~ F4.0

WDR

120dB

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

IR Range

UP to 150m (492ft)

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

VIDEO

Video Compression

Ultra 265, H.265, H.264, MJPEG



Frame Rate

Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps

Video Bit Rate

128 Kbps~16 Mbps

ROI

Up to 8 areas

Video stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

24 Blacks(Up to 8 blacks in the same picture)


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clock- wise

HLC

Support

BLC

Support

SMART



General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

AUDIO

Audio Compression

G.711A, G.711U

Two-way audio

Supported
