- High quality image with 2MP,1/2.7″ CMOS sensor
- 1920 x 1080@60fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 5X Optical Zoom
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- Advanced technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 30m (98 ft) IR distance
- IP66

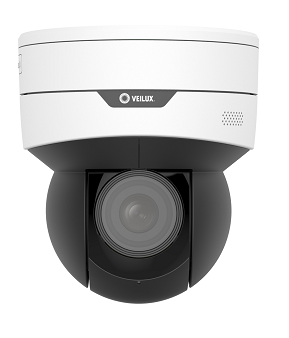

VPIP-2MIR5X-30-POE-U 2MP Network PTZ Dome Camera
SKU: VPIP-2MIR5X-30-POE-U
- High quality image with 2MP,1/2.7″ CMOS sensor
- 1920 x 1080@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 5X Optical Zoom
- Smart IR, up to 30m (98 ft) IR distance
| Weight | 2 lbs |
|---|---|
| Dimensions | 5.1 × 5.1 × 5.7 in |
| Camera Type | PTZ |
| IR Lighting Distance | up to 30m |
| Resolution | 2MP |
| Lens Type | Motorized / Varifocal |
| Lens Size | 2.7mm~13.5mm |
| Optical Zoom | 5x |
| Cameras Signal Type | IP (Network) |
| CAMERA | |||||
|---|---|---|---|---|---|
| Sensor | 1/2.7″, 2.0 megapixel, progressive scan, CMOS | ||||
| Minimum Illumination | Color: : 0.003 lux (F1.2, AGC ON) 0 lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | >52 dB | ||||
| LENS | |||||
| Lens | 2.7~13.5mm motorized zoom lens | ||||
| Optical Zoom | 5x | ||||
| Iris | F1.2 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.7 | 70.9 | 28.4 | 14.2 | 7.1 | |
| 13.5 | 247.5 | 99.0 | 49.5 | 24.8 | |
| Angle of View (H) | 106.9°~30.6° | ||||
| Angle of View (V) | 56.0°~17.7° | ||||
| Angle of View (D) | 131.5°~39.8° | ||||
| ILLUMINATOR | |||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| VIDEO | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 2MP(1920 x 1080),Max 60fps; Sub Stream: 2MP (1920 x 1080), Max 60fps; Third Stream: D1 (72 x 576), Max 60fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-Code | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | 24 areas, up to 4 areas per scene | ||||
| ROI | Up to 8 areas | ||||
| Video Stream | Triple streams | ||||
| IMAGE | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| INTELLIGENT | |||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| Exception Detection | Object Removed; Object Left Behind; Scene Change; Defocus Detection | ||||
| EVENTS | |||||
| Basic Detection | Motion detection, tampering alarm, audio detection | ||||
| General Function | Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, User authentication | ||||
| AUDIO | |||||
| Audio Compression | G.711U, G.711A | ||||
| Audio Bitrate | 128 Kbps | ||||
| Two-way Audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 16KHZ | ||||
| STORAGE | |||||
| Edge Storage | Micro SD, up to 512GB | ||||
| Network Storage | ANR, NAS (NFS) | ||||
| NETWORK | |||||
| Protocols | SSH; IGMP; RTP; RTCP; SMTP; IPv4; IPv6; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTSP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; QoS; SSL/TLS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
| Security | TLS1.3; Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF | ||||
| Client | Guard Viewer, 2M Station | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| PAN & TILT | |||||
| Pan Range | 350° (endless) | ||||
| Pan Speed | I0.1°/s ~ 60°/s | ||||
| Tilt Range | 0° ~ 90° | ||||
| Tilt Speed | 0.1° ~ 50°/s | ||||
| Number of Presets | 1024 | ||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
| Patrol Stay Time | 120s ~ 1800s | ||||
| Preset Image Freeze | N/A | ||||
| Home Position | Supported | ||||
| INTERFACE | |||||
| Wifi | Supported | ||||
| Network | 1x RJ45 10M/100M Base-TX Ethernet | ||||
| Audio I/O | N/A | ||||
| Alarm I/O | 1/1 | ||||
| Serial Port | 1x RS485 | ||||
| Video Output | N/A | ||||
| Built-in Mic | Supported | ||||
| Built-in Speaker | Supported | ||||
| GENERAL | |||||
| Power | DC 12V±25%, PoE (IEEE802.3 af) | ||||
| Power consumption | Max 15W | ||||
| Dimensions | Ø 129 x 143.6 mm(Ø 5.1″ x 5.7″) | ||||
| Weight | 0.76kg(1.67lb) | ||||
| Working Environment | -10° ~ 50° (14 °F ~ 122 °F), Humidity: ≤95% RH (non-condensing) |
||||
| Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
||||
| Surge Protection | 4KV | ||||
| Reset Button | Supported | ||||
