- Support Ultra 265/H.265/H.264 video formats
- 128-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
- HDMI1, HDMI2 and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Redundant power supply optional
- Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
- Support 2 miniSAS Interfaces
- Support 12V power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support N+1 Hot spare

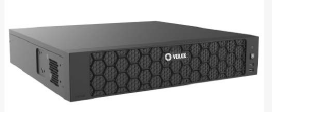

VPRO-NVR-128RR-16H-U 128 Channel Network Video Recorder with 16 HDD, RAID and Redundant Power supply
SKU: VPRO-NVR-128RR-8H-U-1
- Support Ultra 265/H.265/H.264 video formats
- 128 channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Up to 12 Megapixels resolution recording
- Support RAID 0, 1, 5, 6, 10, 50, 60
- 16 SATA HDD, up to 16TB for each HDD
| Weight | 22 lbs |
|---|---|
| Dimensions | 19 × 18.8 × 5.2 in |
| Recorder Type | Network Video Recorder |
| Number of Channels | 128 Channels |
| Hard Drive Capacity | 16 HDD |
| VIDEO/AUDIO INPUT | |
|---|---|
| IP Video Input | 128-ch |
| Audio Input | 1-ch, BNC |
| NETWORK | |
| Incoming bandwidth | 512Mbps |
| Outgoing bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6 |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome (version 45 and above) for Windows Edge(version 79 and above) for Windows |
| VIDEO/AUDIO OUTPUT | |
| HDMI/VGA Output | HDMI1/HDMI2(HDMI audio output is not supported):4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Audio Output | 1-ch, BNC |
| Two-way Audio | 1-ch, BNC (Using the audio input and output) |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Live View Display | VGA:1/4/6/8/9/16/25/36,
HDMI1/HDMI2:1/4/6/8/9/16/25/36/64 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| SNAPSHOT | |
| FTP/Schedule/Event Snapshot | 128-ch snapshot, up to 4K resolution |
| DECODING | |
| Decoding Format | Ultra 265/H.265/H.264 |
| Live View/Playback | 32MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 12MP@20, 4 x 4K@30, 16 x 1080P@30, 36 x 720P@30, 64 x D1 |
| HARD DISK | |
| SATA | 16 SATA interfaces |
| Capacity | Up to 16TB for each disk |
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
| Hot Swap | Support |
| SMART | |
| VCA Detection by Camera | Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Smart by IPC | All channels (up to 32 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| ALARM | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| EXTERNAL INTERFACE | |
| Network Interface | 4 RJ45 10M/100M/1000M self-adaptive Ethernet Interface;2 1000M SFP Ethernet Interface |
| USB Interface | Rear panel: 4 x USB3.0 |
| RS232 | 1 |
| RS485 | 1 |
| Alarm In | 24-ch |
| Alarm Out | 8-ch |
| eSATA | 1 |
| miniSAS | 2 |
| GENERAL | |
| Power Supply | 100~240V AC |
| Power Consumption: | ≤ 50W (without HDD) |
| Power Output | 12V |
| Working Environment | -10 °C ~ 55 °C (14 °F ~ 131 °F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (LxWxH) | 482mm ×477mm × 131mm (19.0″×18.8″×5.2″) |
| Weight | ≤ 10Kg (22.05lb) |
