- Support Ultra 265/H.265/H.264 video formats
- 64 channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- VGA and HDMI independent output (simultaneous output by default independent output configurable)
- Up to 16 Megapixels resolution recording
- 8 SATA HDD, up to 12TB for each HDD
- Support N+1 Hot spare
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade

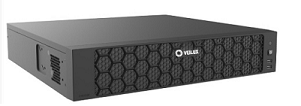

VPRO-NVR-64-8H-U 64 Channel Network Video Recorder with 8 HDD
SKU: VPRO-NVR-64-8H-U
- Support Ultra 265/H.265/H.264 video formats
- 64 channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- VGA and HDMI independent output (simultaneous output by default, independent output configurable)
- Up to 16 Megapixels resolution recording
- 8 SATA HDD, up to 12TB for each HDD
| Weight | 9 lbs |
|---|---|
| Dimensions | 17.4 × 16.8 × 3.5 in |
| Recorder Type | Network Video Recorder |
| Number of Channels | 64 Channels |
| Hard Drive Capacity | 8 HDD |
| VIDEO/AUDIO INPUT | |
|---|---|
| IP Video Input | 64-ch |
| Audio Input | 1-ch, RCA |
| NETWORK | |
| Incoming bandwidth | 320Mbps |
| Outgoing bandwidth | 160Mbps |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPV6 |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome (version 45 and above) for Windows Edge(version 79 and above) for Windows |
| VIDEO/AUDIO OUTPUT | |
| HDMI/VGA Output | HDMI: 4K (3840×2160)@30, 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280×1024@60, 1600×1200@60, 1280×720@60, 1024×768@60 |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Live View Display | Simultaneous Output: VGA: 1/4/6/8/9/16/25/36/64 HDMI: 1/4/6/8/9/16/25/36/64 Independent Output: VGA: 1/4/6/8/9/16/25/32 HDMI: 1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| SNAPSHOT | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| DECODING | |
| Decoding Format | Ultra 265/H.265/H.264 |
| Live View/Playback | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 64 x D1 |
| HARD DISK | |
| SATA | 8 SATA interfaces |
| Capacity | Up to 12TB for each disk |
| Disk Group | Support |
| SMART | |
| VCA Detection by Camera | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| Smart by IPC | All channels (up to 16 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| ALARM | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| EXTERNAL INTERFACE | |
| Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front: 2 x USB2.0, Rear panel: 1 x USB3.0 |
| RS232 | N/A |
| RS485 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| GENERAL | |
| Power Supply | 100~240V AC |
| Power Consumption: | ≤ 32W (without HDD) |
| Power Output | 12V |
| Working Environment | -10 °C ~ 55 °C (14 °F ~ 131 °F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (LxWxH) | 442mm × 426mm × 89mm (17.4″ × 16.8″ × 3.5″) |
| Weight | ≤ 4Kg (8.80lb) |
