- Support Ultra265/H.265/H.264 video formats
- 8 channel input
- Plug & Play with 8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: (Profile S, Profile G, Profile T) and RTSP protocols
- Support HDMI and VGA simultaneous output
- Up to 12 Megapixels resolution recording
- Up to 10TB for each HDD
- ANR technology enhances storage reliability when the network is disconnected
- Support cloud upgrade

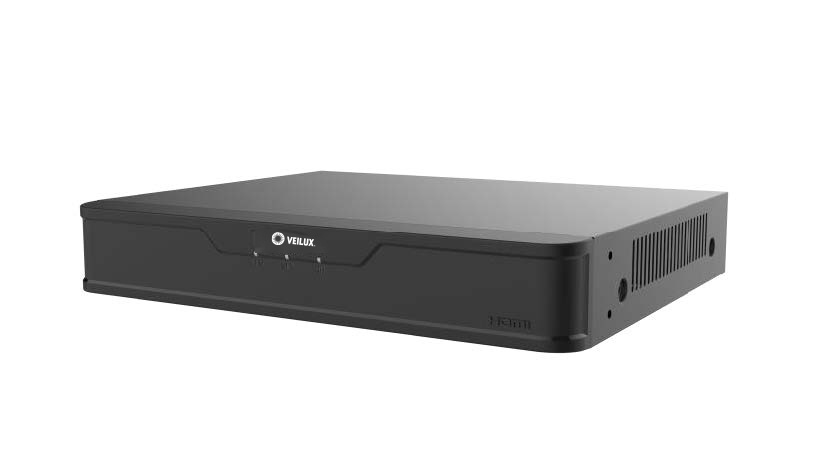

VPRO-NVR-8-2H-POE-QU 8 Channel Network Video Recorder with 2 HDD and 8 POE
SKU: VPRO-NVR-8-2H-POE-QU
- Support Ultra265/H.265/H.264 video formats
- 8 channel input
- Plug & Play with 8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: (Profile S, Profile G, Profile T) and RTSP protocols
- Support HDMI and VGA simultaneous output
- Up to 12 Megapixels resolution recording
| Weight | 6 lbs |
|---|---|
| Dimensions | 15 × 12.7 × 2.1 in |
| Recorder Type | Network Video Recorder |
| Number of Channels | 8 Channels |
| Hard Drive Capacity | 2 HDD |
| VIDEO/AUDIO INPUT | |
|---|---|
| IP Video Input | 8-ch |
| Audio Input | 1-ch, RCA |
| NETWORK | |
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 128Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, IPv6, IPv4 |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome (version 45 and above) for Windows Edge(version 79 and above) for Windows |
| VIDEO/AUDIO OUTPUT | |
| HDMI/VGA Output | HDMI:4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA:1920×1080/60Hz, 1920×1080/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Two-Way Audio | 1-ch, RCA (using the audio input and output) |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 8-ch |
| Live View Display | 1/4/6/8/9 |
| Corridor Mode Screen | 3/4/5/7/9 |
| SNAPSHOT | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| DECODING | |
| Decoding Format | Ultra 265/H.265/H.264 |
| Capability | Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 Smart On: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 |
| HARD DISK | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 10TB for each disk |
| SMART | |
| VCA Detection by Camera | Face Detection, Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Smart by IPC | Total 8-ch (Face Detection, SIP, UMD) |
| Smart by NVR | face detection; Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, People Counting, Traffic Monitoring |
| Vehicle Picture Library | Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total |
| Intrusion Detection,Cross Line Detection,Enter Area,Leave Area by NVR | 2-ch |
| People Counting, People Flow Counting,Crowd Density Monitoring, Traffic Monitoring by NVR | 4-ch |
| ALARM | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI LANGUAGE | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai,Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French,German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic,Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish,Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| EXTERNAL INTERFACE | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| RS232 | N/A |
| RS485 | 1 |
| Alarm In | 8-ch |
| Alarm Out | 2-ch |
| POE | |
| PoE Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port, Max 130W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| GENERAL | |
| Power Supply | 100~240V AC |
| Power Consumption: | ≤ 12W (without HDD) |
| Working Environment | -10 °C ~ 55 °C (14 °F ~ 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Dimensions (LxWxH) | 380mm×322mm×53mm (15.0″×12.7″×2.1″ ) |
| Weight | 2.7kg (6lb) |
