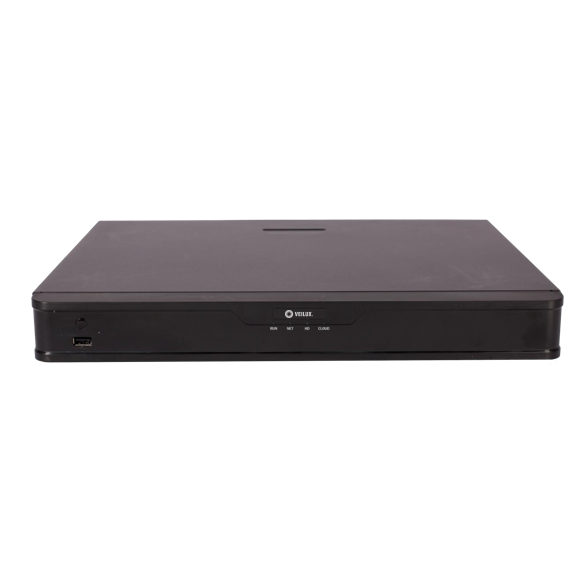

VPRO-NVR-8-POE-U 8CH Network Video Recorder with PoE (DISCONTINUED)

Availability:

Out of stock


  • Support Ultra265/H.265/H.264 video formats
  • 8 channel input
  • Plug & Play with 8/16 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance

The Veilux VPRO-NVR-8-POE Network Video Recorder is capable of recording footage in 1920 x 1080 resolution on up to 8 channels of video. Additionally, the network recorder utilizes H.265, H.264 and MJPEG compression to efficiently transmit and store data by reducing bandwidth. 2 SATA HDD bays provide sufficient and expandable storage for footage. Further, the video recorder is compatible with power over Ethernet for a simple and reliable connection without any excessive wiring.

Features:

  • Support Ultra265/H.265/H.264 video formats
  • 8 channel input
  • Plug & Play with 8/16 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
  • Support HDMI and VGA simultaneous output
  • Up to 8MP resolution recording
  • Up to 8TB for each disk
  • Support for P2P, UPnP, NTP, DHCP, PPPoE
  • ANR technology enhances storage reliability when the network is disconnected
  • Support cloud upgrade
SKU: VPRO-NVR-8-POE Category: Tags: , , , ,
Weight 5.84 lbs
Recorder Type

Network Video Recorder

Number of Channels

8 Channels

VIDEO/AUDIO INPUT
IP Video Input 8-ch
Two-way Audio Input 1-ch, RCA
NETWORK
Incoming Bandwidth 64Mbps
Outgoing Bandwidth 96Mbps
Remote Users 128
Protocols SNMP, P2P, UPnP, NTP, DHCP, PPPoE
VIDEO/AUDIO OUTPUT






HDMI/VGA Output

VGA: [email protected],[email protected],[email protected],1920X-

[email protected],[email protected] HDMI:

4k(3840×[email protected]),4k(3840×[email protected]),[email protected],1280X-

[email protected],[email protected],[email protected],[email protected]

Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Corridor Mode Screen 3/4/5/7/9
DECODING
Decoding format Ultra265/H.265/H.264
Live view/Playback 18MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF


Capability

1 x [email protected], 2 x [email protected], 3 x [email protected], 4 x [email protected],

8 x [email protected], 16 x D1

HARD DISK
SATA 2 SATA interfaces
Capacity up to 8TB for each disk
SMART
VCA Detection 8 SATA interfaces
VCA Search Face search, Behavior search
Statistical Analysis People counting
EXTERNAL INTERFACE
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
Alarm In 4-ch
Alarm Out 1-ch
POE
Interface 8 independent 100Mbps PoE network interfaces


Max Power

Max 30W for single port

Max 130W in total ( 16.25W for each )

Supported Standard IEEE 802.3af/at
GENERAL
Power Supply 220V AC, Power Consumption: ≤9 W( without HDD )


Working Environment

-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH(non-con- densing)
Dimensions (W× D×H) 380mm x 315mm x 49.1mm (15.0″ x 12.4″ x1.9″ )
Weight (without HDD) ≤2.4kg (5.29 lb)

VPRO-NVR-8-POE-U Spec Sheet

Download
