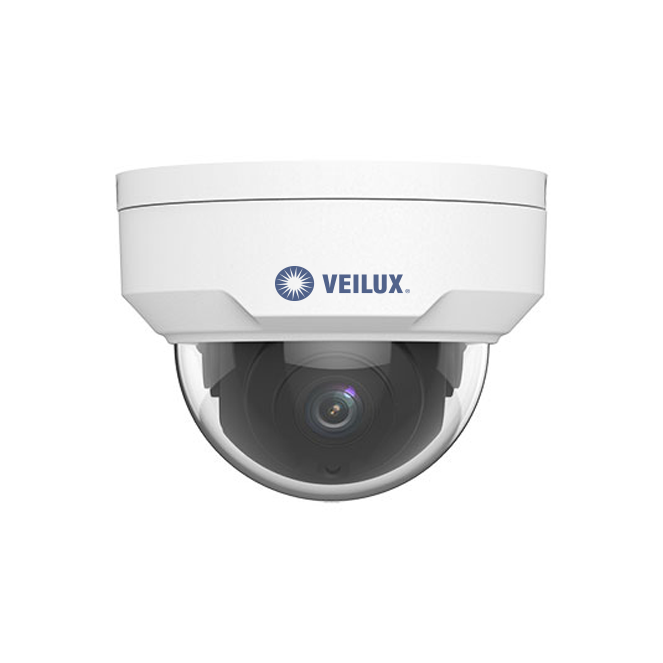

VVIP-5-UE-G 5MP Vandal-resistant Network IR Fixed Dome Camera:
Features:
| Weight | .99 lbs |
|---|---|
| Dimensions | 4.3 × 4.3 × 3.2 in |
| Camera Type | Vandal Dome Camera |
| Cameras Signal Type | IP (Network) |
| Resolution | 5MP |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Lighting Distance | up to 30m |
| IP Rating | IP67 |
| CAMERA | |||||
| Sensor | 1/2.7″, 5.0 megapixel, progressive scan, CMOS | ||||
| Lens | [email protected] | ||||
|
DORI Distance |
Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | |
| Angle of view(H) | 105.3° | ||||
| Angle of View (V) | 69.5° | ||||
| Angle of View (O) | 136.9° | ||||
| Adjustment angle | Pan 0° ~ 360°, Tilt: 0° ~ 75° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumina- tion | Color: 0.01Lux (F2.0, AGC ON)
0Lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | D-WDR | ||||
| VIDEO | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile | ||||
|
Frame Rate |
Main Stream: 4MP (2592 x 1520), Max 20fps; Sub Stream: 720P (1280 x 720), Max 20fps; Third Stream: D1 (720 x 576), Max 20fps | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 2 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| IMAGE | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | NA |
| HLC | Supported |
| BLC | Supported |
| NETWORK | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,
QoS |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
|
Client |
Guard Viewer |
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
| INTERFACE | |
| Network | 10/100M Base-TX Ethernet |
| CERTIFICATIONS | |
| Certifications | CE: EN 60950-1 FCC: FCC Part 15 |
| GENERAL | |
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4.5W | |
| Dimensions (Ø x H) | Ø 109 x 81mm (Ø 4.3″ x 3.2″) |
| Net Weight | 0.45kg (0.99lb) |
| Material | Metal + Plastic |
| Working Environment | -20°C ~ 60°C (-4°F ~ 140°F),
Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -20°C ~ 60°C (-4°F ~ 140°F),
Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
