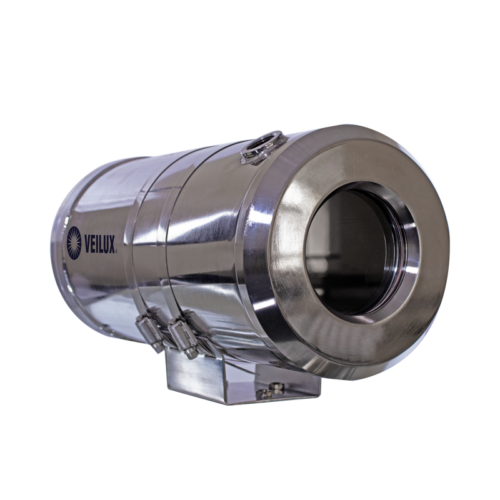

SVEX-HSF-Z Air or Water Cooling Explosion Proof Camera Housing (304SS)

Availability:

Out of stock


  • ATEX, IECEx Certified
  • Applicable for Gas Zone 1, Zone 2,
  • Class II A, IIB, IIC, T1-T6 group) Dust Zone 21, 22
  • Stainless steel 304 or 316L enclosure
  • Surface optional electro-polished or painting
  • Weather Proof IP68

Note: This is a special order item. Allow 4-6 weeks for delivery.

The Veilux SVEX-HSF Liquid Cooling Dustproof Housing is made with stainless steel for great performance against corrosion and allows for a tight seal. Additionally, the camera housing fits both fixed zoom camera and zoom lens which allows for use in different applications. A drawer is designed inside the camera housing to allow for easy maintenance and tightened nuts are used in the back of the camera to secure the cable in place. Further, the camera housing window is made with a strong tempered glass and the housing has an outdoor IP68 rating. The circulation of the water pump from one of the connecting tube reduces the interior temperature and the air pressure from one of the front end tubes to help clean the housing window.

SVEX-HSF-Z Air or Water Cooling Explosion Proof Camera Housing

Features:

  • ATEX, IECEx Certified
  • Applicable for Gas Zone 1, Zone 2
  • Class II A, IIB, IIC, T1-T6 group) Dust Zone 21
  • Available in 304 or 316L Stainless steel
  • Weather Proof IP68 (1.2m/45min)
  • Strong tempered glass
  • Wall mount sold separately

Note: This is a special order item. Allow 4-6 weeks for delivery.

Weight 18.7 lbs
Dimensions 14.7 × 6.4 × 7.3 in
CERTIFICATES
Certificate Mark Exd IIC T5 Gb/Ex tD A21 IP68 T95°C
Certificate No CNEx19.0668
Standards Q/320412ZAF015-2018
MECHANICAL
Housing Stainless steel 304 or 316L
IP IP68
Cable thread hole 2pcs G3/4 or NPT3/4
ELECTRICAL
Voltage AC85V ~ AC265V or DC24Vor AC24V
Power 15W
AMBIENT


Ambient Temperature

Air cooling -25°C to +150°C,

water cooling 0°C to +250°C

Water Cooling Media Water Flow: 0.3m3/h, ≤35°C pressure ≥0.1MPa
Air Cooling Media Air Flow: 0.3-0.6m3/min, ≤35°C pressure 0.1-0.2 MPa
Ambient Pressure 80Kpa to 106Kpa
Relative Humidity ≤95% (no condensation)
GENERAL
Dimensions 374 x 163 x 185 (mm)
Housing Inner Size 260 x 75 x 75 (mm)
Weight 9.1kg
Mounted wall, pole

SVEX-HSF Spec Sheet

Download
