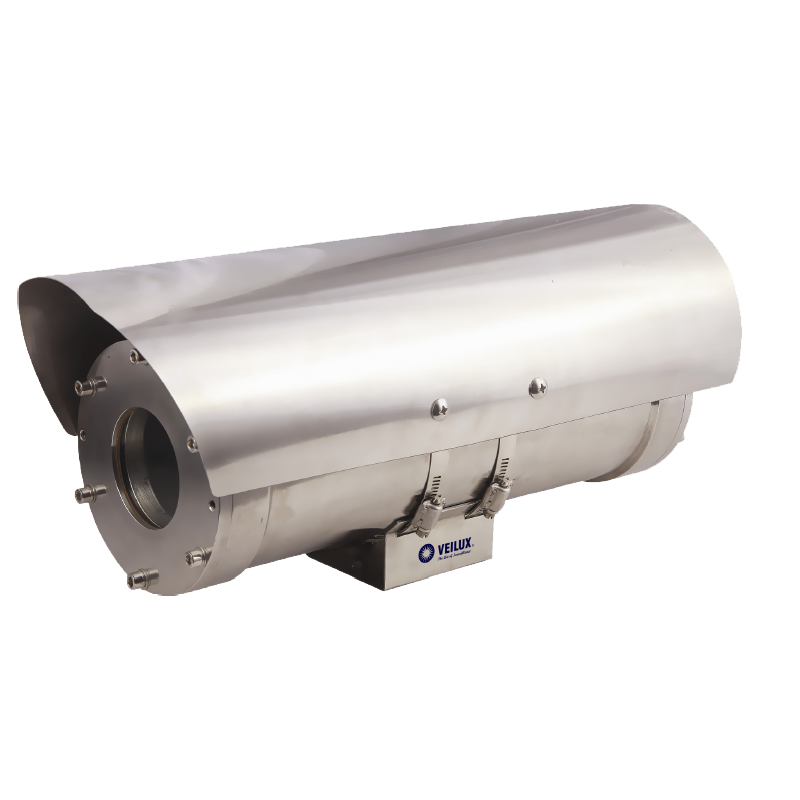

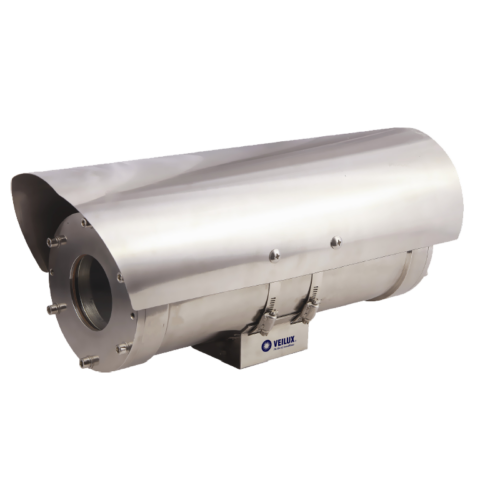

SVEX-T100A Explosion Proof Housing


Key Features:

  • 304 Stainless Steel
  • Explosive proof camera enclosure
  • Dust-tight design for high-particulate environment
  • Hazardous atmosphere, weather and vandalism proof
  • Housing material is corrosion proof
  • 220VAC / 24VAC / 12VDC
  • Easy to install and maintain

This is a special Order Item



Veilux SVEX-T100A Explosion Proof Housing 304 Stainless Steel

Veilux takes great pride in offering special application enclosures including: explosion-proof enclosures required for potentially combustible atmospheres; dust-tight enclosures that operate in dusty or high-particulate environments; and corrosion-proof enclosures that are exposed to corrosive or oxidizing chemicals. Enclosures are designed to protect a camera and lens from environmental conditions including hazardous atmospheres, weather and vandalism. Veilux manufactures a variety of enclosures including indoor, outdoor, explosion proof, dust-tight and high security models.

Features:

  • ATEX, IECEx, CNEx, CE, Approved;
  • Applicable for Gas Zone 1, Zone 2, Class II A, IIB, IIC, T1-T6 group)
  • Dust Zone 21, 22.
  • Certified for the latest standards IEC/EN60079 (2014)
  • Cable glands: M27×1.25
  • Cable entry: 2pcs
  • Stainless steel 304 or 316L enclosure
  • Surface optional electro-polished or painting
  • Weather Proof IP68(1.2m/45min)
  • Wide voltage input: AC100-240V or AC24V
  • Strong tempered glass, fit for hydrofluoric acid area
  • Intelligent window defroster design
  • Auto temperature adjust kit for aggressive area
  • High precision wiper, support user-defined
  • Fit for various brand cameras
  • Wall, pole, ceiling mounted way



Note: This is a special Order Item

Weight 26.5 lbs
