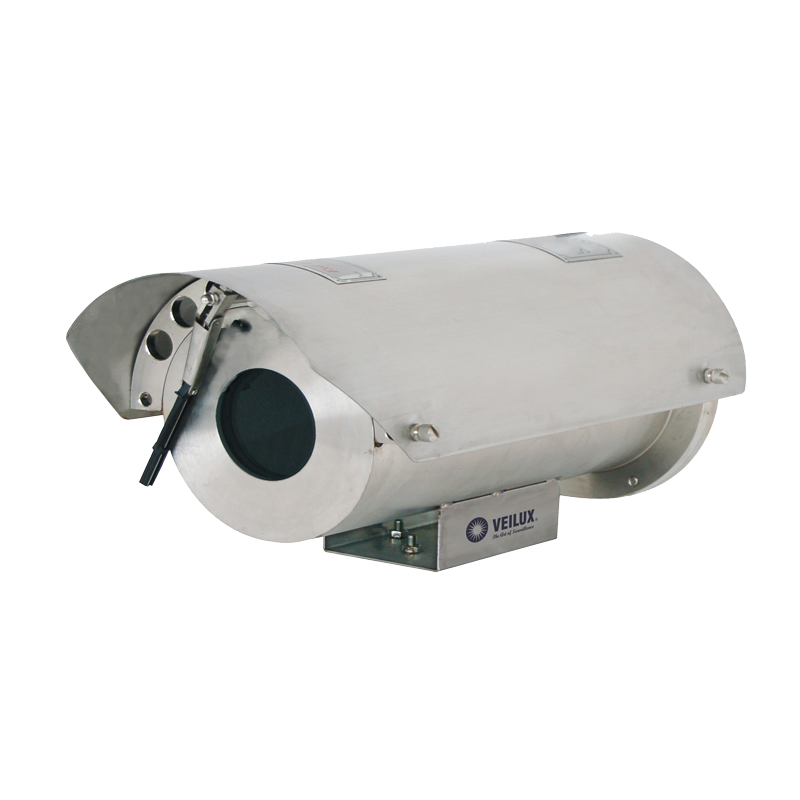

Veilux SVEX-T300 Explosion Proof PTZ Infrared Camera Housing (316L)

Availability:

In stock


  • Applicable for Gas Zone 1, Zone 2, Class II A, IIB, IIC, T1-T6 group)
  • Dust Zone 21, 22.
  • Cable entry: 2pcs
  • Surface optional electro-polished or painting
  • Weather Proof IP68
  • Wide voltage input: AC100-240V or AC24V
  • Wall, pole, ceiling mounted way

This is a special order item. Allow 4-6 weeks for delivery.

This Veilux SVEX-T300 Explosion Proof PTZ Camera Housing is engineered with 316L stainless steel for highly corrosive or oxidizing chemical environments. Additionally, this enclosure is designed to protect a camera and lens from environmental conditions including hazardous atmospheres, weather and vandalism. Veilux manufactures a variety of enclosures including indoor, outdoor, explosion proof, dust-tight and high security models. Further, the housing is IP68-rated weather resistant for safe outdoor use and installation in wet environments.

Features:

  • ATEX, IECEx, CNEx, CE, Approved;
  • Applicable for Gas Zone 1, Zone 2, Class II A, IIB, IIC, T1-T6 group)
  • Dust Zone 21, 22.
  • Certified for the latest standards IEC/EN60079 (2014)
  • Cable glands: M27×1.25
  • Cable entry: 2pcs
  • Stainless steel 304 or 316L enclosure
  • Surface optional electro-polished or painting
  • Weather Proof IP68(1.2m/45min)
  • Wide voltage input: AC100-240V or AC24V
  • Strong tempered glass, fit for hydrofluoric acid area
  • Intelligent window defroster design
  • Auto temperature adjust kit for aggressive area
  • High precision wiper , support user-defined
  • Fit for various brand cameras
  • Wall, pole, ceiling mounted way

This is a special order item. Allow 4-6 weeks for delivery.

Weight 35.27 lbs
Dimensions 20.6 × 7.04 × 8.46 in
Atmospheric pressure 80KPa~110KPa
Ambient Temperature -25°~+60°/-40°C~+60°
Relative Humidity ≤95% (+25°C)
Ex-proof mark II 2G Ex db II C T6 Gb,

II 2D Ex tb IIIC T80 ºC Db

Certified ATEX, IECEx, CE
Standards EN60079-0: 2012+A11: 2013, EN60079-1: 2014, EN60079-31: 2014

IEC60079-0: 2011, IEC60079-1: 2014, IEC60079-31: 2013

Hazardous Area zone 1, 2

(IIA, IIB, IIC, T1~T6 gases, vapors and air may exist) zone 20, 21 (explosive dust may exist)

Ingress Protection IP68 (1.2m/45min)
Voltage Input AC100-240V, or AC24V 50/60Hz
Power 15W/25W (with thermostat) ≤36W(without heat,fan)
Surge Protect Optional, TVS6000V surge protect
Optical Fiber output Optional, multimode or single mode
Optical Video signal 1-way video output
Optional network signal RJ45
Optical Audio 1-way input, 1-way output
Optical Alarm 2-way alarm input, 1-way alarm output
Address code: 0/1
Trail cable 2m integrated cable
Communication type RS485
Protocol Pelco-D, Pelco-P
Communicate Rate 2400~19200bps adjustable
485 Communication Support
Cable thread hole M27×1.25、G3/4、NPT3/4
Overall dimension 524*179*215mm
Inner dimension 250*78*75 (L*W*H)
Net Weight 16kg
Housing Material Stainless Steel 304/ 316L
Auto-heating optional
Auto-cooling optional
Wiper Yes
Wiper Control RS485
Sunshield Yes
Camera all kinds of box camera, zoom camera,
Mounted Wall Mount, Pole Mount (optional)
