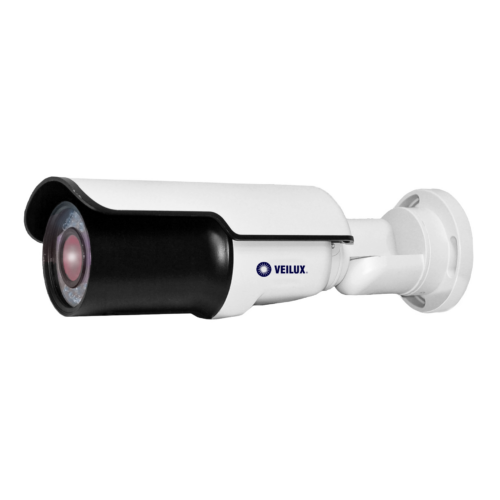

Veilux VB-4HDIR42V-TVI TVI Bullet Camera with IR


  • Motion Detection
  • Privacy Mask Function
  • 2.8-12mm
  • Video Output-TVI
  • IR up to 40 meters
  • External Control (Focus/Zoom, OSD)
  • IP-66

The Veilux VB-4HDIR42V-TVI Bullet Camera features a Sony CMOS with a 4MP lens capable of recording footage in 1080p resolution at 30 frames per second. Additionally, the surveillance camera incorporates motion detection to ensure you never miss a suspicious event. Privacy masking allows you to block out areas where you do not want to record. Further the security camera utilizes IR LEDs to capture clear footage at nighttime and during low lighting conditions out to 40 meters.

Features:

  • 1/2.8” 4 Mega Pixel SONY CMOS Sensor
  • HD Resolution:
  • XDR,D-WDR(Digital Noise Reduction)
  • Motion Detection
  • Privacy Mask Function
  • 8-12mm
  • True Day & Night (ICR)
  • Video Output-TVI
  • Built-in IR LED 42 pcs (Night View Distance 35-40 meters)
  • External Control (Focus/Zoom, OSD)
  • Service Video Controller through Cable
  • Weatherproof IP66
Weight 0.75 lbs
Dimensions 2.3 × 3.9 × 2.5 in
Camera Type

Cameras Signal Type

TVI

Resolution

4MP

Lens Size

2.8 ~ 12mm

IR Lighting Distance

IP Rating

Specifications
Image Sensor 1/2.8” 4 Mega Pixel Sony CMOS Sensor
Scanning System Progressive
Resolution 4.1 Mega Pixel NTSC / PAL
Effective Pixels 2688(H)×1520(V), 4.1MP
Shutter Speed Auto/ Manual (1/50(1/60) ~ 1/100,000)
Min. Illumination 0.5 Lux (Color) (0 Lux IR LED ON)
S/N Ratio >50dB (AGC off)
AGC 1- 5 Levels
Day & Night Auto/ Color/ B&W/ Ext
White Balance ATW/ Manual/ AWC Push
Backlight 1 – 16 Levels
Mirror Off/ H/ V/ H&V/ Rotate
HLC On/ Off
Privacy Zone 2 Areas
Motion Off/ On
LSC On/ Off
Language Info
Day & Night System ICR
Video Output TVI
IR Led 42 units
Night View Distance 115-131 feet (35-40 meters)
Lens 2.8-12mm TDN DC Iris Varifocal Lens
Power Consumption DC12V Less than 150mA
Temperature Operating 14°F to 131°F (-10°c to 55°C)
Temperature Storage -4°F to 140°F (-20°C to 60°C)
Operating Humidity 10% – 85% RH
IP Rating IP66
Dimensions (WxDxH) 2.3” x 3.9” x 2.5” [ 6cm x 10cm x 6.5cm ]
Unit Weight 0.75 Ib (0.340 kg)
Shipping Weight 0.95 Ib (0.430 kg)

VB-4HDIR42V-TVI Spec Sheet

Download
