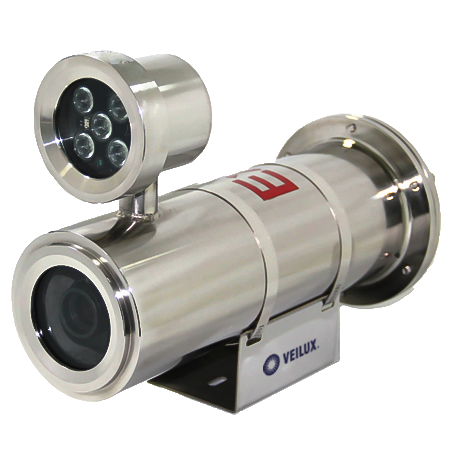

Veilux SVEX-T400B-18Z ATEX Certified Explosion-proof Motorized Bullet Camera

Availability:

In stock


  • 18x optical zoom, automatic aperture, automatic focusing, easy to monitor remote targets
  • Super Low Lux.
  • Supports D-WDR, 3D-DNR, low-bit rate
  • Power mode can be customized
  • Made of 304 stainless steel material (316 and 316L Optional)
  • Treated glass with excellent light transmittance, defog, and dust repellent

The Veilux SVEX-T400B-18Z ATEX Certified Explosion Proof Camera features a CMOS Sensor capable of recording footage in 1920 x 1080 resolution. Additionally, the surveillance camera utilizes IR to capture clear footage at nighttime and during low lighting conditions out to 100 meters. Wide dynamic range delivers crisp and clear footage in environments with harshly contrasting lighting conditions. Further, the security camera incorporates 18x optical zoom for increased control over your footage.

Features:

  • SONY 1/2.8″ CMOS Sensor CCD ,resolution up to 1920 x 1080 pixel
  • 18x optical zoom, automatic aperture, automatic focusing, easy to monitor remote targets
  • Super Low Lux. Color: 0.05Lux/F1.6; BW: 0.01Lux/F1.6
  • Supports D-WDR, 3D-DNR, low-bit rate
  • ICR Day/Night Auto-switch, Color/BW, 24hr monitoring
  • High quality IR, long service life, low power consumption, IR range up to 100 meters
  • Low power consumption, the heat dissipation design, can work continuously
  • Usual: AC220V/DC12V, other Power mode can be customized
  • Made of 304 stainless steel material (316 and 316L Optional)
  • Explosion-proof, anti-corrosion, waterproof, suitable for indoor and outdoor environments
  • Treated glass with excellent light transmittance, defog, and dust repellent
Weight 7.2 lbs
Camera Type

IP Rating

Lens Size

4.7 – 84.6mm

IR Lighting Distance


CERTIFICATIONS
Ex-Level ATEX II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC IP68 T80°C Db
CAMERA
Imaging Sensor 1/2.8” Progressive Scan CMOS
Signal System PAL/NTSC


Minimal Illumination

Color: 0.05Lux @ (F1.6, AGC ON)
BW: 0.01Lux @ (F1.6, AGC ON)
Day/Night ICR auto-switch
Electronic Shutter 1/1S ~ 1/30,000S


Resolution Ratio

50HZ: 25fps (1920×1080) 60HZ: 30fps (1920×1080)
50HZ: 25fps (1280×720) 60HZ: 30fps (1280×720)
White Balance 1/2 Auto / indoor / outdoor / manual / sodium lamp / fluorescent lamp
DNR 3D
IR
IR Wavelength 808nm
Light Angle 30°
IR Range 50m, 100m (optional)
LENS
Focal Distance 4.7-84.6mm, 18x
Aperture F1.6-F3.5
Horizontal View Angle 58.3-3.2° (Wide-Tele)
Min-Working Distance 10-1500mm (Wide-Tele)
Zoom Speed About 2.7s (optical, Wide-Tele)
MENU CONTROL
Exposure Mode Auto Exposure / Aperture Priority / Shutter Priority / Manual Exposure
Focusing Mode Auto /Manual /One Time Focusing
COMPRESSION
Video Compression Standard H.264 /MJPEG
Output Compression Rate 32 Kbps~16Mbps
NETWORK


Protocols

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP, Optional)
Intelligent Alarm Motion detection, block alarm, memory full, memory fault
Memory Support micro SD
INTERFACE
Audio Input Optional
Audio Output Optional
Interface Protocols ONVIF®, PSIA®, CGI®
GENERAL
Inlet Hole Specifications G-3/4 x 1
Temperature Range -40°C~60°C
Thermostat System Optional
Relative Humidity ≤5% (+25°C)
Atmospheric Pressure 80kpa~106 kpa
Material 304 stainless steel (Optional: 316, 316L)
Power ADC12/AC220V (Optional)
Electrical Connection 10-core composite cable
Installation Method PTZ, Wall Hanging Bracket, Fixed Bracket, Pillar Base
Ingress Protection Level IP68
Dimensions 380 x 144 x 232 (mm)
Weight 7.2Kg (15.87lbs)

SVEX-T400B-18Z Specification Sheet

Download
