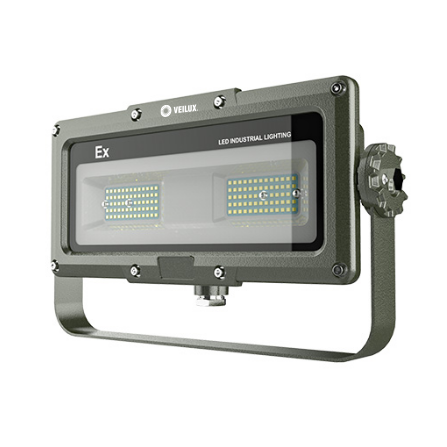

VL-EX8199-XXX Explosion Proof Flood Light

VL-EX8199-XXX 80W-100W Ex-proof Flood Light

  • Input Voltage: AC100-270 v
  • LED Source: Cree
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120 lm/w
  • Anti corrosion: WF2

Note: This is a special order item. Allow 4-6 weeks for delivery.

VL-EX8199-XXX 80W-100W Ex-proof Flood Light

Features

  • Constructed with an aluminum alloy die-cast case, the surface is finished with a high-pressure electrostatic coating. The exposed fasteners are made with a high-corrosion-resistant stainless steel material. The lamp is designed using the highest anti-corrosion performance features.
  • Ultra durable transparent cover with high light transmission, impact resistant, unique anti-glare design, optical reflector cup, and high reflection efficiency.
  • The explosion-proof structure is designed to meet with the national explosion-proof standard GB3836 to assure the reliability of this product in explosion-proof performance, durability, constant current power supply, low power consumption, constant power output meter, high temperature and aging resistant silica gel sealing ring, and high protection grade.
  • An international well known brand light source chip, unidirectional luminescence, no side light, high light utilization rate, high light efficiency, high display finger, with open circuit, short circuit, overheat protection function, ensure the reliable and continuous operation of light source, wide voltage input, constant light flux output, instantaneous start-up.
  • Unique heat dissipation structure design, excellent and reliable heat dissipation performance, ensure the long life and reliable use of lamps.
  • Cable wiring, fast and convenient.

Available Wattage Models

MODEL VOLTAGE
VL-EX8199-80 80W
VL-EX8199-100 100W

Note: This is a special order item. Allow 4-6 weeks for delivery.

SKU: VL-EX8199-XXX Category: Tags: , ,
Weight 6.17 lbs
Dimensions 15 × 8.9 × 3 in
Lighting Type

Rated Voltage AC220 V
Power 80-100 W
Frequency 50/60 HZ
Light Efficiency 120 LM
Power Factor >0.95 PF
Operating Temperature -30°C~50°C / -22°F~122°F
Storage Temperature -30°C~50°C / -22°F~122°F
Protection Level IP66
Lighting Angle 120°
Light Source LED
Correlate Color Temperature 3000-6500 K
Color Rendering Index ≥70 Ra
LED Qty 120 pcs
Base Specifications CREE3030
LED’S Operating Life 100000 h
Start-Up Time ≤0.2 s
Anti-Corrosion Grade WF2
Explosion Proof Grade ExdIICT6W
Executive Standard GB3836.1 / GB3836.2
Weight 2.8 kg / 6.17 lbs
Size 383 x 228 x 77 mm / 15″ x 8.9″ x 3″ in.

VL-EX8199-XXX Spec Sheet

Download

VL-EX8199-XXX Spec Sheet
