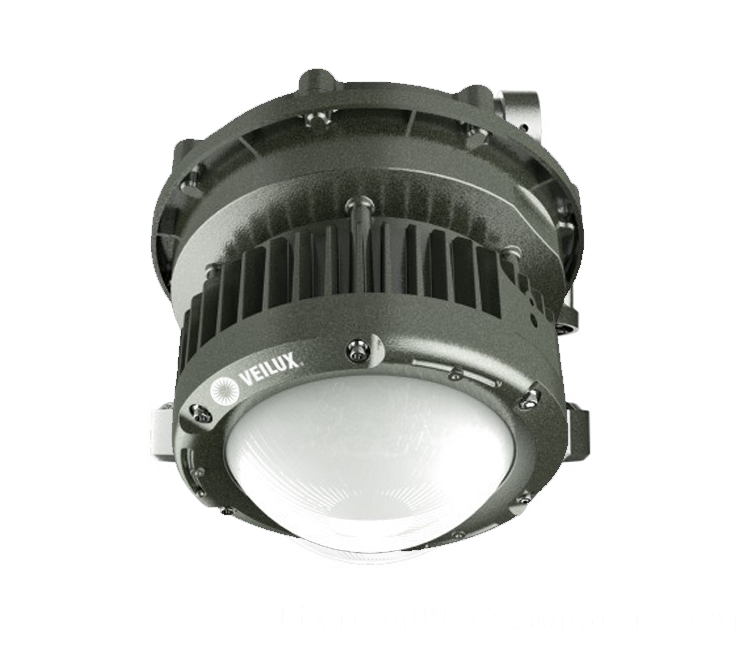

VL-EX8233H-XX Explosion-proof Short Height Bay Light

  • Explosive-proof light
  • LED light source
  • Available in 50W, 60W, 80W or 90W
  • Optional clear or  matte glass

VL-EX8233H-XX Explosion-proof Short Height Bay Light

Features:

  • Built-in smart cloud technology controller, remote control, status query, environment acquisition, electronic map, light condition monitoring and other functions, automatic dimming according to lighting needs, the annual electricity consumption rate ~ 34%.
  • LED light source, with an average service life of up to 100,000 hours. Wide voltage processing for constant current output with surge protection functions, to help extend the service life.
  • Independent upper and lower ventilation convection structure design, improve heat dissipation and avoid dust accumulation. Heat sink adopts inner and outer circumferential array to further improve heat dissipation performance.
  • Anti-glare: tempered glass cover (available in transparent or matte). The honeycomb crystal design helps soften the light and reduce shadows. The light transmittance is as high as 95%-98%, suitable for various solid light settings.
  • Rated IP66 the lamp body is WF2 anti-corrosion rated. The surface of the lamp body will never corrode or rust.
  • Can be installed in different configurations such as ceiling, curved rod, vertical pole, U-shaped anti-vibration bracket (angle adjustable) as needed.
  • The double inlet port design separates the power supply cavity and wiring cavity which makes the installation and wiring safer and convenient.

Specifications:

Rated Voltage220V
Power50W-90W
Protection LevelIP66
Frequency50/60 hz
Lighting Angle120°
LED Qty80 pcs
Base SpecificationsCREE3030
Anti-corrosion GradeWF2
Explosion-proof GradeEX d II C T6
Light Efficiency120 Lm/W
Frequency50/60 Hz
Power Factor>0.95 PF
Operating Temperature-30°C ~ 50°C
Storage Temperature-30°C ~ 50°C
Light SourceLED
Color Temperature3000K-6500K
Color Rendering Index≥70 RA
LED’s Operating Life100,000 Hours
Start-up≤0.2s
Executive StandardGB3836.1, GB3836.2
Weight6.6 kg
SizeØ 267 x 296 (mm)

Available Wattages:

MODELVOLTAGE
VL-EX8233H-5050W
VL-EX8233H-6060W
VL-EX8233H-8080W
VL-EX8233H-9090W
Weight14.6 lbs
Dimensions10.5 × 10.5 × 11.7 in

VL-EX8233H-XX Spec Sheet

Download
