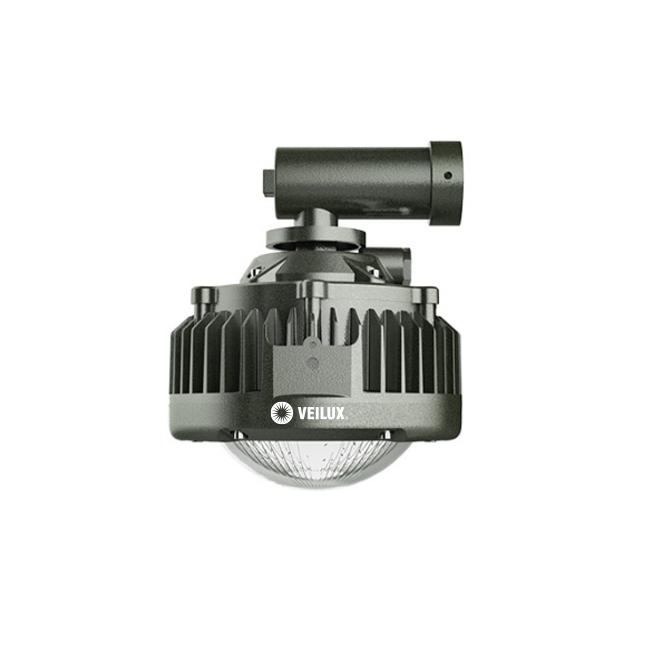

VL-EXO-8231-XX Explosion Proof Large Hanging Lamp

  • Explosion-proof casing
  • Available in 50W, 60W, 80W and 90W
  • Efficient heat dissipation
  • Even light dispersion
  • Rated IP66
  • Easy to install

VL-EXO-8231-XX Explosion Proof LED Large Hanging Lamp

Features:

  • Configuration: LED light source, the average service life is as long as 100,000 hours. The power supply uses a wide voltage processing, which can realize constant current output, has short circuit and over voltage protection functions, and greatly prolongs the service life of lamps and lanterns.
  • Heat dissipation: The radiator adopts an integrated streamlined structure, which can better increase heat conduction. The radiator is arranged in an internal and external circular array to improve its heat dissipation performance.
  • Anti-glare: toughened glass cover (Options: transparent or frosted) anti-impact, uniform lighting to minimize shadows. Light transmittance up to 95% – 98%, suitable for various low-roof, platform, high roofs and other places as fixed lighting.
  • Protection: IP66 protection level, corrosion protection level can reach WF2, the surface of the lamp body will never corrode, never rust.
  • Installation mode: It can adopt many kinds of installation modes such as law fence street lamp and guardrail street lamp according to the need.
SPECIFICATIONS
VIDEO INPUT
Rated Voltage AC220V
Power 40W-80W
Protection Level IP66
Light Angle 120°
LED Qty 80pcs
Base Specifications CREE3030
Anti-corrosion Grade WF2
Explosion Proof Grade Ex d IIC T6
Light Efficiency 120Lm/W
Frequency 50/60Hz
Power Factor >0.95PF
Storage Temperature -30°C ~50°C
Light Source LED
Color Temperature 3000K-6500K
Color Rendering Index ≥70RA
LED’S Operating Life 100,000 Hrs
Start-up Time ≤0.2s
Weight 7.6kg
Size (Dia. x H) Ø 230 x 275 (mm)

Wattages Available

MODEL VOLTAGE
VL-EXO-8231-50 50W
VL-EXO-8231-60 60W
VL-EXO-8231-80 80W
VL-EXO-8231-90 90W
Weight 16.8 lbs
Dimensions 9.05 × 9.05 × 10.8 in

VL-EXO-8231-XX Spec Sheet

Download
