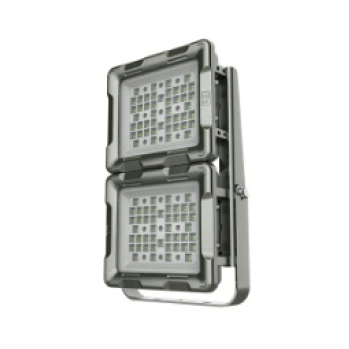

VL-EXS8266-XXX Explosion Proof Flood Lamp

  • Input Voltage: AC100-270V
  • Led Source: Cree
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120 lm/w

Features:

  • Input Voltage: AC100-270V
  • Led Source: Cree
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120 lm/w
  • Anti Corrosion: WF2
  • Weight: 14 KG / 30 LBS
  • Size: 552 X 323 X 190 MM / 21 X 12.7 X 7.4 IN
  • Beam Angle: 5°
  • Ex-proof Grade: ExdIICT6
  • Carton Size: 60.2 × 38.6 × 27.1 CM / 23.7 X 15.1 X 10.6 IN
  • Gross Weight: 18 KG / 39.6 LBS

SPECIFICATIONS

VIDEO INPUT
Rated VoltageAC220 V
Power300-400 W
Frequency50/60 HZ
Light Efficiency120 LM
Power Factor>0.95 PF
Operating Temperature-30~50 °C / -22~122 °F
Storage Temperature-30~50 °C / -22~122 °F
Protection LevelIP66
Lighting Angle90 °
Light SourceLED
Correlate Color Tem- perature3000-6500 K
Color Rendering Index≥70 RA
LED Qty360 PCS
Base SpecificationsCREE3030
LED’S Operating Life100000 H
Start-Up Time≤0.2 S
Anti-Corrosion GradeWF2
Explosion Proof GradeEXDIIB T5
Executive StandardGB3836.1 / GB3836.2
Weight14 KG / 30 LBS
Size552 × 323 × 190 MM / 21 X 12.7 X 7.4 IN

Wattages Available for this Model:

MODELVOLTAGE
VL-EXS8266-240240W
VL-EXS8266-300300W
VL-EXS8266-380380W
