- Support Ultra 265/H.265/H.264 video formats
- 32 channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T and RTSP protocols
- Support HDMI and VGA independent output
- Up to 16 Megapixels resolution recording
- 4 SATA HDD, Up to 8TB for each HDD
- ANR technology enhances storage reliability when the network is disconnected
- Support cloud upgrade

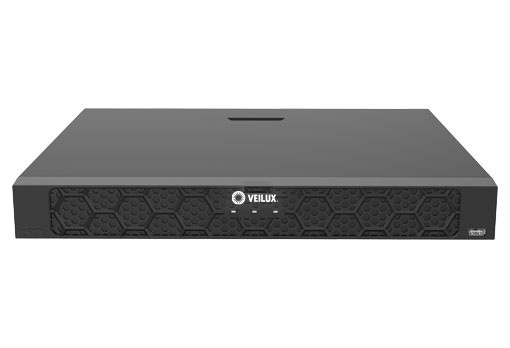

VPRO-NVR-32-4H-U 32 Channel Network Video Recorder with 4 HDD
SKU: VPRO-NVR-32-4H-U
- Support Ultra 265/H.265/H.264 video formats
- 32 channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T and RTSP protocols
- Support HDMI and VGA independent output
- Up to 16 Megapixels resolution recording
- 4 SATA HDD, Up to 8TB for each HDD
| Weight | 7 lbs |
|---|---|
| Dimensions | 17.3 × 13.5 × 1.9 in |
| Number of Channels | 32 Channels |
| Hard Drive Capacity | 4 HDD |
| Recorder Type | Network Video Recorder |
| VIDEO/AUDIO INPUT | |
|---|---|
| IP Video Input | 32-ch |
| Two-Way Audio | 1-ch, RCA (using the audio input and output) |
| NETWORK | |
| Incoming bandwidth | 320Mbps |
| Outgoing bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPV6 |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome (version 45 and above) for Windows Edge(version 79 and above) for Windows |
| VIDEO/AUDIO OUTPUT | |
| HDMI/VGA Output | HDMI: 4K (3840×2160)@30, 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×768@60
VGA: 1920x1080p@60, 1920x1080p@50, 1280×1024@60, 1600×1200@60, 1280×720@60, 1024×768@60 |
| Audio Output | 1-ch, RCA |
| Live View Display | 1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| DECODING | |
| Decoding Format | Ultra 265/H.265/H.264 |
| Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 |
| Audio Compression | G.711A, G.711U |
| SNAPSHOT | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| RECORDING | |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
| SMART | |
| VCA Detection by Camera | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD (Ultra Motion Detection), Video Metadata, Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart by IPC | All channels (up to 8 images/s in total) Vehicle Detection, SIP (Smart Intrusion Prevention), UMD, Video Metadata by camera |
| ALARM | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI LANGUAGE | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| HARD DISK | |
| SATA | 4 SATA interfaces |
| Capacity | Up to 8TB for each disk (the maximum HDD capacity varies with environment temperature) |
| EXTERNAL INTERFACE | |
| Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front: 1 x USB2.0, Rear panel: 1 x USB2.0, 1 x USB3.0 |
| RS232 | N/A |
| RS485 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| GENERAL | |
| Power Supply | 12V DC/5A |
| Power Consumption: | ≤ 20W (without HDD) |
| Working Environment | -10 °C ~ 55 °C (14 °F ~ 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Dimensions (LxWxH) | 440mm × 344mm × 48mm (17.3″ × 13.5″ × 1.9″) |
| Weight (without HDD) | ≤ 3.15Kg (6.94lb) |
