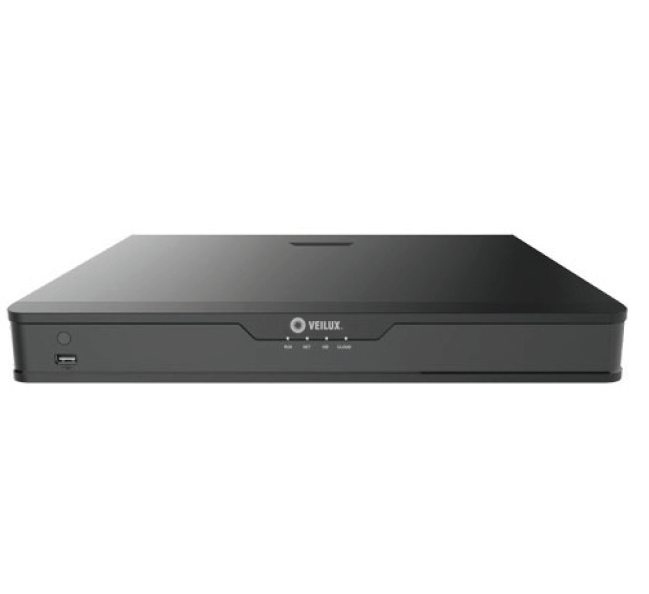

PRO SERIES VPRO-NVR-8-U 8-ch 2 HDDs Network Video Recorder


  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Plug & play with 8/16 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support HDMI and VGA simultaneous output
  • Up to 8 Megapixels resolution recording
  • 2 SATA HDDs, up to 10TB for each HDD

PRO SERIES VPRO-NVR-8-U 8-ch 2 HDDs Network Video Recorder

Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Plug & play with 8/16 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support HDMI and VGA simultaneous output
  • Up to 8 Megapixels resolution recording
  • 2 SATA HDDs, up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
SKU: VPRO-NVR-8-U Categories: , Tags: , , , , , ,
Weight 5.29 lbs
Dimensions 15 × 12.4 × 1.9 in
Recorder Type

Network Video Recorder

Number of Channels

8 Channels

Hard Drive Capacity

2 HDD

VIDEO/AUDIO INPUT
IP Video Input 8-ch
Two-way Audio Input 1-ch, RCA
NETWORK
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
VIDEO/AUDIO OUTPUT








HDMI/VGA Output



HDMI:

4K (3840×[email protected]), [email protected], [email protected],

[email protected], [email protected], [email protected],

[email protected]



VGA:

[email protected], [email protected], [email protected],

[email protected], [email protected]

Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Corridor Mode Screen 3/4/5/7/9
DECODING
Decoding format Ultra 265, H.265, H.264
Live view/ Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x [email protected], 4x [email protected], 5 x [email protected], 8 x 1080P @30
HARD DISK
SATA 2 SATA interfaces
Capacity Up to 10TB for each disk
EXTERNAL INTERFACE
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In 4-ch
Alarm Out 1-ch
POE
Interface 8 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port Max 130W in total
Supported Standard IEEE 802.3af/at
GENERAL
Power Supply 100 ~ 240 V AC

Power Consumption: ≤10W(without HDD)

Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH

(non-condensing)

Dimensions(W×D×H) 380mm ×315mm × 53mm (14.9″ × 12.4″ ×2.1″)
Weight (without HDD) ≤2.6kg (5.29lb)

VPRO-NVR-8-U Spec Sheet

Download
