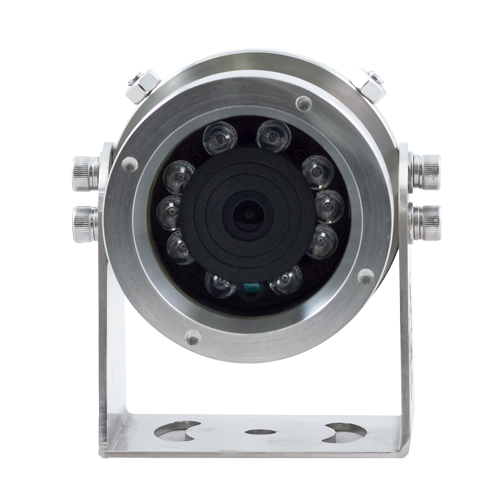

Veilux SVEX-Q25-K Stainless Steel Explosive-proof Camera


In stock

  • SONY 1/3″CMOS Senor CCD
  • IR distance up to 30 meters
  • Special Anti-shock Engineering technology
  • Compact, light weight
  • Specifically designed to meet the transport of dangerous goods vehicles or small areas

Note: This is a special order item. Allow 4-6 weeks for delivery.

The Veilux SVEX-Q25-K Stainless Steel Explosion Proof Camera features a CMOS sensor capable of recording footage in 1280 x 960 resolution. Additionally, the surveillance camera utilizes IR to capture clear footage at nighttime and during low lighting conditions out to 30 meters. Special anti-shock engineering technology keeps the device safe and functioning in the event of impact. Further, the security camera is made of 304 stainless steel for resistance to highly corrosive environments.


  • Adopt SONY 1/3” CMOS Sensor CCD, resolution up to 1280×960 px
  • High quality IR lamp, long service life, low power consumption, lights up to 30 meters
  • Window glass surface is treated with a nano-technology process which strengthens the atomic structure of the glass
  • Efficient light transmittance and a oil/dust/water repellent surface
  • Engineered to dissipate heat this camera can work continuously for an extended period
  • Designed with Anti-shock technology to withstand minor bumps and falls
  • Small size and light weight, this camera is specifically designed for the vehicles that transport dangerous goods or small areas.
  • Made of 304 or 316L stainless steel it is made to withstand highly corrosive or highly explosive environments

Note: This is a special order item. Allow 4-6 weeks for delivery.

Camera Type

IP Rating

Lens Size


IR Lighting Distance




II 2G Ex d IIC T6 Gb

II 2D Ex tb IIIC IP68 T80 Db

Ingress   Protection IP66
Imaging Sensor 1/3 Sony Super HAD CCD II
Signal System PAL/NTSC
Resolution   Ratio 700TVL
Minimal Illumination [email protected], IR lamp Auto-open when <0 Lux
Lens Specifications 4mm, 6mm (optional)
Day/Night Auto switch (ICR)
BLC Backlight Compensation Method On/off
Video output CVBS/1.0Vp-p/75Ω
Electronic   Shutter AUTO/ 1/50 (1/60) -1/100,000sec
SNR > 50db
The White Balance AUTO
IR Distance 10-30M (optional)
IR Switch Auto open <0Lux
Wavelength 850nm
White Balance -40°C ~ 60°C
Relative   Humidity ≀95% (+25°C)
Atmospheric   Pressure 80kpa~106 kpa
Supply Voltage DC12V
Suitable Enviroment Apply to explosive gas and combustible dust environment
Material 304 stainless steel
Inlet   Hole Specifications 14 x 1.5 mm x 1
External Dimensions 140 x 92 x 104 (mm)
Installation   Method Fixed Bracket , Pillar Base

SVEX-Q25-K Specs Sheet
