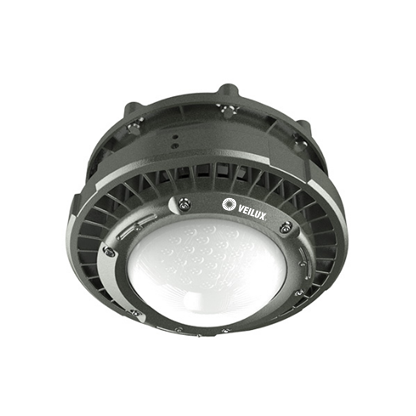

VL-EX8232S-XXX Explosion Proof Short Flood Light

  • LED Light Source
  • Available in 100W,120W and 150W
  • Explosion proof rated IP66
  • Easy to install and operate

MODELS AVAILABLE

MODEL VOLTAGE
VL-EX8232S-100 100W
VL-EX8232S-120 120W
VL-EX8232S-150 150W

FEATURES

  • Configuration: Using imported LED light source, the average service life is approximately 100,000 hours. The power supply uses a wide voltage process which maintains a constant current output, has short circuit and over voltage protection functions which can prolong the service life of these lamps.
  • Heat dissipation: The structure design of the upper and lower ventilation is made to improve the heat dissipation performance and avoids dust accumulation in conventional LED radiators.
  • Distribution of light: using high precision, high permeability, optical lens, light projection distance more far and stronger illumination, suitable for all kinds of places such as the need for ultra-long projection lights.
  • Protection: IP66 protection level, corrosion protection level can reach WF2, the surface of the lamp body will never corrode, never rust.
  • Installation mode: Top ceiling, suspension ceiling, bent bar, vertical bar and other installation modes can be adopted as required.
  • Inlet port: Series and parallel connection of lamps and lanterns can be realized by adopting double inlet design. Separation design of power supply cavity and wiring cavity has great assembly space, which makes the installation and wiring more safe and convenient, and the heat dissipation performance is more prominent.

SPECIFICATIONS

Rated Voltage AC220V
Power 100-150W
Frequency 50/60HZ
Light
Efficiency
120 lm
Power Factor >0.95 pf
Operating
Temperature
-30°C~50°C / -22°F~122°F
Storage
Temperature
-30°C~50 °C / -22°F~122°F
Protection
Level
IP66
Lighting
Angle
90°/120°
Light Source LED
Correlate
Color Temperature
3000-6500 k
Color
Rendering Index
≥70 ra
LED Qty 155 pcs
Base
Specifications
CREE3030
LED’S
Operating Life
50000 h
Start-Up
Time
≤0.2 s
Anti-Corrosion
Grade
WF2
Explosion
Proof Grade
ExdIICT6W
Executive
Standard
GB3836.1 / GB3836.2
Weight 6.8 kg / 14.9 lbs
Size 307 x 262 mm /
12″ x 10″ in.
