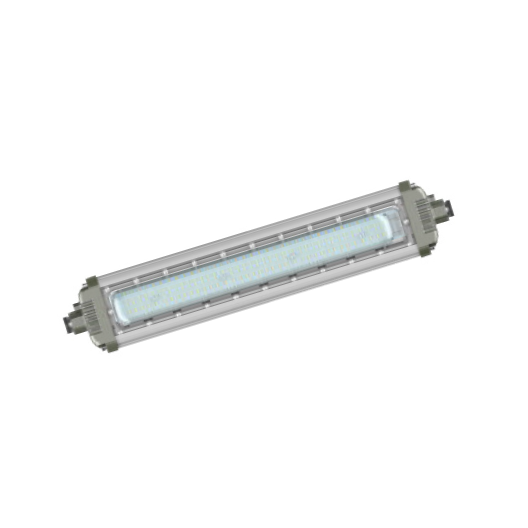

VL-EXLED51LL Explosion-proof LED Linear Light


  • LED Lights
  • Average service life about 10,000 hrs
  • Designed to dissipate heat
  • Anti-glare hardened glass
  • IP66 ingress protection level
  • Easy installation
  • Can work as a series or parallel connection.

Note: This is a special order item. Allow 4-6 weeks for delivery.

VL-EXLED51LL Explosion-proof LED Linear Light:

  • Configuration: Using imported LED light source, the average service life is as long as 100,000 hours. The power supply supports wide voltage processing, ensuring a constant current Short circuit and over voltage protection functions protect the unit which will prolong the service.
  • Heat dissipation: The radiator uses an integrated streamlined structure, to better increase heat The radiator is arranged in an internal and external circular array to improve heat dissipation performance.
  • Anti-glare: The hardened glass cover (available in: transparent or frosted) anti-impact, anti-glare, uniform light output to minimize/eliminate shadows. Light transmittance up to 95% – 98%, making this light suitable for various low-roof, platform, high-roof and other places as fixed lighting.
  • Protection: IP66 protection level, corrosion protection level can reach WF2, the surface of the lamp body will never corrode or rust.
  • Installation mode: Top ceiling, suspension ceiling, bent bar, vertical bar and other installation modes can be adopted as
  • Inlet port: Series and parallel connection of lamps and lanterns can be achieved by utilizing double inlet



Note: This is a special order item. Allow 4-6 weeks for delivery.

Weight 9.0 lbs
Dimensions 25 × 4.92 × 33.01 in
Lighting Type

Rated Voltage 220 V
Power 20W to 60W
Protection Level IP66
Lighting Angle 112°
Light Source LED
LED Quantity 180 PCS
LED Operation Life 100000 HRS
Anti-Corrosion Grade WF2
Explosion Proof Grade Ex d IIC T6
Light Efficiency 120 Lm/W
Frequency 50/60 HZ
Power Factor >0.95 PF
Operating Temperature -30~50 °C / -22~122 °F
Correlate Color Temperature 3000K – 6500K
Color Rendering Index ≥70 RA
Start-up Time ≤0.2s
Executive Standard GB3836.2, GB3836.9
Size 635 x 125 x 77 (mm)
Weight 4.1 kg

VL-EXLED51LL Spec Sheet

Download
