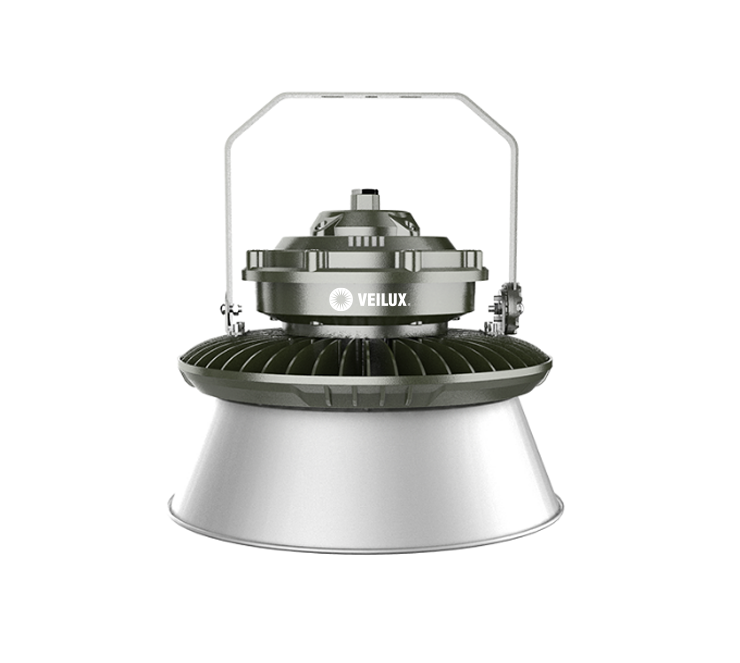

VL-EXL8235-XXX 150W-240W Ex-proof Long High Bay Light


  • Input Voltage: AC100-270v
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120 LM/W
  • Anti Corrosion: WF2

Note: This is a special order item. Allow 4-6 weeks for delivery.

VL-EXL8235-XXX 150W-240W Ex-proof Long High Bay Light

Features:

  • Input Voltage: AC100-270v
  • Led Source: Cree
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120 LM/W
  • Anti Corrosion: WF2
  • Weight: 4.6 KG / 10.1 LBS
  • Size: 356 X 232 MM / 14 X 9.1 IN
  • Beam Angle: 4°
  • Ex-proof Grade: ExdIICT6
  • Carton Size: 38.5 × 44.5 × 31.5 CM / 15.1 X 17.5 X 12.4 IN
  • Gross Weight: 5.6 KG / 12.3 LBS

Models Available:

MODEL VOLTAGE
VL-EXS8235-100 100W
VL-EXS8235-120 120W
VL-EXS8235-150 150W

Note: This is a special order item. Allow 4-6 weeks for delivery.

Weight 19.1 lbs
Dimensions 356 × 356 × 232 in
Lighting Type

SPECIFICATIONS
VIDEO INPUT
Rated Voltage AC220 V
Power 100-150 W
Frequency 50/60 HZ
Light Efficiency 120 LM
Power Factor >0.95 PF
Operating Temperature -30~50 °C / -22~122 °F
Storage Temperature -30~50 °C / -22~122 °F
Protection Level IP66
Lighting Angle 95 °
Light Source LED
Correlate Color Tem- perature 3000-6500 K
Color Rendering Index ≥70 RA
LED Qty 150 PCS
Base Specifications CREE3030
LED’S Operating Life 100000 H
Start-Up Time ≤0.2 S
Anti-Corrosion Grade WF2
Explosion Proof Grade EXDIICT6W
Executive Standard GB3836.1 / GB3836.2
Weight 8.7 KG / 19.1 LBS
Size 356 × 232 MM / 14 X 9.1 IN

VL-EXL8235-XXX Spec Sheet

Download

VL-EXL8235-XXX Spec Sheet
