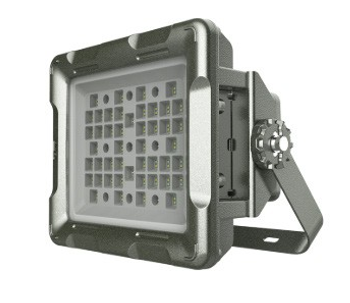

VL-EXMP-8260-XXX Explosion Proof Flood Lamp

  • Input Voltage: AC100-270 V
  • LED Source: Cree
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120 LM/W

Features:

  • Input Voltage: AC100-270 V
  • Led Source: Cree
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120 LM/W
  • Anti Corrosion: WF2
  • Weight: 8.9 KG / 19.6 LBS
  • Size: 374 X 276 X 171 MM / 14.7 X 10.8 X 6.73 IN
  • Beam Angle: 5°
  • Ex-proof Grade: ExdIICT6
  • Carton Size: 39.5 × 35 × 21.5 CM / 15.5 X 13.7 X 8.4 IN
  • Gross Weight: 10 KG / 22 LBS

Specifications:

Luminous Efficacy 120 LM/W
CRI 75 Ra
Lamp Luminous Flux 1200 LM
IP Rating IP66
Working Lifetime (Hr) 100000
Working Temperature -30°C – 50°C
Certification CCC, ce, EMC, FCC, LVD, RoHS, Saa
Light Source LED
Driver DONE / O-srams
Warranty 3 Years / 5 Years
Ex Code Ex d IIC T6
Ip Grade IP66
Certificates ATEX, CE, ROHS
Dimensions 395 x 350 x 215 mm / 15.6″ x 13.8″ x 8.5″ in.
Weight 10kg / 2.2 lbs
Lamp Luminous Efficiency 120 LM/W
Input Voltage AC100-240V
Lamp Power 100
Selling Units Multiple of 4
Package Size 40 x 35 x 22 cm / 15.7″ x 13.8″ x 8.7″ in.

Other wattages available:

MODEL VOLTAGE
VL-EX8260-80100 80-100W
VL-EX8260-120 120W
VL-EX8260-150 150W
VL-EX8260-190 190W

VL-EXMP-8260-XXX Spec Sheet

Download

VL-EXMP-8260-XXX Spec Sheet
