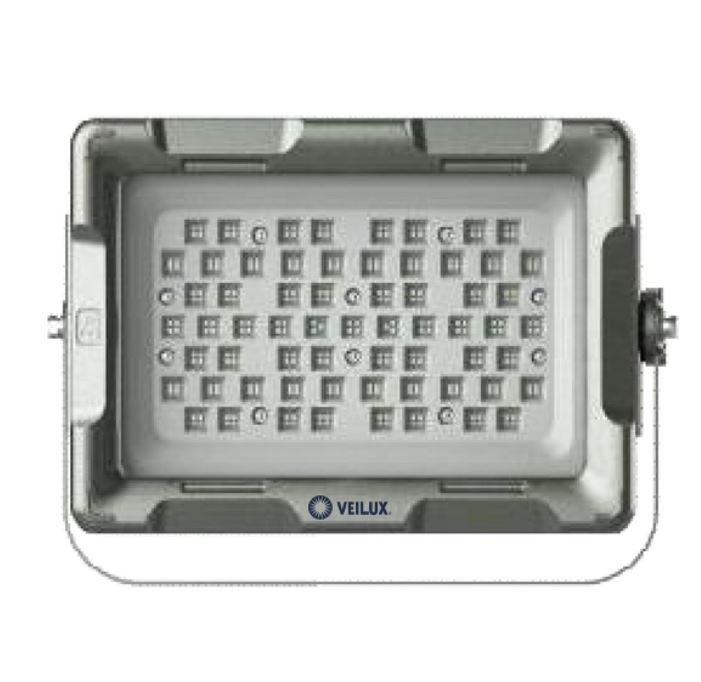

VL-EX8260LG LED Explosion-proof Large Flood Light

  • LED light source
  • Heat dissipation
  • Light projection is even and soft
  • IP66, and the anti-corrosion level can reach WF2

VL-EX8260LG LED Explosion-proof Large Flood Light

  • Configuration: It adopts imported LED light source, with an aver- age service life of up to 100,000 hours. The power supply adopts wide voltage processing, which can realize constant current out- put, and has short-circuit and over-voltage protection functions, which greatly prolongs the service life of the
  • Heat dissipation:explosion-proof electrical box and lamp holder double cavity design, large space size to ensure the assembly of various large-scale electrical appliances. Excellent heat dissipation performance, so that the LED chip and power supply temperature rise is reasonably controlled within a reasonable range, greatly ensuring the service life of the lamp .
  • Light distribution: light projection is even and soft, especially suitable for all kinds of need to cast light, floodlights as a fixed
  • Protection: The protection level of the lamp body is IP66, and the anti-corrosion level can reach WF2. The surface of the lamp body will never corrode and never rust.
  • Installation method: Various installation methods such as ceiling, suction wall and U-shaped anti-vibration bracket (angle adjustable) can be used as

Rated Voltage 220V
Power 200-280W
Protection Level IP66
Lighting Angle 90˚
LED Qty 250 pcs
Base Specifications CREE3030
Anticorrosion Grade WF2
Explosion Proof Grade Ex demb IIC
Light Efficiency T6
Frequency 120 Lm/W
Power Factor 50/60 Hz
Operating Temperature >0.95 PF
Storage Temperature -30˚C ~ 50˚C
Light Source -30˚C ~ 50˚C
Correlate Color Temperature LED
Color Rendering Index 3000-6500 K
LED’s Operating Life ≥70 Ra
Start-Up Time 100000s
Executive Standard ≤0.2s
Weight 12.5 Kg
Size 472×315×165 (mm)

VL-EX8260LG Spec Sheet
