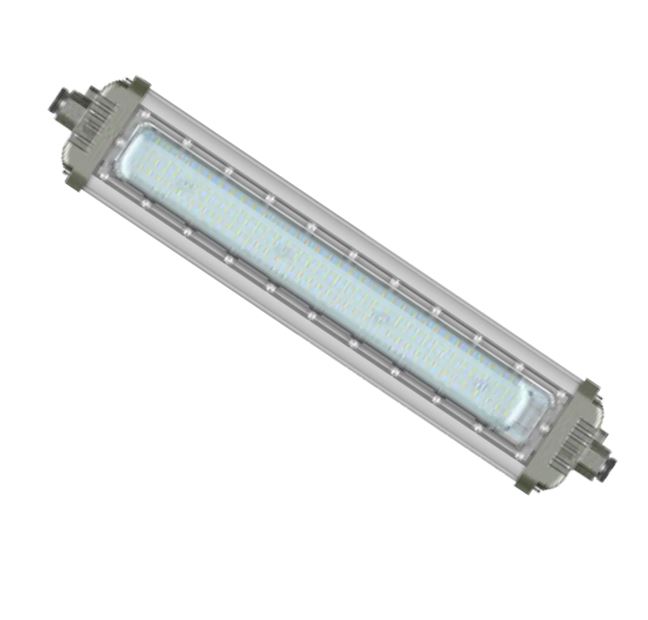

VL-EXLED52-1LL Explosion-proof LED Linear Light


  • LED light source
  • Heat dissipation
  • Anti-glare: toughened glass cover
  • IP66 protection level

VL-EXLED52-1LL Explosion-proof LED Linear Light

  • LED light source, the average service life is as long as 100,000 hours. The power supply adopts wide voltage processing, maintains constant current output, has short circuit and surge protection functions, which can help prolong the service life of lamps and lanterns.
  • Heat dissipation: The radiator features an integrated streamlined structure,to better increase heat conduction. The radiator is designed in an internal and external circular array to improve its heat dissipation performance.
  • Anti-glare: toughened glass cover (transparent and frosted options) anti-impact, anti-glare, uniform and soft light to minimize shadows, transmittance up to 95%- 98%, suitable for various low-roof, platform, high-roof, high-roof and other places as fixed lighting.
  • Protection: IP66 protection level, corrosion protection level can reach WF2, the surface of the lamp body will never corrode, never rust.
  • Installation mode: Top ceiling, suspension ceiling, bent bar, vertical bar and other installation modes can be adopted as required.
  • Inlet port: Series and parallel connection of lamps and lanterns can be realized by adopting double inlet design.
Lighting Type

Materials

Rated Voltage AC220V
Power 20-60W
Protection Level IP66
Lighting Angle 112˚
LED Qty 180 pcs
Anti-corrosion Grade WF2
Explosion-proof Grade Ex d IIC T6
Light Efficiency 120
Frequency 50/60
Power Factor >0.95
Operating Temperature -30˚C ~ 50˚C
Storage Temperature -30˚C ~ 50˚C
Light Source LED
Correlate Color Temperature 3000K – 6500K
Color Rendering Index ≥70 Ra
LED’S Operating Life 100000 Hrs
Start-up Time ≤0.2s
Executive Standard GB3836.2, GB3836.9
Weight 4.1 Kg
Size 635 x 125 x 77 (mm)

VL-EXLED52-1LL Spec Sheet

Download
