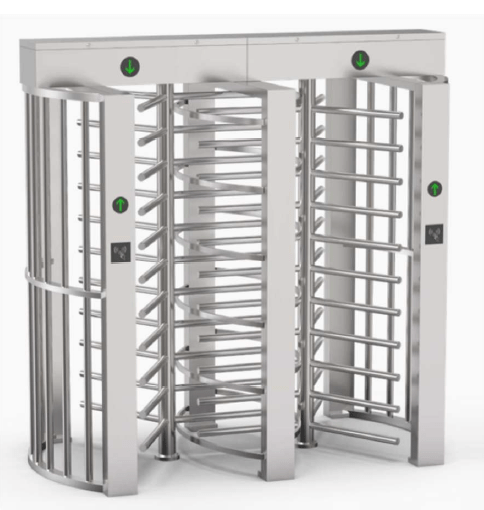

VTU-D412 Full Height Turnstile – Explosion-Proof

SKU: VTU-S312-1

• Manually Control Entry Direction
• 2080mm High Inner Space
• 304SS Waterproof
• 90°/120° Rotor Optional (three or four sections)
• Anti-trailing Function: one person can pass at one time

VTU-D412 Stainless Steel Full Height Turnstile:   Features: • Two way or one way working • 304 brushed stainless steel, durable and antirust • The movement with absorber structure, making the product operate very quietly • Support integrated with any type of access control systems • Anti-tailing function: only one person passes at one time • Structure of trunking to contain cable tidy inside the case • Green and red LED indicator display passing status • IP65 waterproof level, indoor/outdoor use • Fire safety requirements, arms open automatically • Entry direction can be controlled manually through lock

Certifications & Standards: NFPA 70 — National Electrical Code (NEC) · IECEx International Certification System · EU ATEX Directive 2014/34/EU

Full for Hazardous Locations

This full from Veilux is designed for demanding industrial environments. Built to exacting standards, it delivers reliable performance for security and monitoring applications in challenging conditions.

Explore the full Veilux range of explosion-proof security cameras for your industrial security requirements.

Certifications & Compliance Standards

This full complies with international safety standards including ATEX Directive 2014/34/EU for European hazardous area equipment and IECEx system certification for global acceptance. The product meets NEC Article 500 classification requirements for Class I Division 1 and Division 2 hazardous locations in North America, ensuring safe operation in environments containing flammable gases and vapors. All certifications are maintained through regular third-party audits by accredited testing laboratories.

Industrial Applications

Designed for the most demanding industrial environments, this full is used in oil and gas refineries, petrochemical processing facilities, chemical manufacturing plants, pharmaceutical production areas, offshore platforms, and underground mining operations. It delivers reliable performance in Zone 1 and Zone 2 areas under IEC 60079, and in Class I Division 1 and Division 2 locations per NFPA 70. Facility managers and HSE engineers rely on Veilux full solutions to maintain safety and security in hazardous environments without compromising operational efficiency.

Why Choose Veilux?

Veilux has over 15 years of expertise designing explosion-proof security and monitoring equipment for hazardous environments. Our engineering team works directly with oil and gas operators, safety engineers, and facility managers to develop products that meet the most stringent safety and performance requirements. Every Veilux full is backed by comprehensive technical support, detailed installation documentation, and global certification coverage to simplify procurement and compliance verification for international projects.

SKU: VTU-S312-1 Categories: , Tags: , , ,

Specifications:

Specifications
Model No. VTU-D412
Type Full Height Turnstile
Framework Material 304 Stainless Steel
Dimension 2200 * 1250 * 2300mm
Inner Height 2080mm
Net Weight 350kg/pcs
Passage Width 675mm/lane
Passing Direction Single directional / Bi-directional
MCBF 10 million
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 40W
Operation Temperature -15 °C – 60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor
Flow Rate 30 people per minute


LED Indicator

Two LED indicators on top: green → entry, red × no entry
