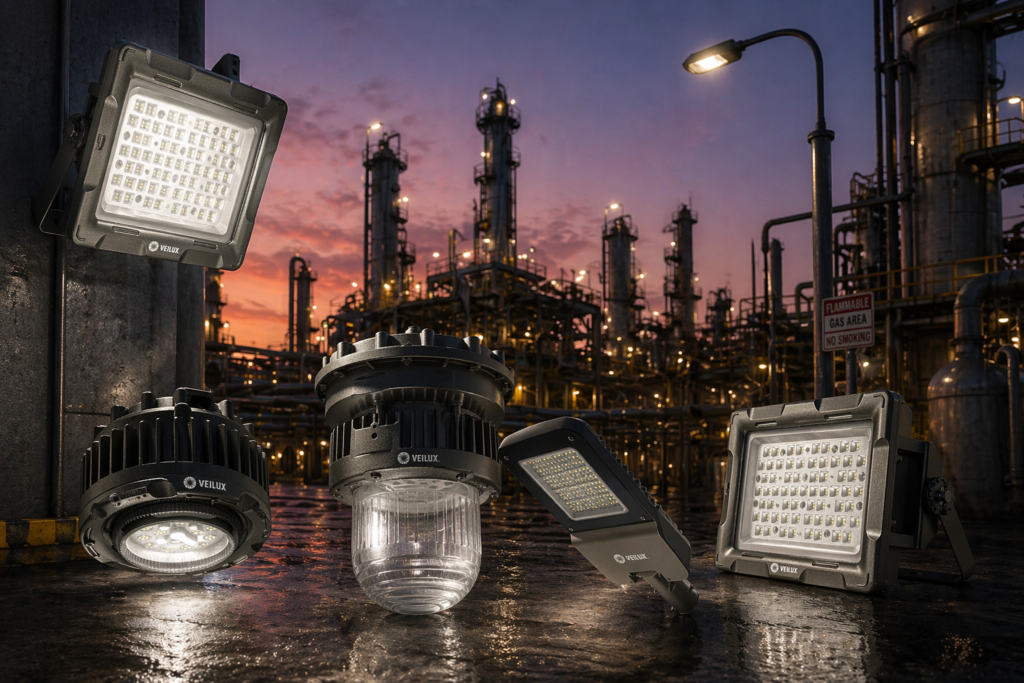

Refinery lighting selection requires matching explosion-proof fixtures to the Class I Division 1 or Division 2, Group D (or Group C for H2S areas), T3 or T4 conditions common across processing units — while meeting the footcandle requirements for safe operation and OSHA compliance. This guide identifies the best explosion-proof LED light types for each refinery area, from process units and tank farms to control rooms and maintenance facilities.
Refinery Area Lighting Requirements
| Refinery Area | NEC Classification | Recommended Fixture | Target Footcandles |
|---|---|---|---|
| Process unit (distillation, cracking) | C1D1/C1D2, Group D, T3 | High-bay LED 100W–200W | 20–30 fc at grade |
| Pump alleys and pipe racks | C1D1, Group D, T3 | Linear LED or flood | 10–20 fc |
| Tank farm (floating roof tanks) | C1D1 near vents, C1D2 general | Flood LED 100W–200W | 5–10 fc area, 20 fc access |
| Loading/unloading racks | C1D1, Group D | High-bay or flood LED | 20–50 fc at work level |
| H2S sour water/amine units | C1D1, Group C (H2S) | Group C/IIB certified high-bay | 20–30 fc |
| Control room (non-classified) | Non-hazardous | Standard LED troffer | 50 fc minimum |
| Maintenance workshops | Non-hazardous (typically) | Standard high-bay LED | 50 fc |
| Flare stack base area | C1D2, Group D | Flood LED, C1D2 rated | 5–10 fc perimeter |
High-Bay LED Fixtures for Process Units
Process unit areas — distillation columns, heat exchangers, reactors — are typically classified C1D1 Group D with ceiling or structure heights of 25–40 feet. High-bay explosion-proof LED fixtures in the 100W–200W range are the standard solution. Key selection criteria for process unit high bays:
- Certification: ATEX/IECEx 844 Class I Division 1, Group D minimum. Group C certification preferred for facilities with H2S service areas to simplify stock management.
- T-code: T3 (200°C max) covers all Group D substances. T4 preferred for future-proofing.
- IP rating: IP65 minimum for indoor process units; IP66 for outdoor or semi-outdoor structures subject to rain or steam cleaning.
- Lumen output: 12,000–20,000 lumens for 30-foot mounting height to achieve 20–30 footcandles over a 20×20 ft area.
- Material: Copper-free die-cast aluminum (less than 0.1% copper) or 316L stainless steel for H2S-rich environments.
Floodlights for Tank Farms and Outdoor Areas
Tank farm areas present a mixed classification: Class I Division 1 within 5 feet of tank vents and within 3 feet of floating roof seals; Class I Division 2 extending to 10 feet from vents and 10 feet from roof seals. Floodlights mounted on structures or lighting poles outside the Division 1 area can provide coverage of Division 1 zones with properly rated fixtures.
For typical refinery tank farm lighting poles positioned 50–80 feet from tank shells:
- 150W–300W explosion-proof LED floodlights achieve 5–10 footcandles at tank grade level
- Multiple luminaires per pole provide overlapping coverage and eliminate dark spots
- Pole-mounted fixtures in C1D2 areas must be Division 2-rated minimum; C1D1-rated fixtures provide greater compliance margin
- Choose 5000K–5700K color temperature for improved contrast and anomaly detection on tank surfaces
Loading Rack Lighting
Loading and unloading racks are typically classified C1D1 Group D (liquid hydrocarbons) with overhead structures at 15–25 feet. Recommended approach: explosion-proof high-bay or floodlight LEDs mounted on the rack structure, with conduit runs in rigid metal conduit with EYS seals at every explosion-proof enclosure. Target 30–50 footcandles at the dome area to support safe tank car and truck loading operations per API RP 2003 and NFPA 30 requirements.
Energy Savings Calculation: LED vs. Metal Halide
A typical 100-light refinery process unit converting from 400W metal halide to 150W LED fixtures:
| Parameter | Metal Halide (400W) | LED Replacement (150W) |
|---|---|---|
| Fixture wattage | 400W + 15W ballast = 415W | 150W |
| 100 fixtures, annual energy (8,760 hr) | 363,540 kWh | 131,400 kWh |
| Energy cost at $0.10/kWh | $36,354/yr | $13,140/yr |
| Annual savings | $23,214/yr | |
| Lamp replacement (every 2 yrs, $150/lamp incl. labor) | $7,500/yr | ~$0 (50,000 hr life) |
| Total annual operating savings | ~$30,714/yr | |
For explosion-proof applications, each lamp replacement in a C1D1 area requires a hot work permit, hazardous area entry procedures, and lock-out/tag-out — adding $200–$500 per lamp replacement in labor and compliance costs beyond the lamp cost itself. LED’s 50,000-hour life essentially eliminates this recurring cost.
See: Explosion-Proof Lighting for Oil and Gas | Explosion-Proof Floodlights | Explosion-Proof Bay Lights
Frequently Asked Questions
What type of explosion-proof lighting is best for refinery process areas?
High-bay LED fixtures rated Class I Division 1 Group D T3 or T4 for overhead mounting at 25–40 feet. For outdoor areas (tank farms, loading racks), explosion-proof floodlights in the 100W–300W range. Linear LED fixtures for pipe racks, pump alleys, and process corridors where directional or elongated coverage is needed.
How many lumens does a refinery work area need?
ANSI/IES RP-7 and OSHA 29 CFR 1910.303 specify 5–10 footcandles for general industrial areas, 20–30 footcandles for active work areas, and 50–100 footcandles for detail inspection work. At 30-foot mounting height, a 150W explosion-proof LED delivering 18,000 lumens achieves approximately 20 footcandles over a 30×30 ft coverage area.
What wattage LED replaces a 400W metal halide in a refinery?
A 100W–150W explosion-proof LED typically replaces a 400W MH fixture. LED efficacy of 110–140 lm/W versus MH efficacy of 70–90 lm/W (end of life) enables a 3:1 to 4:1 wattage reduction. Verify lumen output at installation height against required footcandle levels — don’t rely on wattage comparisons alone.
How long do explosion-proof LEDs last in refinery environments?
50,000–100,000 hours (L70) in typical refinery environments — 5 to 11 years at continuous operation. Key life-limiting factors are ambient temperature (high ambient shortens LED driver lifespan), vibration from rotating equipment, and chemical exposure. Specify quality 316L stainless or marine-grade aluminum housings to maintain IP rating integrity over the fixture life.
